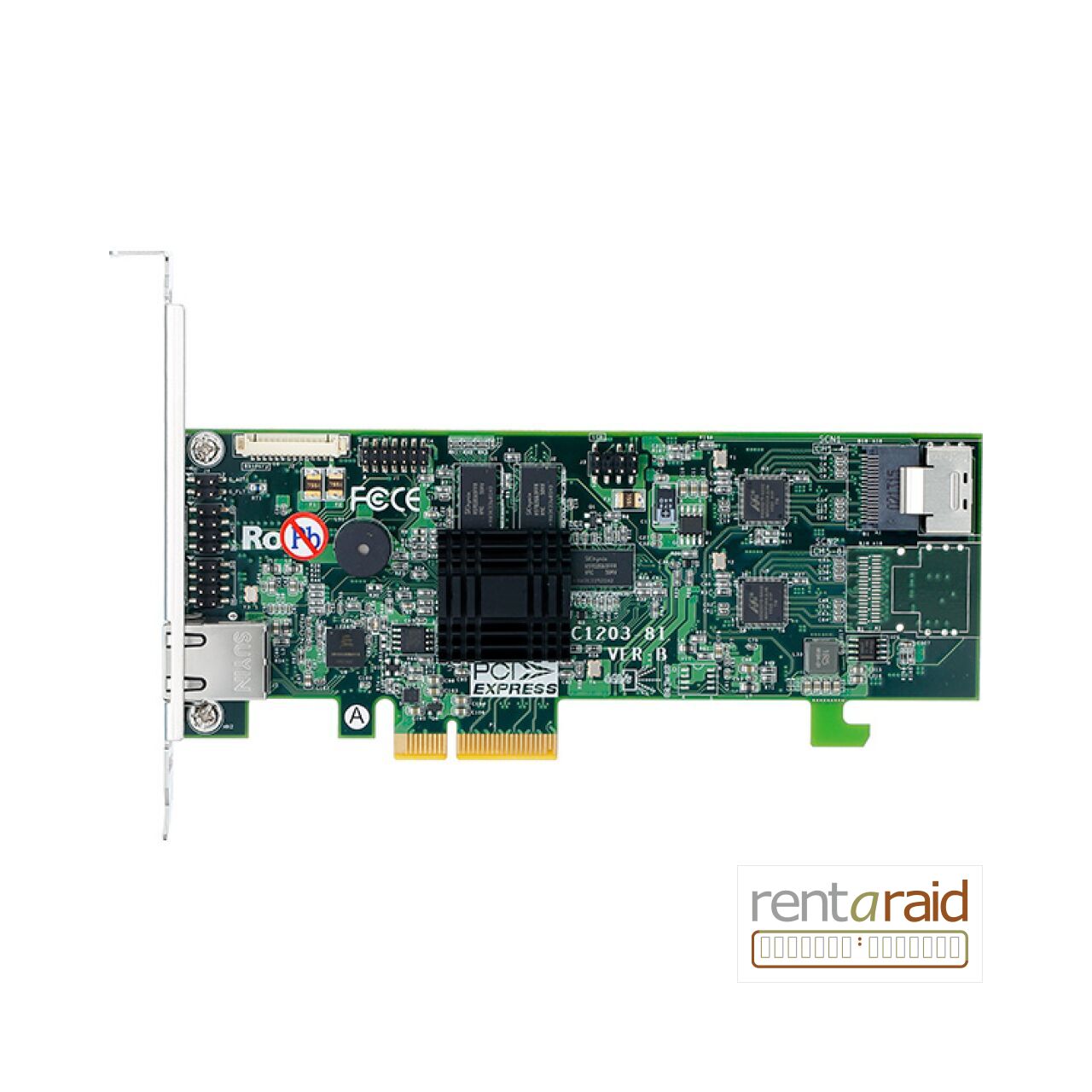

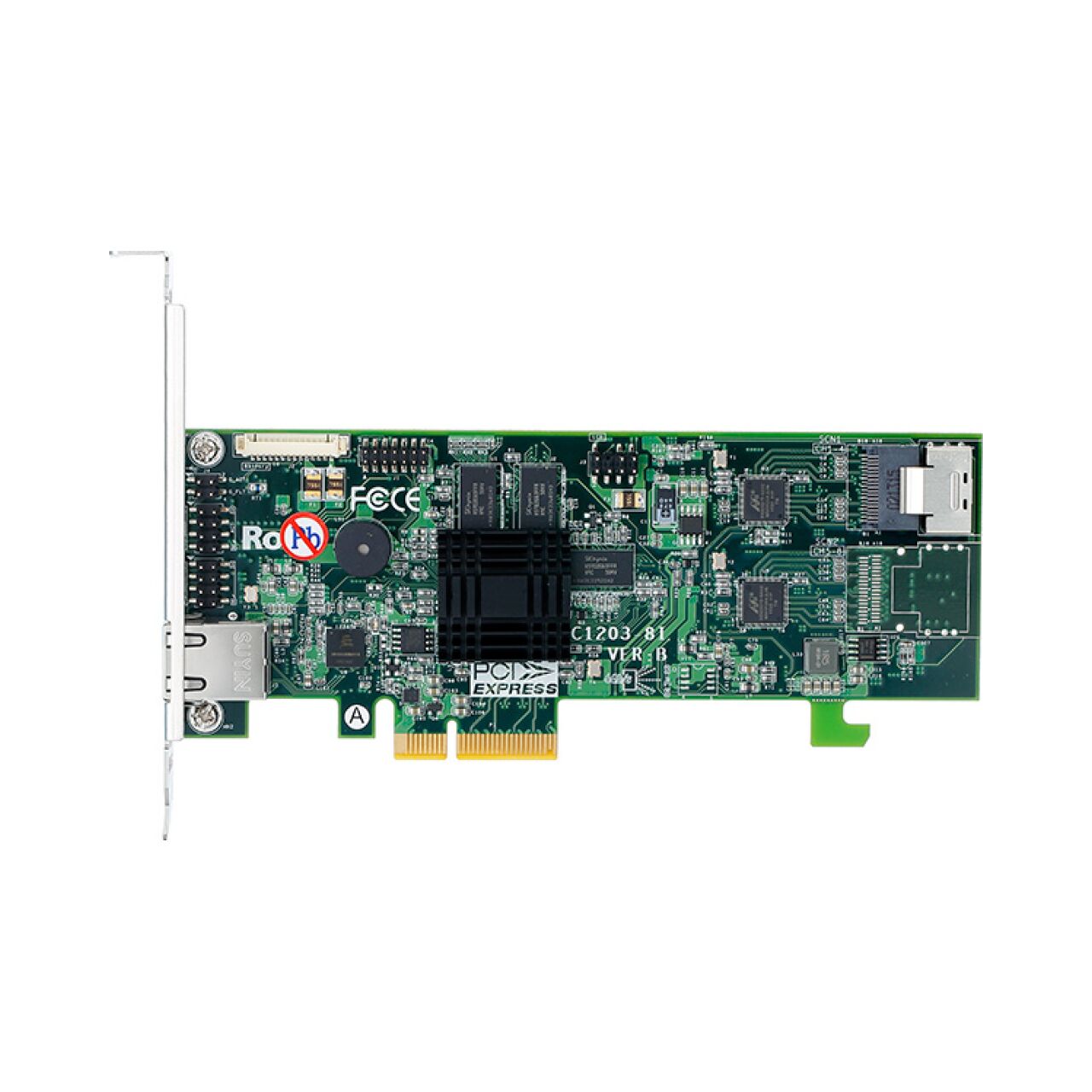

Areca ARC-1203-4i
Areca ARC-1203-4i
4-Port Internal 6Gb/s SATA Hardware RAID Adapter With PCIe 2.0 x4, 1GB ECC Cache And SFF-8087 Connectivity
The Areca ARC-1203-4i is a four-port internal hardware RAID adapter for SATA HDDs and SSDs, combining a PCIe 2.0 x4 host interface with four 6Gb/s SATA device channels through a single internal SFF-8087 connector.
A dedicated 1066 MHz ARM-based storage processor and 1GB of DDR3-1066 ECC-protected cache offload RAID processing from the host CPU. The controller supports a broad range of RAID modes including RAID 0, 1, 10/1E, 3, 5, 6, 30, 50, 60, JBOD and Single Disk.
Designed for workstations, servers, surveillance, media production and other storage-intensive systems, the ARC-1203-4i also provides online RAID migration and expansion, hot-spare support, SMART monitoring, SGPIO enclosure management and optional battery-backed cache protection.
- Four internal 6Gb/s SATA drive channels
- PCIe 2.0 x4 host interface
- 1GB DDR3-1066 ECC cache
- RAID 0, 1, 10/1E, 3, 5, 6, 30, 50, 60, JBOD and Single Disk support
- Single internal SFF-8087 miniSAS connector
Category: SAS/SATA RAID PCIe Cards
Brand: Areca Technology
Original price was: £ 393.02.£ 324.95Current price is: £ 324.95. | £ 389.94 inc VAT
Please Call Us For Availability Of This Item
We’re the UK’s #1 Areca Reseller!
We pride ourselves on knowing, selling and supporting Areca RAIDs & Controllers better than anyone else in the UK!
All our Areca RAIDs ship pre-configured & tested (RAID5 or RAID6, for Mac or PC). Please allow us 1-2 days to do this for you for free.
Seen a better price elsewhere? Let us know & we’ll do our best so you also benefit from our Areca knowledge, expertise & totally free after-sales support.
– The UK’s Areca RAID Experts!
Areca ARC-1203-4i Product Overview
The Areca ARC-1203-4i is a low-profile four-port internal SATA hardware RAID controller designed for systems requiring dedicated RAID processing, data protection and flexible storage management.
It connects to the host through PCIe 2.0 x4 and supports up to four SATA HDDs or SSDs at up to 6Gb/s per port. A dedicated 1066 MHz storage I/O processor and 1GB DDR3-1066 ECC cache handle RAID operations independently of the host CPU.
Four-Port 6Gb/s SATA Connectivity
The ARC-1203-4i provides four internal SATA channels through one SFF-8087 connector. It supports up to four SATA HDDs or SSDs, including native 4K and 512-byte sector devices.
Hardware RAID Processing
The controller supports RAID 0, RAID 1, RAID 10/1E, RAID 3, RAID 5, RAID 6, RAID 30, RAID 50, RAID 60, JBOD and Single Disk configurations. Hardware RAID processing is handled by the dedicated storage processor with ECC-protected cache.
Online RAID Management
RAID features include online array roaming, RAID-level and stripe-size migration, online capacity expansion, simultaneous capacity and RAID-level migration, volume-set growth, configurable stripe sizes up to 1MB, global and dedicated hot spares, automatic drive detection and rebuilding, and background initialization.
Drive Monitoring And Data Protection
The ARC-1203-4i supports SMART monitoring, scheduled volume checking, self-encrypting drive management, SSD automatic monitor cloning, HDD firmware updates and RAID data verification. SGPIO and serial-bus enclosure management are supported for compatible chassis and backplanes.
Cache Protection And Management
Write-through and write-back cache modes are supported, together with configurable read/write cache allocation. An optional Areca battery backup module can protect unwritten cache data during a power interruption.
Management options include McBIOS, browser-based McRAID Storage Manager, command-line tools and ArcSAP, with monitoring and notification through activity/fault indicators, alarm buzzer, SMTP and SNMP.
Areca ARC-1203-4i Key Features
- 4-port internal 6Gb/s SATA hardware RAID controller
- PCIe 2.0 x4 host interface
- 1 x internal SFF-8087 connector
- Supports up to four SATA HDDs or SSDs
- Up to 6Gb/s transfer rate per drive port
- 1066 MHz ARM-based storage I/O processor
- 1GB DDR3-1066 SDRAM cache with ECC protection
- Write-through and write-back cache support
- RAID 0, RAID 1, RAID 10/1E, RAID 3, RAID 5 and RAID 6
- RAID 30, RAID 50 and RAID 60 support
- JBOD and Single Disk support
- Configurable stripe size up to 1MB
- Online RAID-level and stripe-size migration
- Online capacity expansion and volume-set growth
- Global and dedicated hot-spare support
- Automatic drive insertion/removal detection and rebuilding
- Native 4K and 512-byte sector SATA device support
- Self-encrypting drive management
- SMART drive-status monitoring
- SGPIO and serial-bus enclosure management
- Optional battery backup module support
- Redundant firmware flash image
- McRAID, McBIOS, CLI and ArcSAP management
- Low-profile PCIe card form factor
Areca ARC-1203-4i Technical Specifications
| Manufacturer | Areca Technology |
| Model / Manufacturer Part Number | ARC-1203-4i |
| Product Type | 4-port internal 6Gb/s SATA hardware RAID adapter |
| RAID-on-Chip Processor | ARM-based 1066 MHz storage I/O processor |
| Cache Memory | 1GB DDR3-1066 SDRAM with ECC protection |
| Cache Modes | Write-through and write-back |
| Host Bus Interface | PCIe 2.0 x4 |
| Drive Connector | 1 x internal SFF-8087 |
| Drive Ports | 4 x internal 6Gb/s SATA |
| Maximum Drives | 4 |
| Supported Drives | SATA HDDs and SSDs |
| Data Transfer Rate | Up to 6Gb/s per port |
| RAID Levels / Modes | RAID 0, 1, 10/1E, 3, 5, 6, 30, 50, 60, JBOD and Single Disk |
| Maximum Stripe Size | 1MB |
| Sector Support | Native 4K and 512-byte sector SATA devices |
| Self-Encrypting Drive Support | Yes |
| Hot Spare Support | Global and dedicated |
| Enclosure Management | SGPIO and serial bus |
| Battery Backup | Optional Areca BBM supported |
| Firmware Protection | Redundant flash image |
| Management | McRAID Storage Manager, McBIOS, CLI, ArcSAP |
| Monitoring / Notification | Activity/fault monitoring, alarm buzzer, SMTP, SNMP |
| Form Factor | Low-profile PCIe card |
| Dimensions | 168 x 64.4 mm |
| Typical Power Dissipation | 10W |
| Regulatory Certification | CE, FCC |
