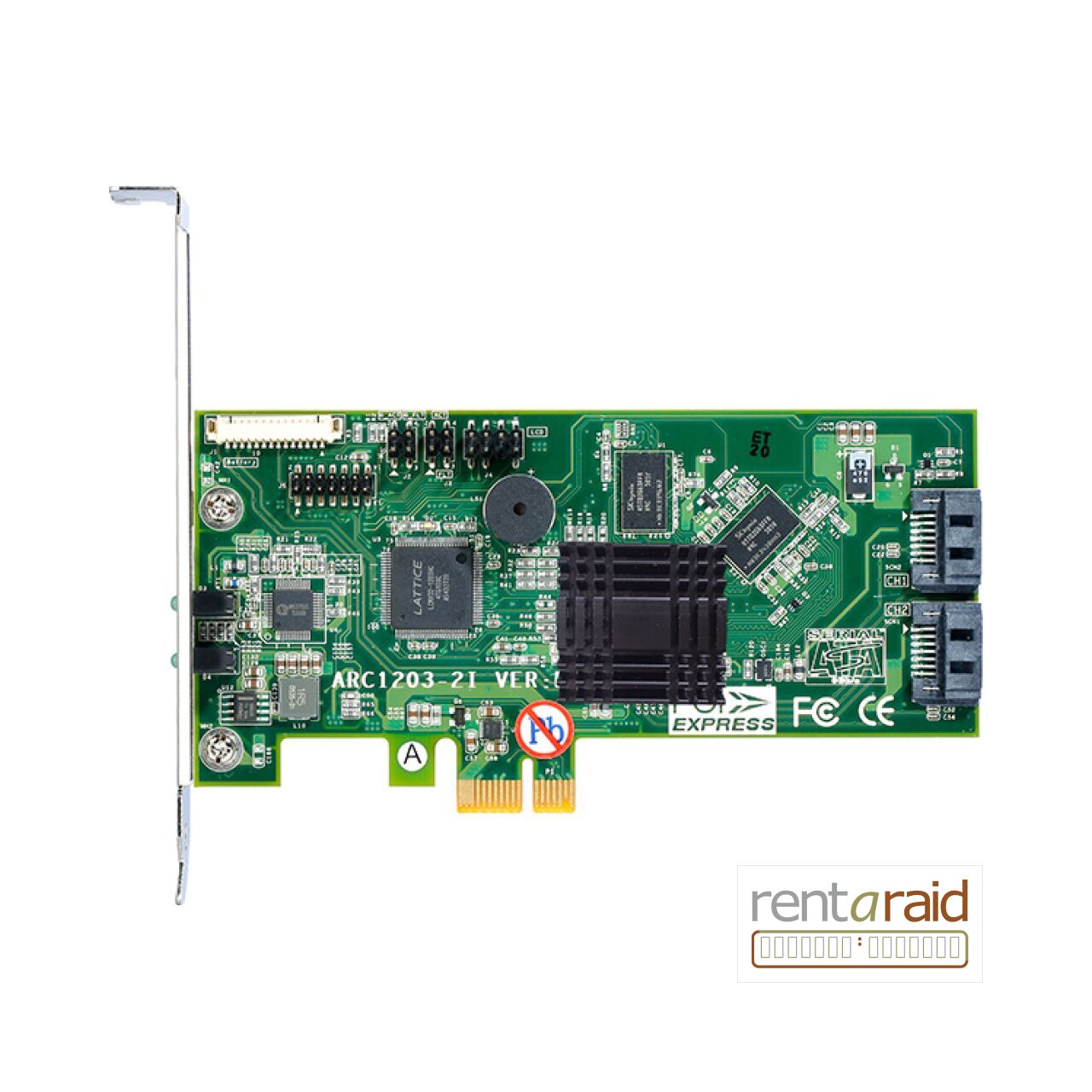

Areca ARC-1203-2i
2-drive internal SATA hardware RAID controller
The Areca ARC-1203-2i is a two-port internal hardware RAID adapter for SATA HDDs and SSDs, combining a PCIe 2.0 x1 host interface with two discrete 6Gb/s SATA drive connectors.
A dedicated 1066 MHz storage processor and 512MB of DDR3-1066 cache provide hardware RAID processing independently of the host CPU. The controller supports RAID 0, RAID 1, JBOD and Single Disk configurations, together with online RAID migration and capacity expansion.
The low-profile adapter also supports an optional battery backup module, SMART monitoring, self-encrypting drives and browser, BIOS and command-line management.
- Two internal 6Gb/s SATA drive ports
- PCIe 2.0 x1 host interface
- 512MB DDR3-1066 on-board cache
- RAID 0, RAID 1, JBOD and Single Disk support
- Supports SATA HDDs and SSDs
Category: SAS/SATA RAID PCIe Cards
Brand: Areca Technology
Original price was: £ 270.20.£ 224.95Current price is: £ 224.95. | £ 269.94 inc VAT
Please Call Us For Availability Of This Item
Areca ARC-1203-2i Product Overview
The ARC-1203-2i connects up to 2 SATA HDDs or SSDs through two individual SATA connectors. It uses a PCIe 2.0 x1 host connection.
RAID planning
Two equal 4TB drives in RAID1 provide approximately 4TB usable before formatting and filesystem overhead. RAID0 combines capacity without drive-failure protection; neither mode replaces a backup.
Installation planning
Match the controller connectors to the drive cabling or backplane. SATA port speed is not a guarantee of aggregate host throughput. Confirm airflow and operating-system support for the intended chassis.
Areca ARC-1203-2i Key Features
- 2-port internal 6Gb/s SATA hardware RAID adapter
- PCIe 2.0 x1 host interface
- Two discrete internal SATA latch connectors
- Supports up to two SATA HDDs or SSDs
- Up to 6Gb/s transfer rate per SATA port
- 1066 MHz dedicated storage processor
- 512MB DDR3-1066 on-board cache
- Write-through and write-back cache support
- RAID 0, RAID 1, JBOD and Single Disk modes
- Configurable stripe size up to 1024KB
- Online RAID-level and stripe-size migration
- Online capacity expansion
- Automatic drive insertion/removal detection and rebuilding
- Native 4K and 512-byte sector SATA device support
- Support for drives and volume sets larger than 2TB
- Self-encrypting drive management
- SMART drive-status monitoring
- Optional battery backup module support
- Redundant firmware flash image
- McRAID, McBIOS, CLI and ArcSAP management
- Low-profile PCIe card form factor
Areca ARC-1203-2i Technical Specifications
| Manufacturer | Areca Technology |
| Model / Manufacturer Part Number | ARC-1203-2i |
| Product Type | 2-port internal 6Gb/s SATA hardware RAID adapter |
| Storage Processor | 1066 MHz |
| Cache Memory | 512MB DDR3-1066 on-board SDRAM |
| Cache Modes | Write-through and write-back |
| Host Bus Interface | PCIe 2.0 x1 |
| Drive Connectors | 2 x discrete SATA latch connectors |
| Drive Ports | 2 x internal 6Gb/s SATA |
| Maximum Drives | 2 |
| Supported Drives | SATA HDDs and SSDs |
| Data Transfer Rate | Up to 6Gb/s per port |
| RAID Levels / Modes | RAID 0, RAID 1, JBOD and Single Disk |
| Maximum Stripe Size | 1024KB |
| Sector Support | Native 4K and 512-byte sector SATA devices |
| Large Drive / Volume Support | Greater than 2TB per drive and volume set |
| Self-Encrypting Drive Support | Yes |
| Battery Backup | Optional Areca BBM supported |
| Firmware Protection | Redundant flash image |
| Management | McRAID Storage Manager, McBIOS, CLI, ArcSAP |
| Monitoring / Notification | Activity/fault indicators, alarm buzzer, SMTP, SNMP |
| Form Factor | PCI half-length / low-profile |
| Dimensions | 134 x 64 mm |
| Typical Power Dissipation | 8W |
| Regulatory Certification | CE, FCC |
