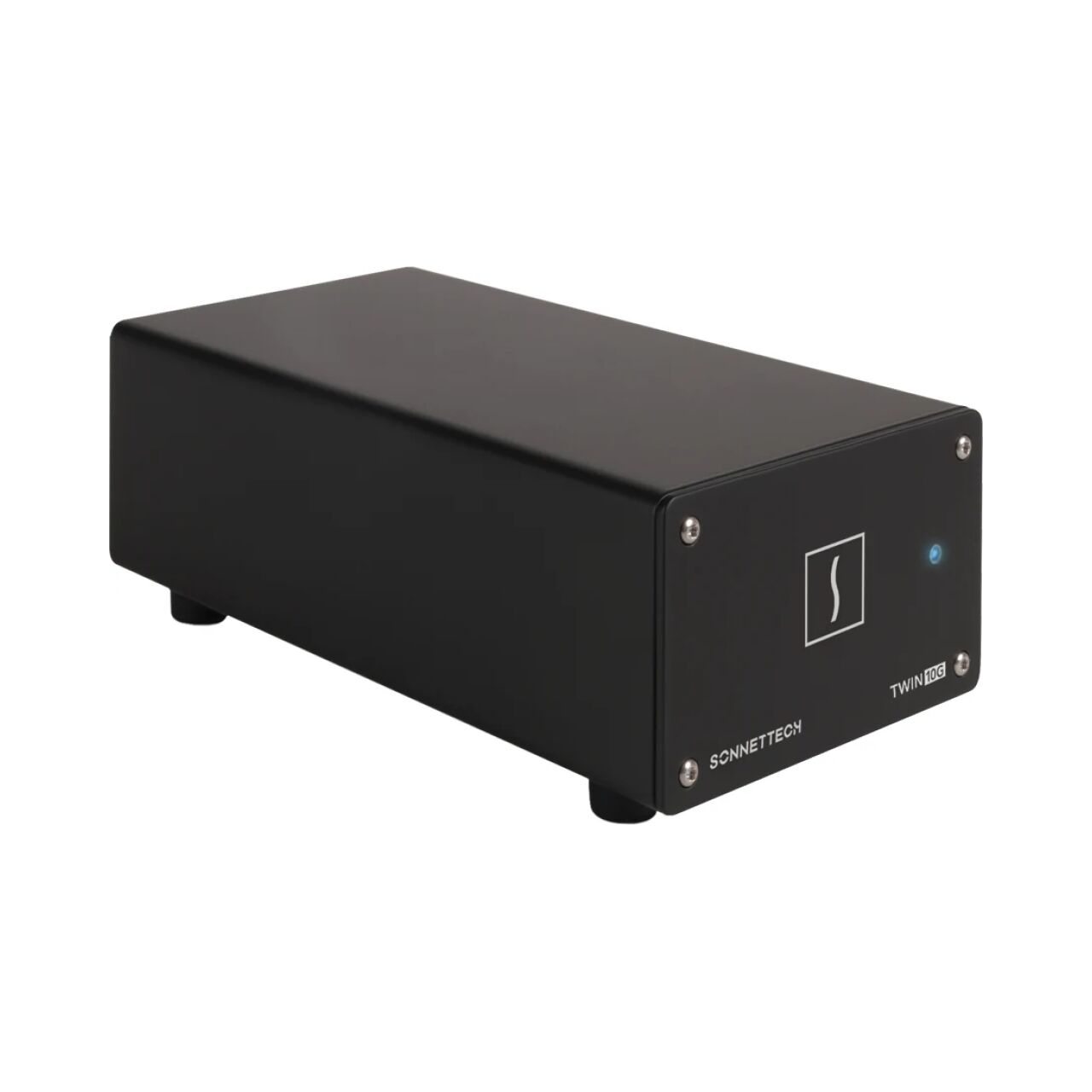

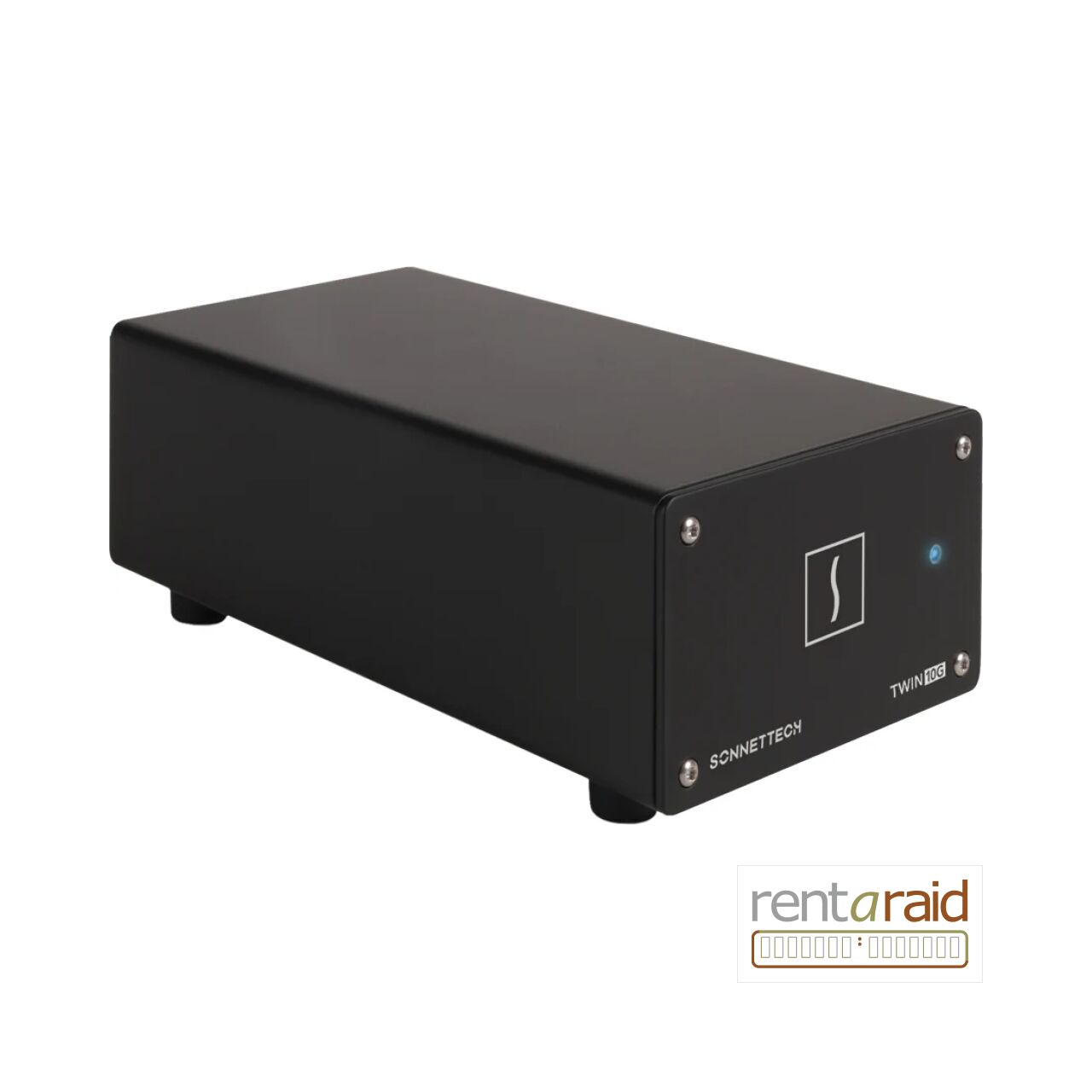

Sonnet Twin10G Thunderbolt 3 Edition
Sonnet Twin10G Thunderbolt 3 Edition
Dual-Port 10GBASE-T Thunderbolt 3 Ethernet Adapter With Two RJ45 Ports
The Sonnet Twin10G Thunderbolt 3 Edition (TWIN10GC-TB3) adds two high-performance 10GBASE-T Ethernet ports to a compatible Mac, Windows or Linux computer through Thunderbolt.
Two RJ45 ports connect to standard copper 10GbE infrastructure using Cat 6 or Cat 6A cabling, while dual Thunderbolt ports support host connection and daisy-chaining of additional Thunderbolt devices.
- Dual-port 10GBASE-T 10 Gigabit Ethernet adapter.
- Two RJ45 network ports and two Thunderbolt ports.
- Intel X540 Ethernet controller.
- Compact aluminium enclosure with temperature-controlled cooling.
Brand: Sonnet Technology
Original price was: £ 525.00.£ 485.95Current price is: £ 485.95. | £ 583.14 inc VAT
Please Call Us For Availability Of This Item
Sonnet Twin10G Thunderbolt 3 Edition – Product Overview
The Sonnet Twin10G Thunderbolt 3 Edition brings dual-port 10GBASE-T networking to computers with Thunderbolt connectivity, providing the PCIe bandwidth required to drive two 10Gb Ethernet connections in a compact external adapter.
Dual 10GBASE-T RJ45 Ports
Two RJ45 ports connect directly to copper 10GbE switches, storage and infrastructure. Sonnet specifies up to 100 metres over Cat 6A cabling or up to 55 metres over Cat 6 for 10GBASE-T operation.
Thunderbolt Connectivity
One Thunderbolt port connects to the host computer while the second supports daisy-chaining compatible Thunderbolt peripherals. The adapter's Thunderbolt 3 architecture provides the PCIe bandwidth needed for high-performance dual-port networking.
Professional Networking Features
The Intel X540-based design supports features including flow control, checksum offload, transparent failover and jumbo frames. Windows and Linux systems can also use link aggregation where supported by the operating system and network configuration.
Compact, Quiet Design
A rugged aluminium enclosure protects the internal hardware, while a temperature-controlled variable-speed fan manages cooling with low acoustic output for desktop and production environments.
Sonnet Twin10G Thunderbolt 3 Edition – Key Features
- Two 10GBASE-T RJ45 Ethernet ports.
- Thunderbolt 3 interface with two Thunderbolt ports.
- Intel X540 Ethernet controller.
- 10GbE operation up to 100 metres over Cat 6A or 55 metres over Cat 6 cabling.
- Supports 1000BASE-T Gigabit Ethernet.
- Supports transparent failover.
- Link aggregation support on Windows and Linux where supported.
- Maximum jumbo frame size up to 15,872 bytes.
- Second Thunderbolt port supports daisy-chaining compatible peripherals.
- Rugged aluminium enclosure with temperature-controlled variable-speed fan.
- Universal external power adapter included.
- Thunderbolt cable and ThunderLok connector retainer included.
- 2-year Sonnet warranty.
Sonnet Twin10G Thunderbolt 3 Edition – Technical Specifications
| Manufacturer | Sonnet Technologies |
| Manufacturer Part Number | TWIN10GC-TB3 |
| Product Type | Dual-port 10GbE Thunderbolt adapter |
| Ethernet Controller | Intel X540 |
| Network Ports | 2 × RJ45 |
| Network Standards | 10GBASE-T, 1000BASE-T |
| 10GbE Cable Distance | Up to 100 m with Cat 6A; up to 55 m with Cat 6 |
| Thunderbolt Ports | 2 |
| Thunderbolt Interface | Thunderbolt 3, 40Gbps |
| Jumbo Frames | Up to 15,872 bytes |
| Link Aggregation | Supported on Windows and Linux where supported by OS/network configuration |
| Power Adapter | Universal 60W, 100–240V AC, 50–60Hz |
| Operating Temperature | 0°C to 35°C |
| Dimensions | 4 × 8.25 × 2.75 in / 10.3 × 21 × 7.3 cm |
| Weight | 2.95 lb / 1.34 kg |
| Included | Twin10G adapter, power adapter, regional power cable, Thunderbolt cable, ThunderLok and documentation |
| Warranty | 2 years |
Sonnet Twin10G Thunderbolt 3 Edition Product Downloads
