The Sonnet Thunderbolt AVB Adapter provides a dedicated Gigabit Ethernet connection with Audio Video Bridging support for professional audio and networked media workflows.
It is Avid-qualified for Pro Tools | Carbon connectivity and supports AVB, Milan-certified products and standard Gigabit Ethernet through a single RJ45 port.
Original price was: £ 158.00.£ 149.95Current price is: £ 149.95. | £ 179.94 inc VAT
In Stock

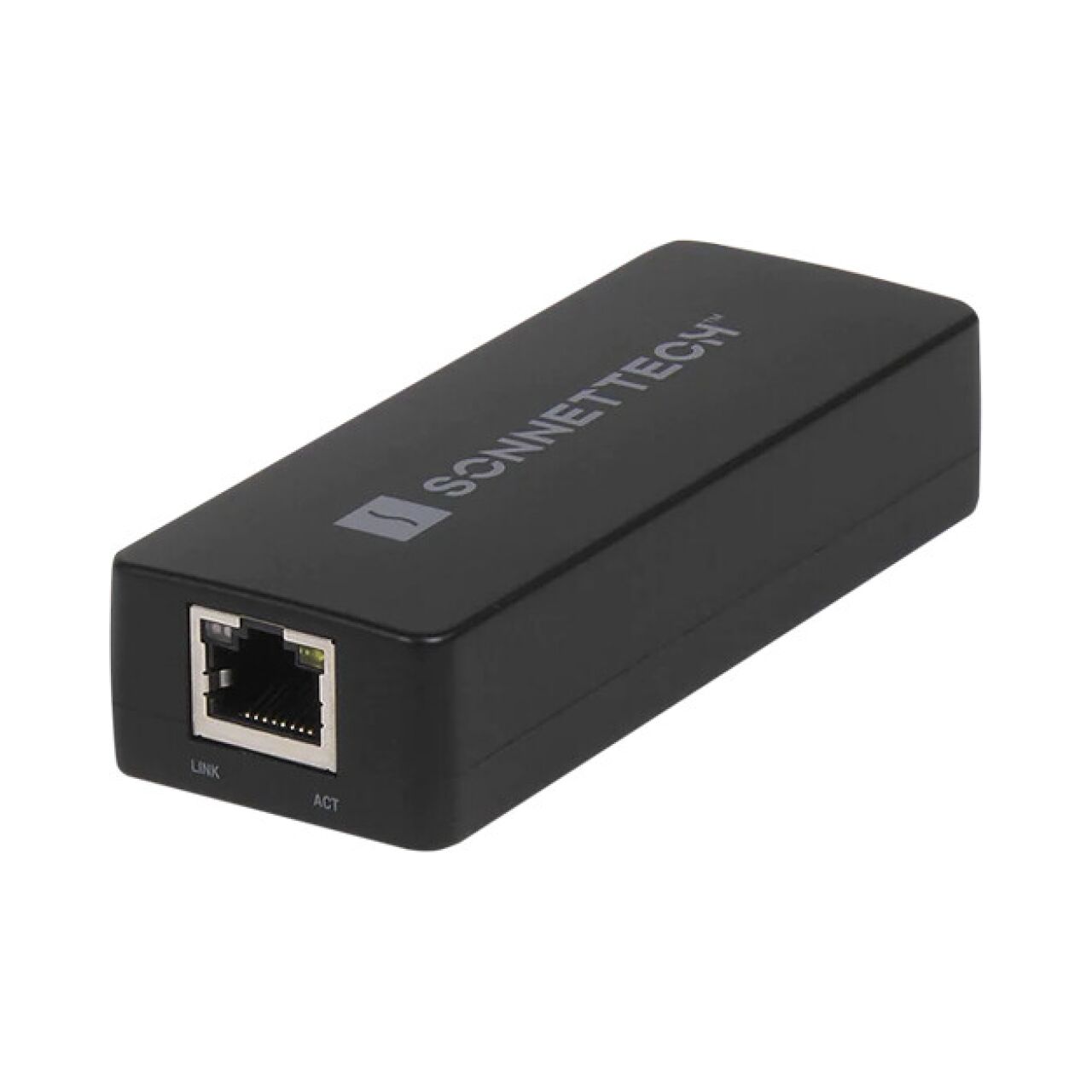

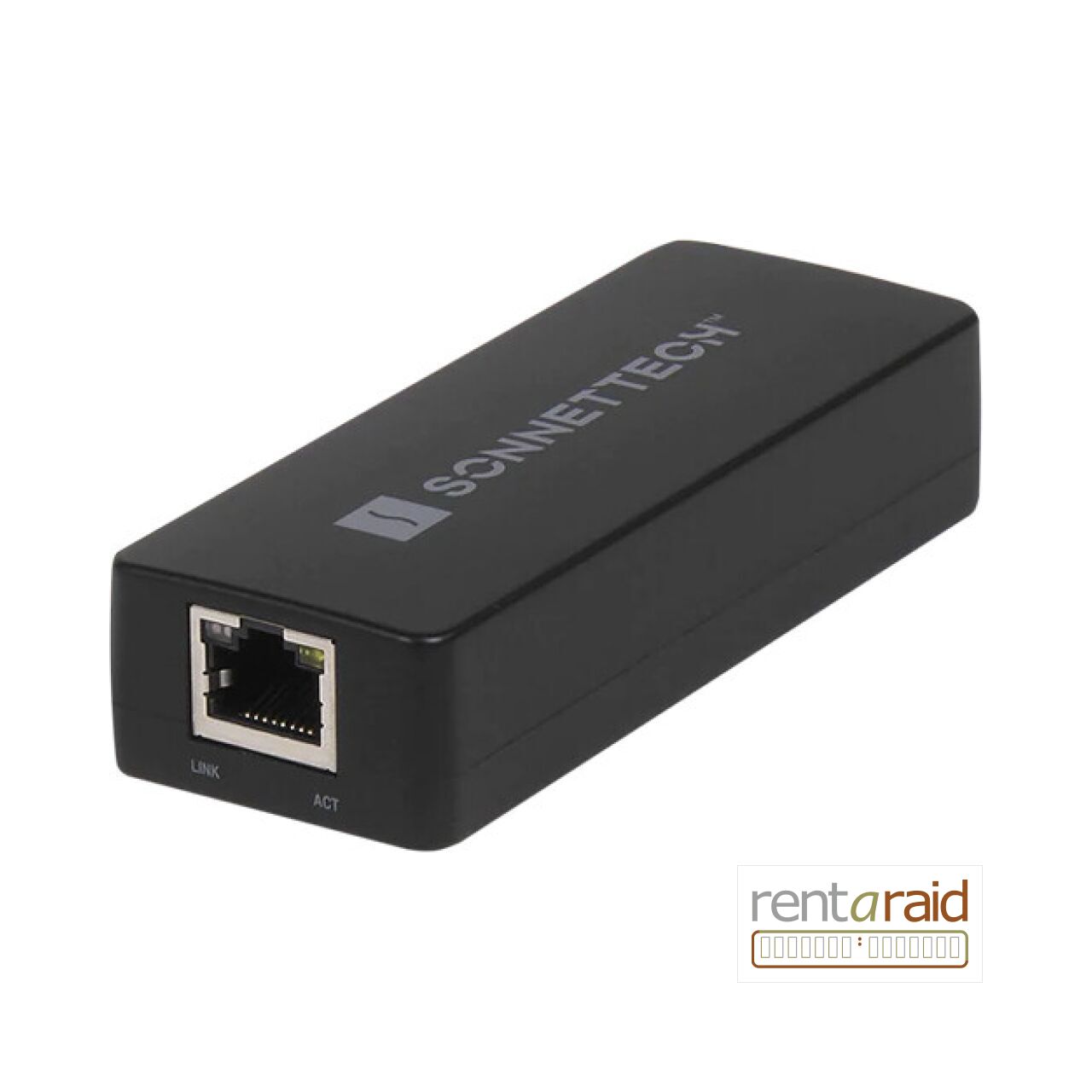

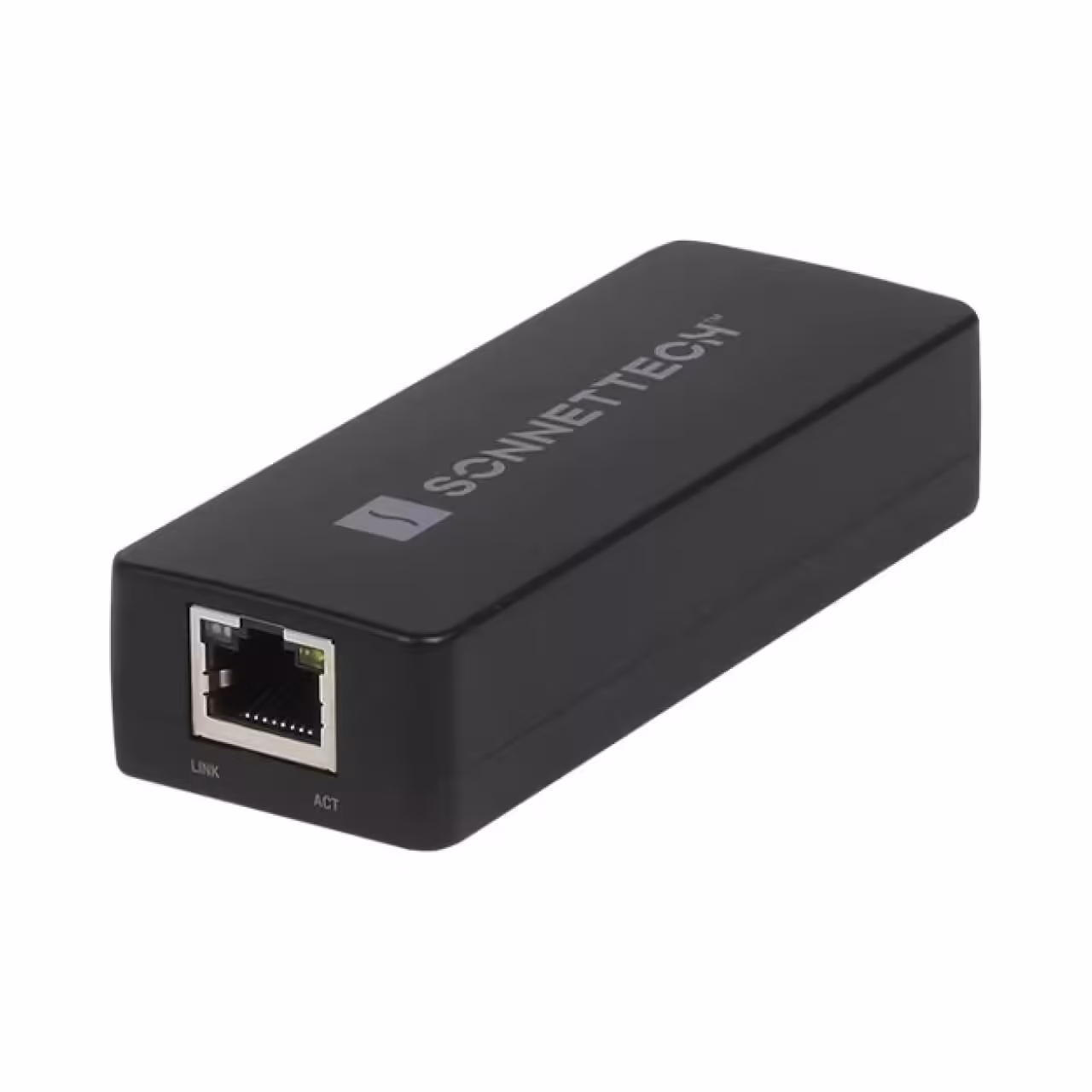

The Sonnet Thunderbolt AVB Adapter (AVB-TB) is a compact Thunderbolt-to-Gigabit-Ethernet interface designed for AVB-enabled audio systems and conventional Ethernet networking.
The Broadcom BCM57762-based adapter supports Audio Video Bridging protocols including IEEE 802.1AS, IEEE 1588-2008, P802.1Qat and P802.1Qav. Sonnet also lists compatibility with Milan-certified products.
The adapter is Avid-qualified for connecting supported Mac systems to Pro Tools | Carbon, providing the dedicated AVB-capable Ethernet interface required by that workflow.
The RJ45 interface supports 1000BASE-T and 100BASE-TX networking with jumbo frames up to 9000 bytes, VLAN support, Energy-Efficient Ethernet and Wake-on-LAN.
The adapter is bus powered and supplied with a 0.5-metre Thunderbolt cable plus Sonnet ThunderLok-A connector lock.
| Product | Sonnet Thunderbolt AVB Adapter |
| Sonnet Part Number | AVB-TB |
| Form Factor | Thunderbolt Ethernet adapter |
| Host Interface | 40Gbps Thunderbolt |
| Network Port | 1 × RJ45 |
| Ethernet Controller | Broadcom BCM57762 |
| Network Support | 1000BASE-T, 100BASE-TX |
| Supported Data Rates | 1Gb/s, 100Mb/s |
| Maximum Packet Size | 9000 bytes |
| AVB Support | IEEE 802.1AS, 1588-2008, P802.1Qat, P802.1Qav |
| Power | Bus powered |
| Included Cable | 0.5m Thunderbolt cable |
| Warranty | 2 years |
