Original price was: £ 368.00.£ 347.95Current price is: £ 347.95. | £ 417.54 inc VAT
Sonnet Tempo SSD PCIe Card
Sonnet Tempo SSD PCIe Card
Mount One Or Two 2.5-Inch SATA SSDs On PCIe
The Sonnet Tempo SSD PCIe Card installs one or two standard 2.5-inch SATA SSDs or compatible hard drives directly onto a PCIe card, avoiding separate drive bays and data cables.
Its SATA 6Gb/s controller and PCIe 2.0 x2 interface support high-performance solid-state storage, while compatible operating systems can combine two installed drives using software RAID.
- Mounts one or two 2.5-inch SATA SSDs or HDDs.
- Supports SATA 6Gb/s, 3Gb/s and 1.5Gb/s drives.
- PCIe 2.0 x2 host interface.
- Up to 660MB/s with a two-SSD RAID 0 configuration.
Brand: Sonnet Technology
Original price was: £ 53.00.£ 50.95Current price is: £ 50.95. | £ 61.14 inc VAT
In Stock
Sonnet Tempo SSD PCIe Card – Product Overview

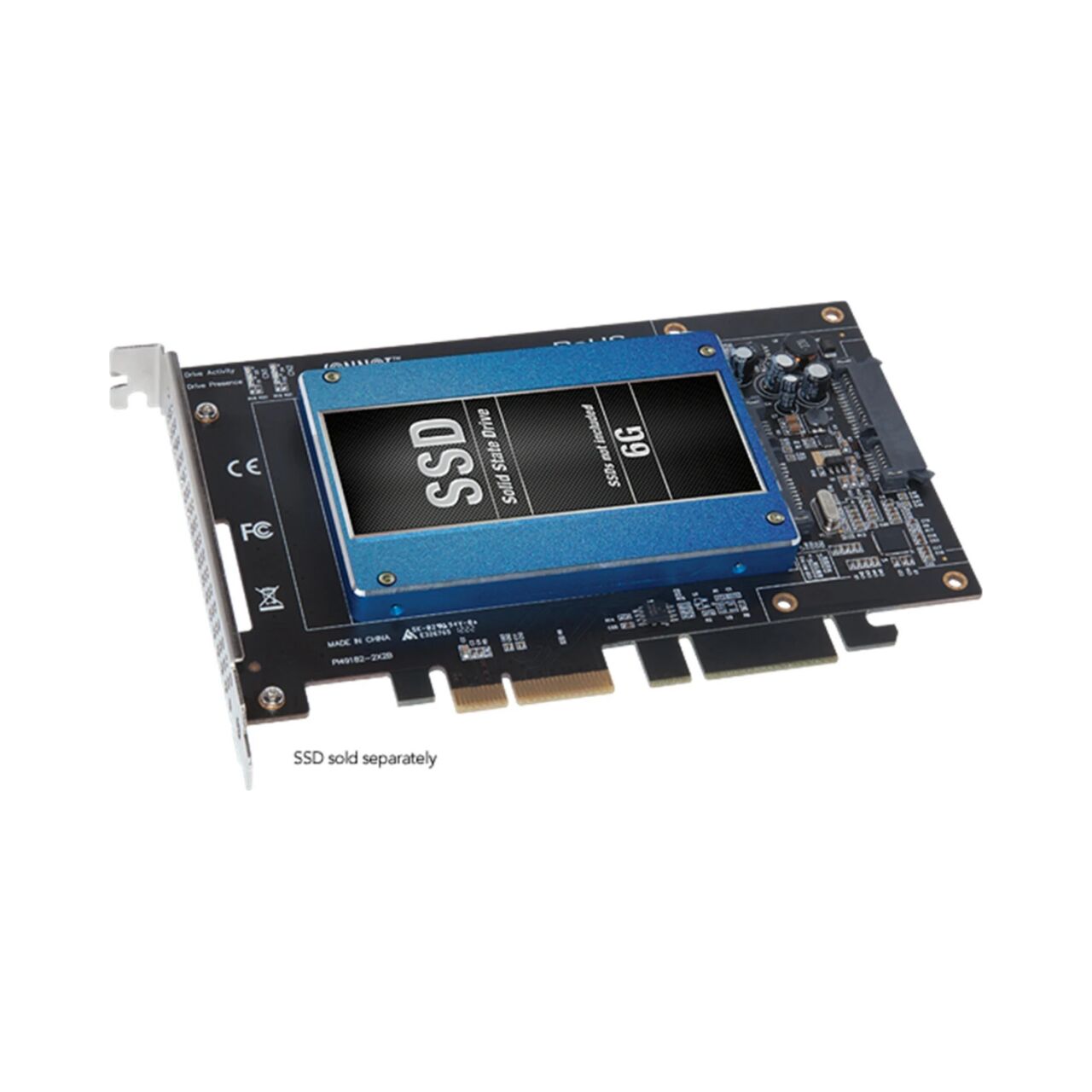

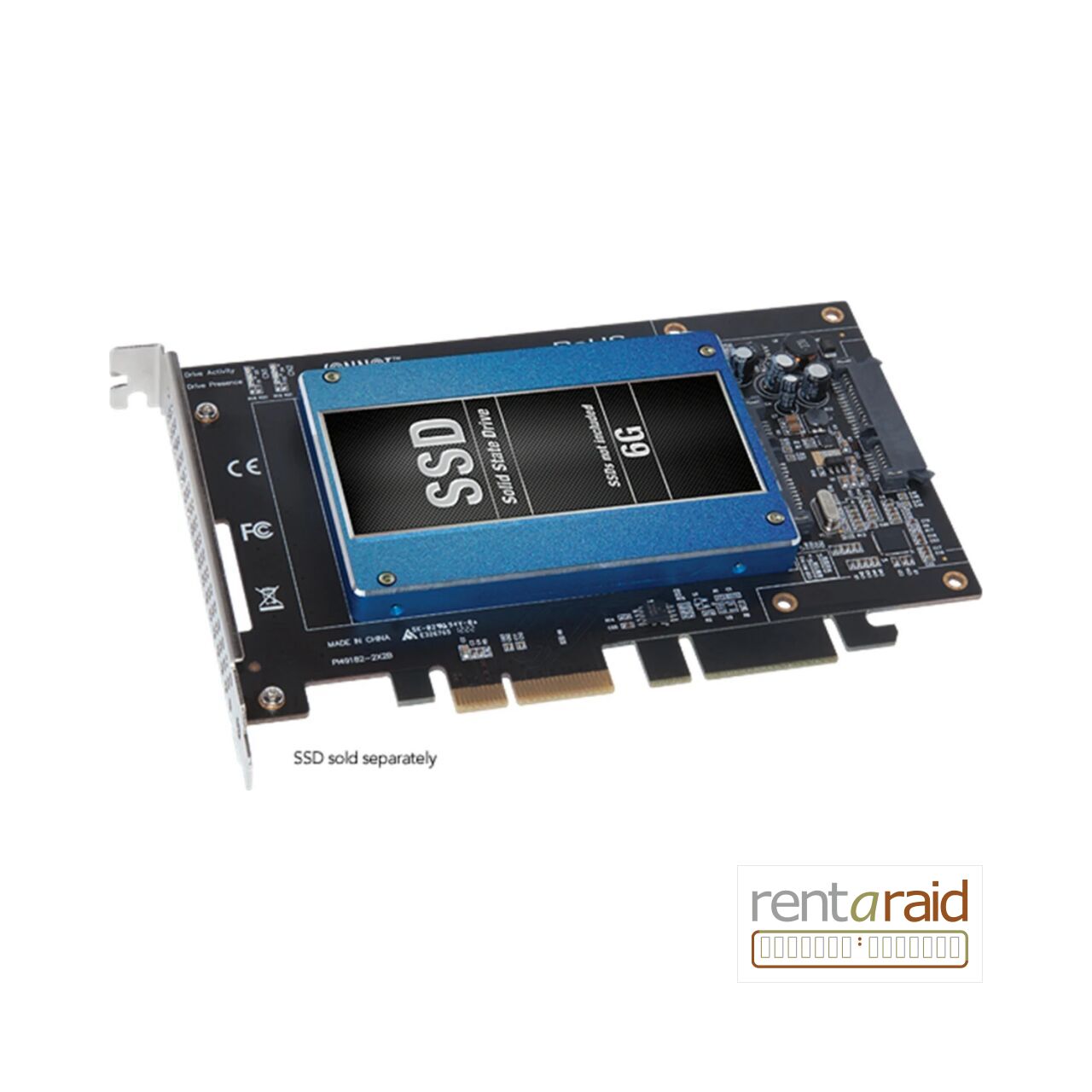

The Sonnet Tempo SSD PCIe Card, part number TSATA6-SSD-E2, provides a compact way to install one or two 2.5-inch SATA SSDs or hard drives directly into a PCIe-equipped computer or compatible Thunderbolt-to-PCIe expansion chassis.
The drives mount physically to the card, so the solution does not require conventional internal drive bays or separate SATA data cables.
One Or Two 2.5-Inch SATA Drives
The half-length card supports one 2.5-inch SATA drive on its own. To install a second drive, the supplied extension plate is fitted to create a full-length assembly with mounting positions for both drives.
SATA 6Gb/s Connectivity
Tempo SSD supports SATA 6Gb/s, 3Gb/s and 1.5Gb/s drives, allowing use with a broad range of standard 2.5-inch SATA SSDs and compatible hard drives.
Up To 660MB/s With Two SSDs
Sonnet specifies transfer performance up to 660MB/s when two suitable SSDs are configured as a RAID 0 set, subject to the installed drives, host system and operating-system RAID implementation.
PCIe 2.0 x2 Host Interface
The card connects through a PCI Express 2.0 x2 host interface, providing sufficient bandwidth for two SATA 6Gb/s SSDs within the limits of the controller and host platform.
Software RAID Support
With two drives installed, supported macOS and Windows systems can use their native software RAID features. The card itself is not a hardware RAID controller and does not add dedicated RAID processing or cache.
AHCI And Driverless Operation
The SATA controller is AHCI compliant and Sonnet does not require a dedicated driver for normal operation on supported systems. S.M.A.R.T. drive status reporting is also supported.
Thunderbolt Expansion Compatibility
Sonnet supports the card in compatible Thunderbolt-to-PCIe expansion chassis, allowing one or two directly mounted SATA drives to be added externally to systems without an internal PCIe slot.
Sonnet Tempo SSD PCIe Card – Key Features
- Sonnet part number TSATA6-SSD-E2.
- Mounts one or two 2.5-inch SATA SSDs or HDDs directly on the card.
- Half-length configuration for one drive.
- Included extension plate supports installation of a second drive.
- SATA 6Gb/s, 3Gb/s and 1.5Gb/s drive support.
- PCI Express 2.0 x2 host interface.
- Up to 660MB/s with two suitable SSDs in software RAID 0.
- Supports operating-system software RAID features.
- AHCI compliant.
- No dedicated driver required on supported systems.
- S.M.A.R.T. drive status reporting support.
- Compatible with supported Thunderbolt-to-PCIe expansion systems.
- Drives sold separately.
- 2-year Sonnet warranty.
Sonnet Tempo SSD PCIe Card – Technical Specifications
| Manufacturer | Sonnet Technologies |
| Manufacturer Part Number | TSATA6-SSD-E2 |
| Product Type | Dual-drive 2.5-inch SATA SSD / HDD PCIe adapter card |
| Drive Capacity | 1 or 2 x 2.5-inch SATA drives |
| Supported Drive Types | 2.5-inch SATA SSDs and compatible HDDs |
| Drive Interface | SATA 6Gb/s; backward compatible with SATA 3Gb/s and 1.5Gb/s |
| PCIe Interface | PCI Express 2.0 x2 |
| Single-Drive Form Factor | Half-length PCIe card |
| Dual-Drive Form Factor | Full-length assembly using supplied extension plate |
| Maximum Stated Performance | Up to 660MB/s with two suitable SSDs in RAID 0 |
| RAID Support | Operating-system software RAID features with two installed drives |
| Hardware RAID Controller | No |
| AHCI | Compliant |
| Dedicated Driver Required | No, on supported systems |
| S.M.A.R.T. Reporting | Supported |
| Thunderbolt Expansion Compatibility | Supported in compatible Thunderbolt-to-PCIe expansion chassis |
| Drives Included | No |
| Warranty | 2 years |
| Package Contents | Tempo SSD PCIe Card, extension plate and drive mounting screws |
