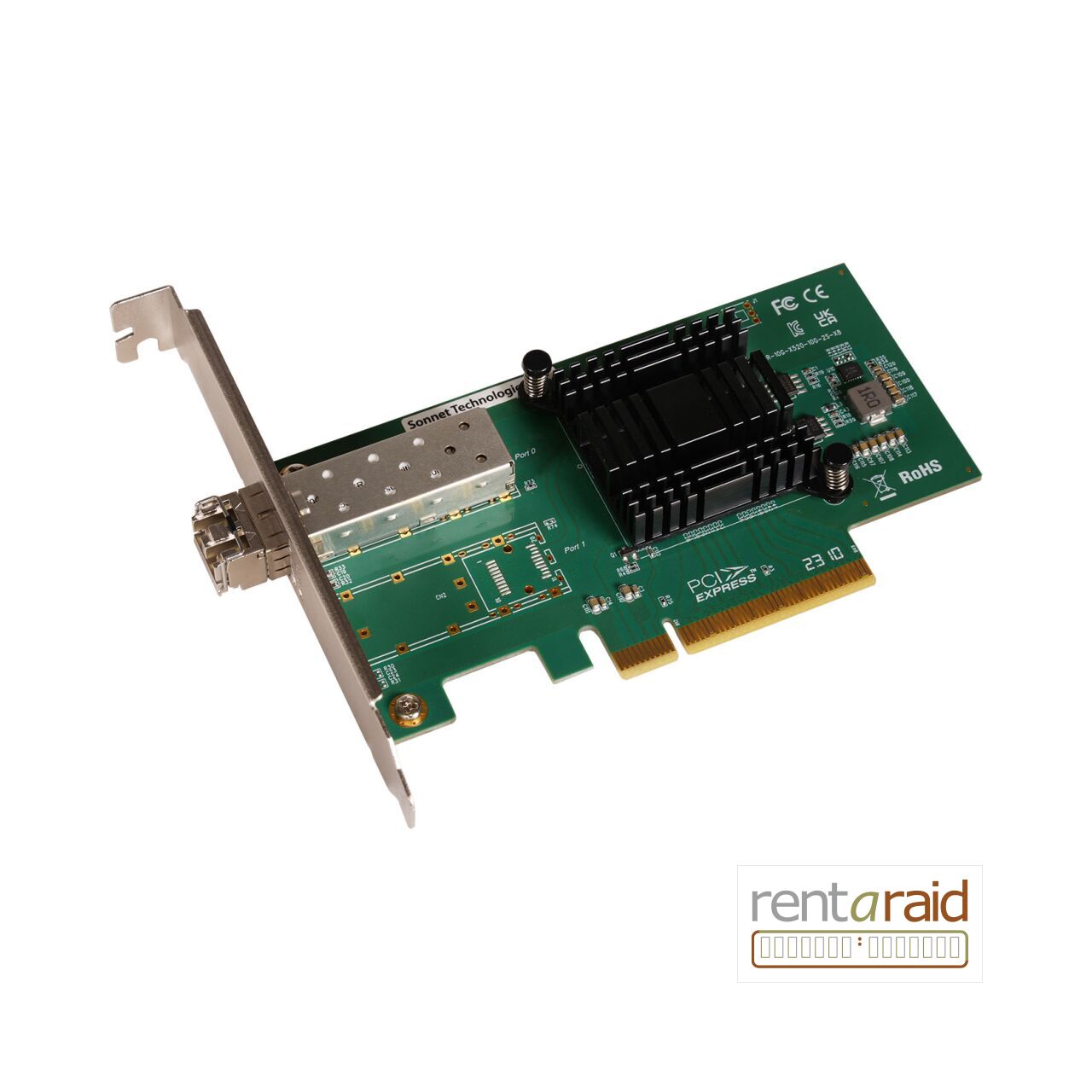

Sonnet Solo10G SFP+ V2 PCIe Card
Sonnet Solo10G SFP+ V2 PCIe Card
Single-Port 10GbE SFP+ Networking With Included Optical Transceiver
The Sonnet Solo10G SFP+ V2 PCIe Card adds a single 10 Gigabit Ethernet SFP+ interface to compatible computers and PCIe expansion systems.
Sonnet supplies a short-range SFP+ optical transceiver installed on the card, making it ready for multimode fibre connection to compatible 10GbE switches and storage.
- Single 10GbE SFP+ port.
- Short-range SFP+ optical transceiver included.
- Intel 82599 Ethernet controller.
- Low-profile PCIe 2.0 x8 design.
Brand: Sonnet Technology
Original price was: £ 127.00.£ 119.95Current price is: £ 119.95. | £ 143.94 inc VAT
In Stock
Sonnet Solo10G SFP+ V2 PCIe Card – Product Overview
The Sonnet Solo10G SFP+ V2 PCIe Card, part number G10E-SFP-1XN-E3, is a low-profile single-port 10Gb Ethernet adapter for fibre-based high-performance networking.
It is supplied with a short-range SFP+ optical transceiver installed, providing a straightforward path to connect workstations and servers to compatible 10GbE infrastructure.
10 Gigabit SFP+ Connectivity
The card provides one SFP+ network socket and supports 10Gbps and 1Gbps Ethernet operation using compatible SFP+ connectivity.
Short-Range Optical Transceiver Included
Sonnet includes its short-range SFP+ optical transceiver on the card. The compatible Sonnet short-range module supports multimode fibre connections up to 300 metres.
Intel 82599 Controller
The Intel 82599 controller supports flow control, receive-side scaling, multicast filtering and hardware checksum and segmentation offloads to reduce host CPU overhead during demanding network traffic.
Jumbo Frame Support
Maximum packet size is 15,872 bytes, enabling jumbo-frame operation on suitably configured high-performance Ethernet networks.
Low-Profile PCIe Design
Solo10G SFP+ V2 is a low-profile PCIe 2.0 x8 card. Sonnet includes both full-height and low-profile mounting brackets and supports use in compatible Thunderbolt-to-PCIe expansion systems with an x8 or x16 slot.
Current Platform Support
Sonnet currently lists support for compatible Mac Pro systems running macOS 14 or later, Windows 11 and Windows Server 2025, and Linux systems using kernel 6.12 or later.
Sonnet Solo10G SFP+ V2 PCIe Card – Key Features
- Sonnet part number G10E-SFP-1XN-E3.
- Single 10GbE SFP+ network port.
- Short-range SFP+ optical transceiver installed and included.
- Intel 82599 10GbE controller.
- Supports 10Gbps and 1Gbps network data rates.
- Maximum packet size of 15,872 bytes for jumbo frames.
- Flow control support.
- Receive-side scaling support.
- Multicast filtering.
- TCP, UDP and IPv4 checksum offloading.
- TCP segmentation and receive offloads.
- Low-profile PCIe 2.0 x8 form factor.
- Full-height and low-profile mounting brackets included.
- Compatible with supported Thunderbolt-to-PCIe expansion systems.
- 2-year Sonnet warranty.
Sonnet Solo10G SFP+ V2 PCIe Card – Technical Specifications
| Manufacturer | Sonnet Technologies |
| Manufacturer Part Number | G10E-SFP-1XN-E3 |
| Product Type | Single-port 10 Gigabit Ethernet SFP+ PCIe network card |
| Form Factor | Low-profile PCIe card |
| PCIe Interface | PCIe 2.0 x8 |
| External Connector | 1 x SFP+ |
| Included Transceiver | Short-range SFP+ optical transceiver, installed |
| Ethernet Controller | Intel 82599 |
| Network Support | 10Gbps |
| Supported Data Rates | 10Gbps, 1Gbps |
| Maximum Packet Size | 15,872 bytes |
| Advanced Networking | Flow control, MSI, RSS, multicast filtering, 64-bit addressing |
| Stateless Offloads | TCP, UDP and IPv4 checksum offload; TSO; TCP receive offload |
| Wake-on-LAN | Not supported |
| Mac Compatibility | Mac Pro 2023 / 2019; macOS 14 or later |
| Windows Compatibility | Windows 11; Windows Server 2025 |
| Linux Compatibility | Linux kernel 6.12 or later |
| Thunderbolt Expansion Compatibility | Supported expansion system with available x8 or x16 PCIe slot |
| Compliance | RoHS 3; IEC62368-1 / IEC62368-2 |
| Warranty | 2 years |
| Package Contents | Solo10G SFP+ V2 PCIe Card, installed short-range transceiver, full-height and low-profile brackets, documentation |
