Sonnet Echo 5 Thunderbolt 4 Hub

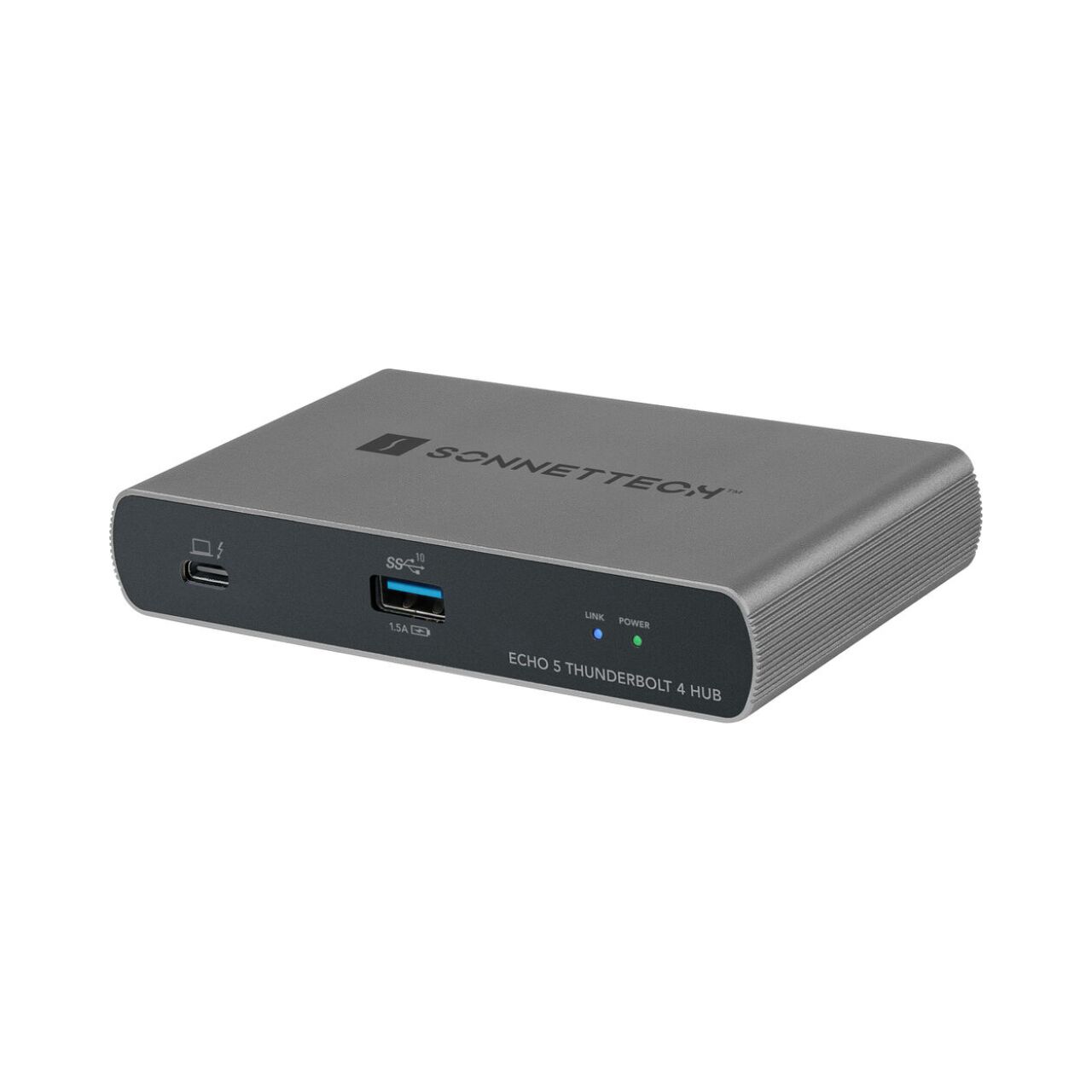

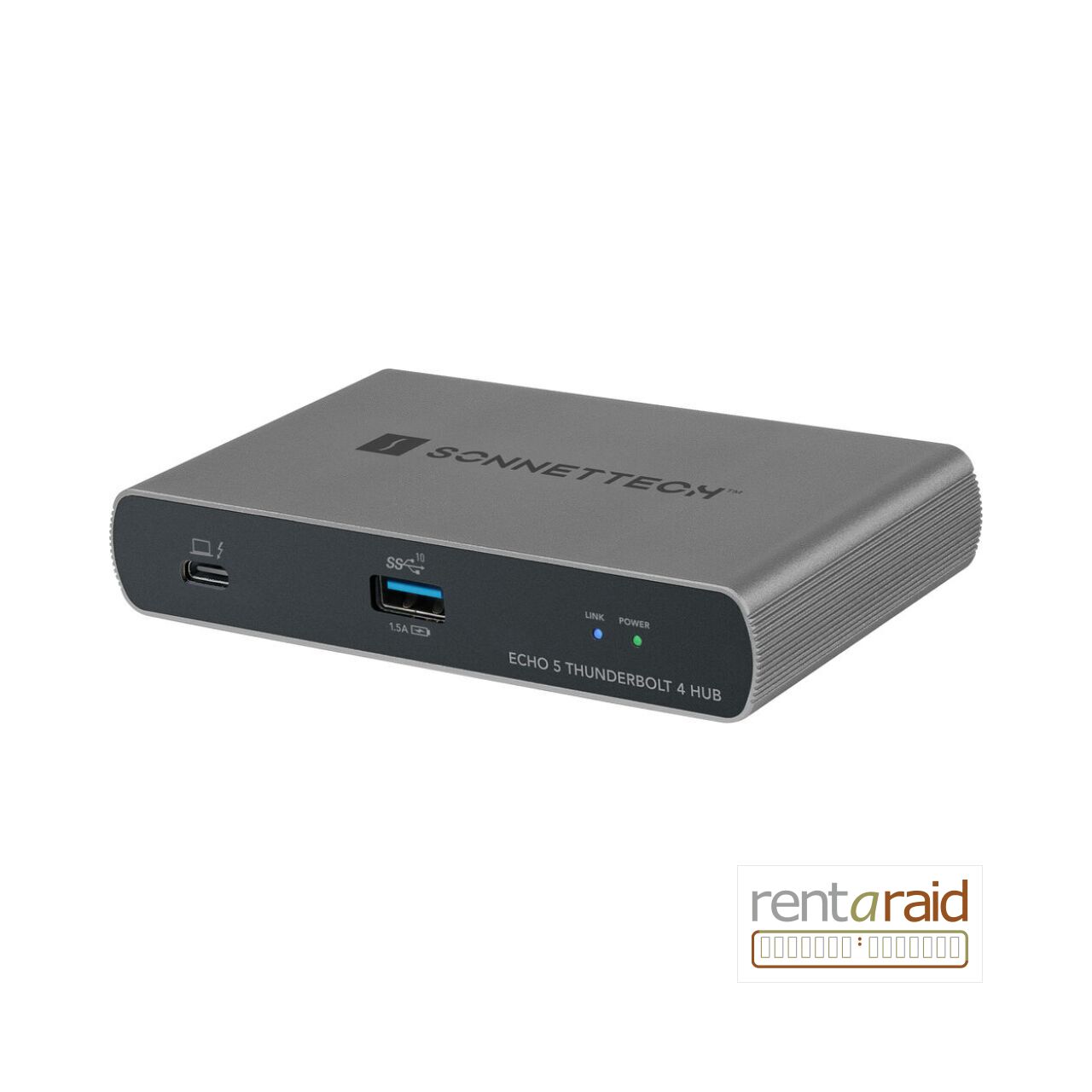

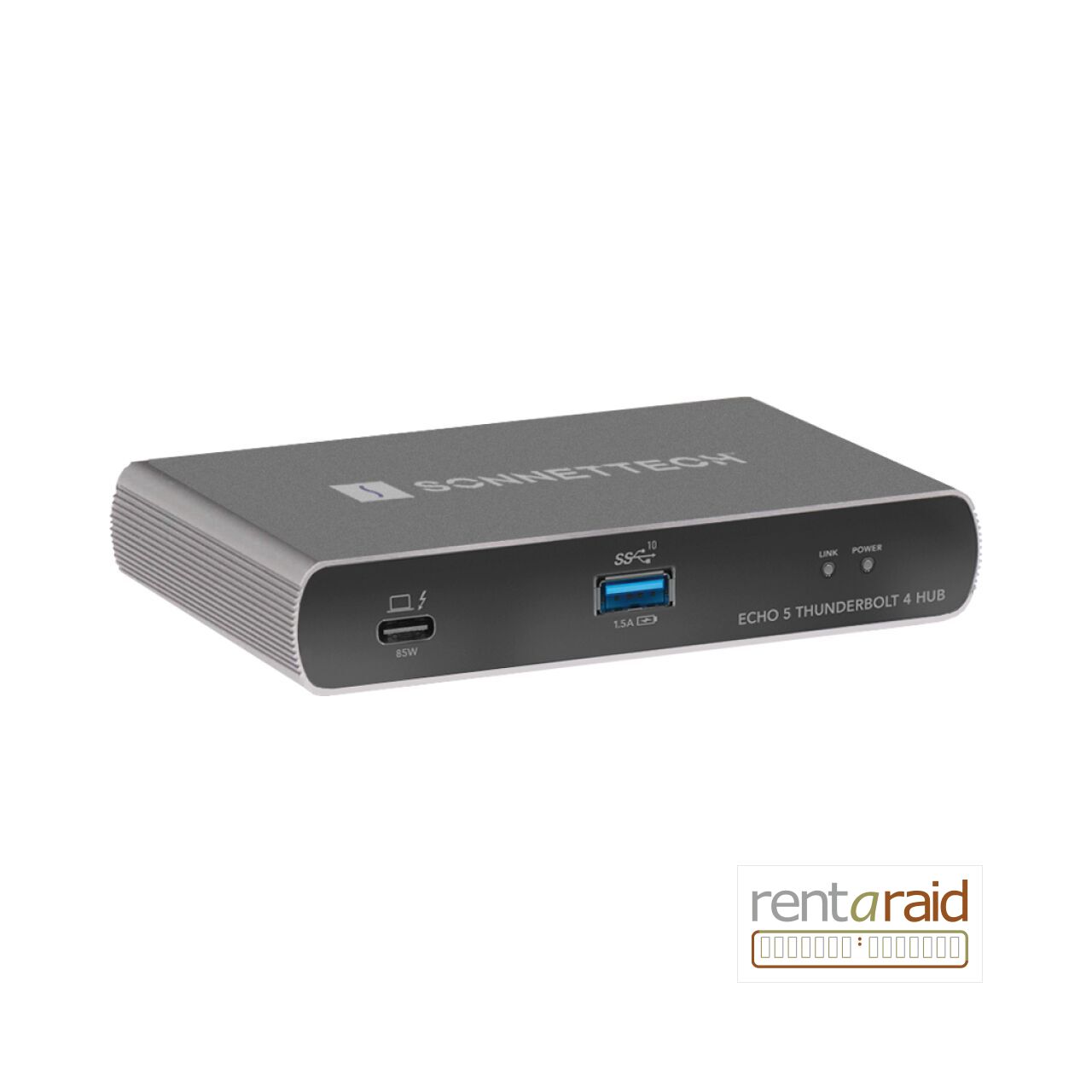

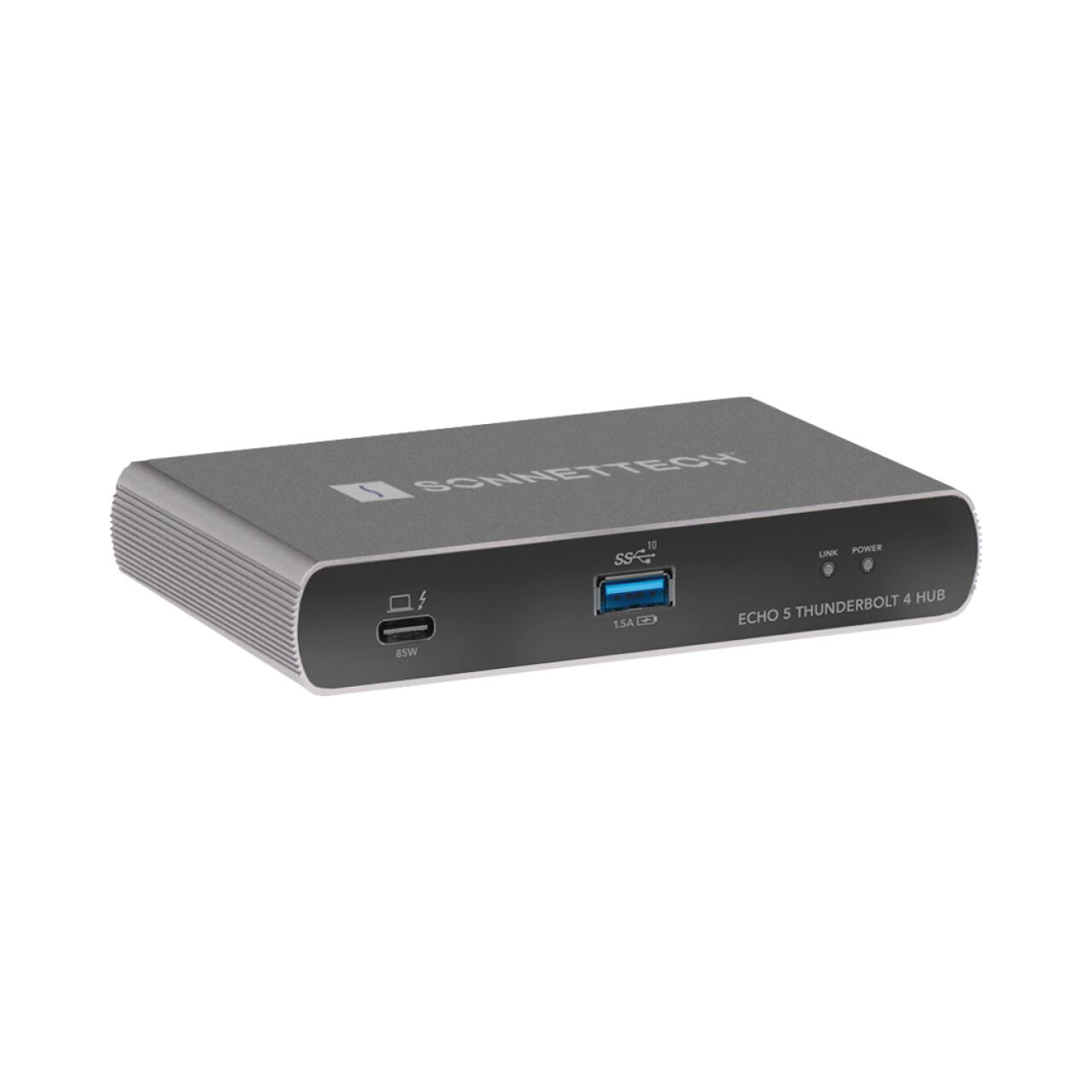

Sonnet Echo 5 Thunderbolt 4 Hub
Five-Port Thunderbolt 4 Hub With 85W Laptop Charging
The Sonnet Echo 5 Thunderbolt 4 Hub expands one Thunderbolt connection into three independent downstream Thunderbolt 4 ports plus a 10Gbps USB-A charging/data port.
It supports Thunderbolt 5 devices at Thunderbolt 4 speeds, USB4 and USB peripherals, Thunderbolt/USB-C displays, and up to 85W laptop charging over the host connection.
- 4 × Thunderbolt 4 ports total: 1 host + 3 downstream.
- 1 × USB-A 10Gbps USB 3.2 Gen 2 port.
- Up to 85W host charging and 15W from each downstream Thunderbolt port.
- Compact aluminium desktop hub with included 0.8m Thunderbolt cable.
Category: Thunderbolt Docks & Hubs
Brand: Sonnet Technology
£ please call for the price
Please Call Us For Availability Of This Item
Sonnet Echo 5 Thunderbolt 4 Hub – Product Overview
The Sonnet Echo 5 Thunderbolt 4 Hub is a compact powered expansion hub for users who need more Thunderbolt connectivity without the larger port mix of a full dock.
Turn One Thunderbolt Port Into Three

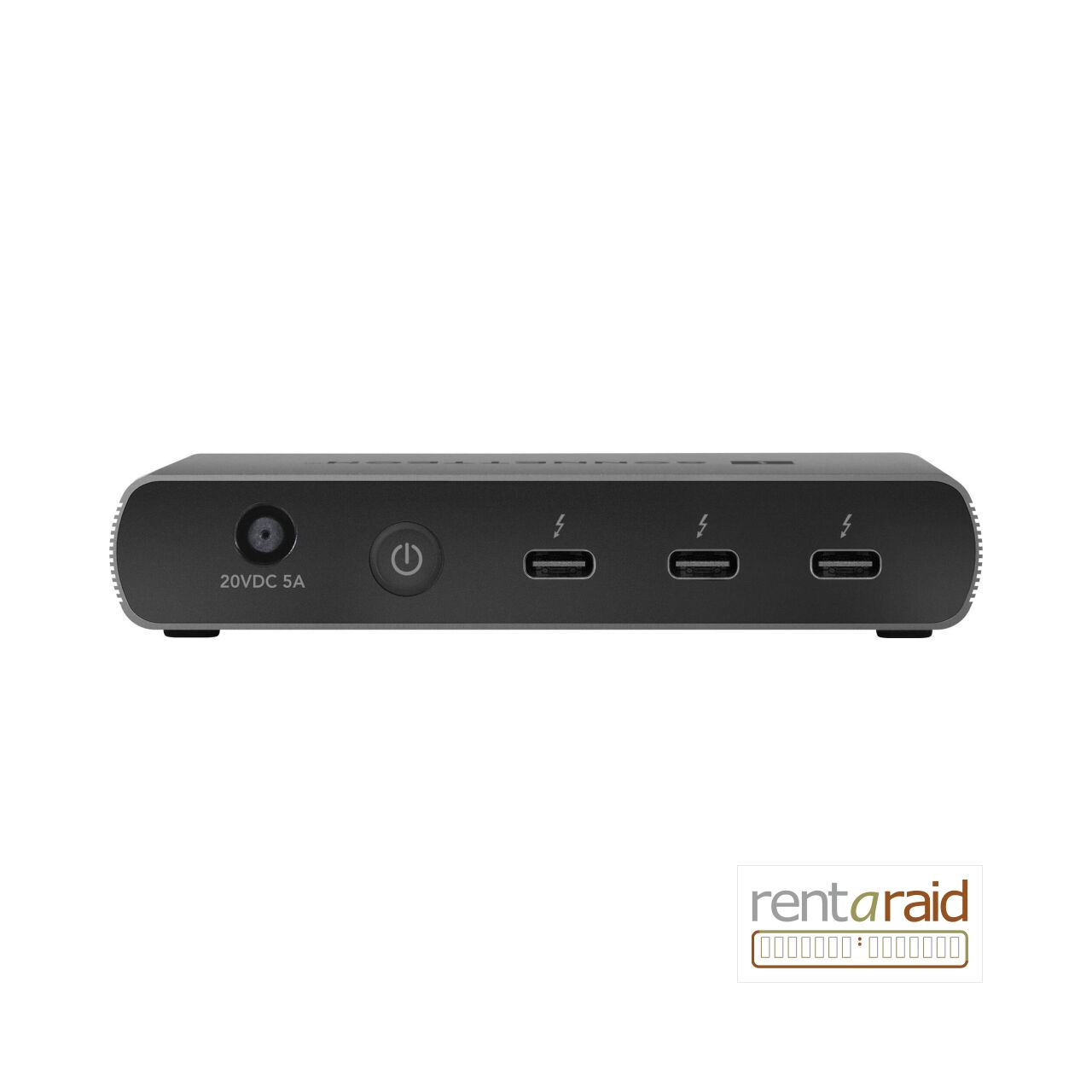

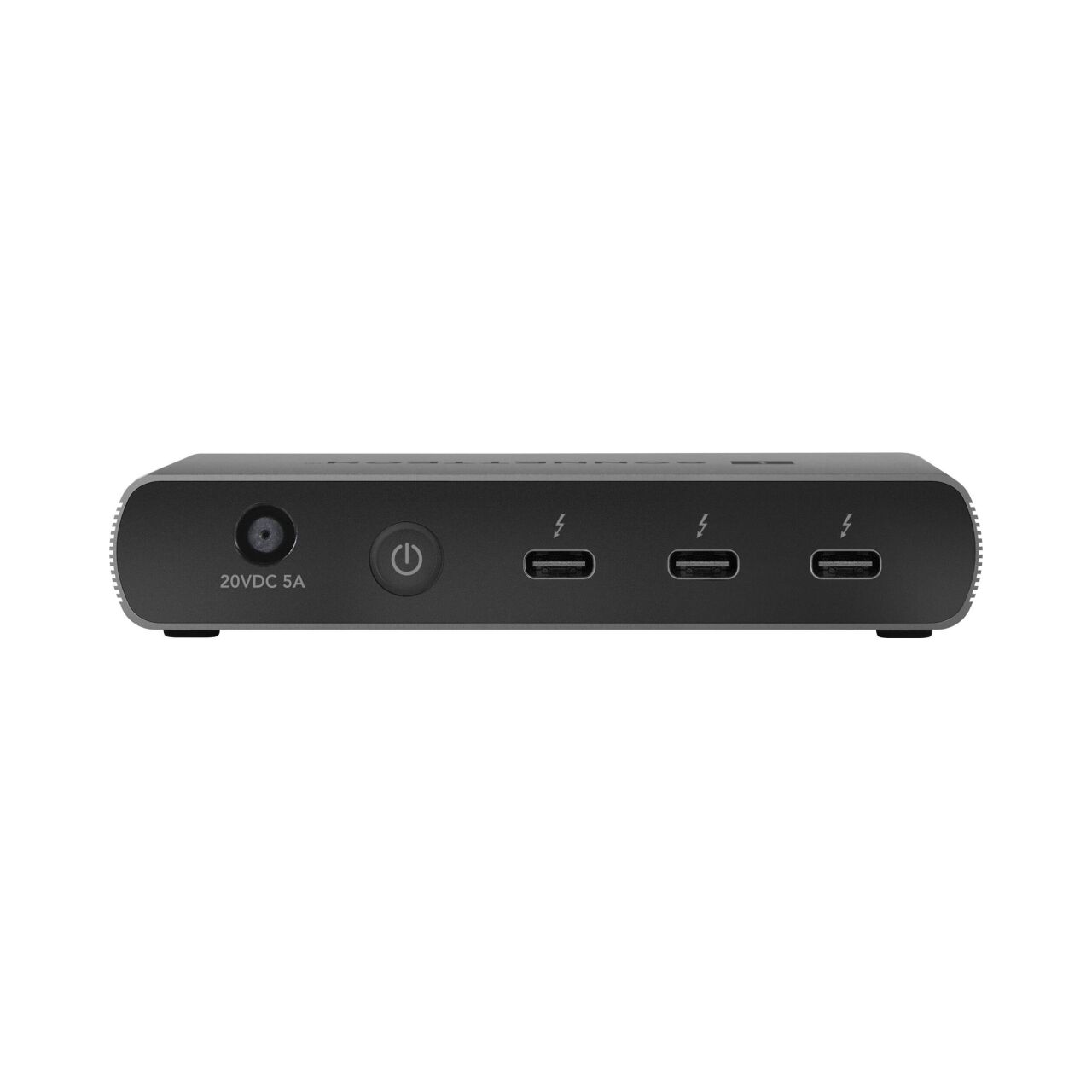

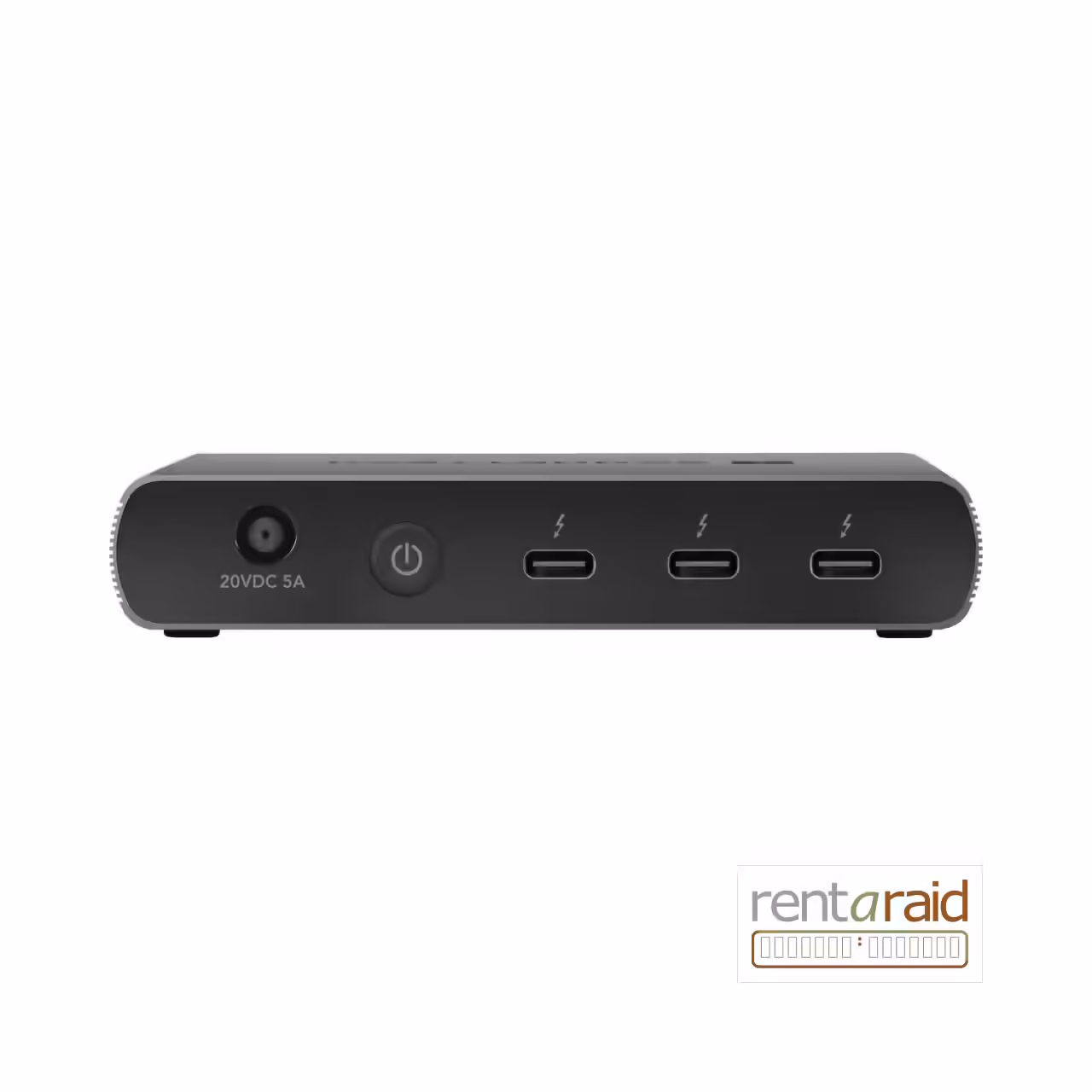

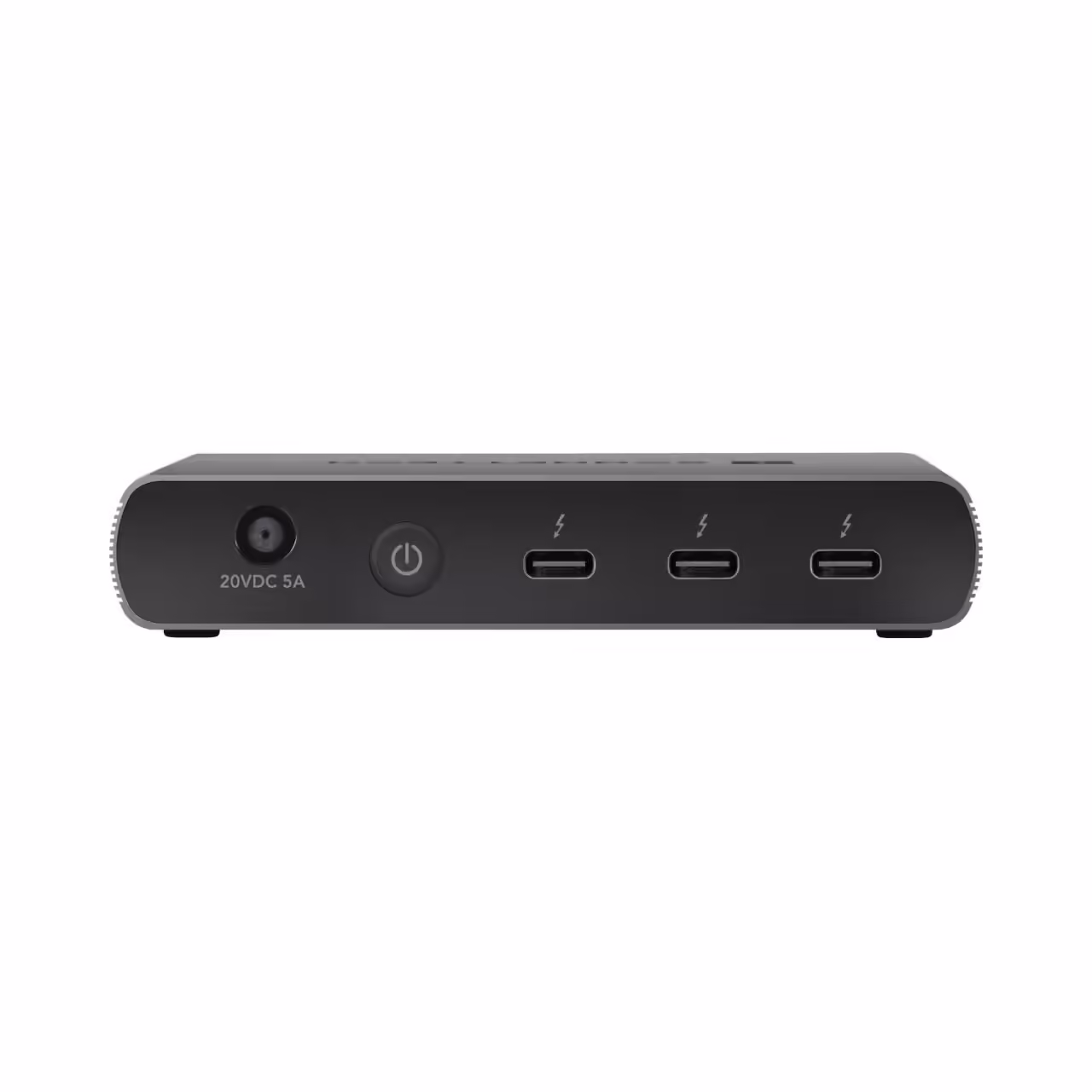

One Thunderbolt 4 port connects to the computer while three independent downstream Thunderbolt 4 ports accept Thunderbolt 4 and Thunderbolt 3 peripherals, Thunderbolt 5 devices at Thunderbolt 4 speeds, USB4 and USB devices, and compatible displays.
40Gbps Thunderbolt 4 Connectivity

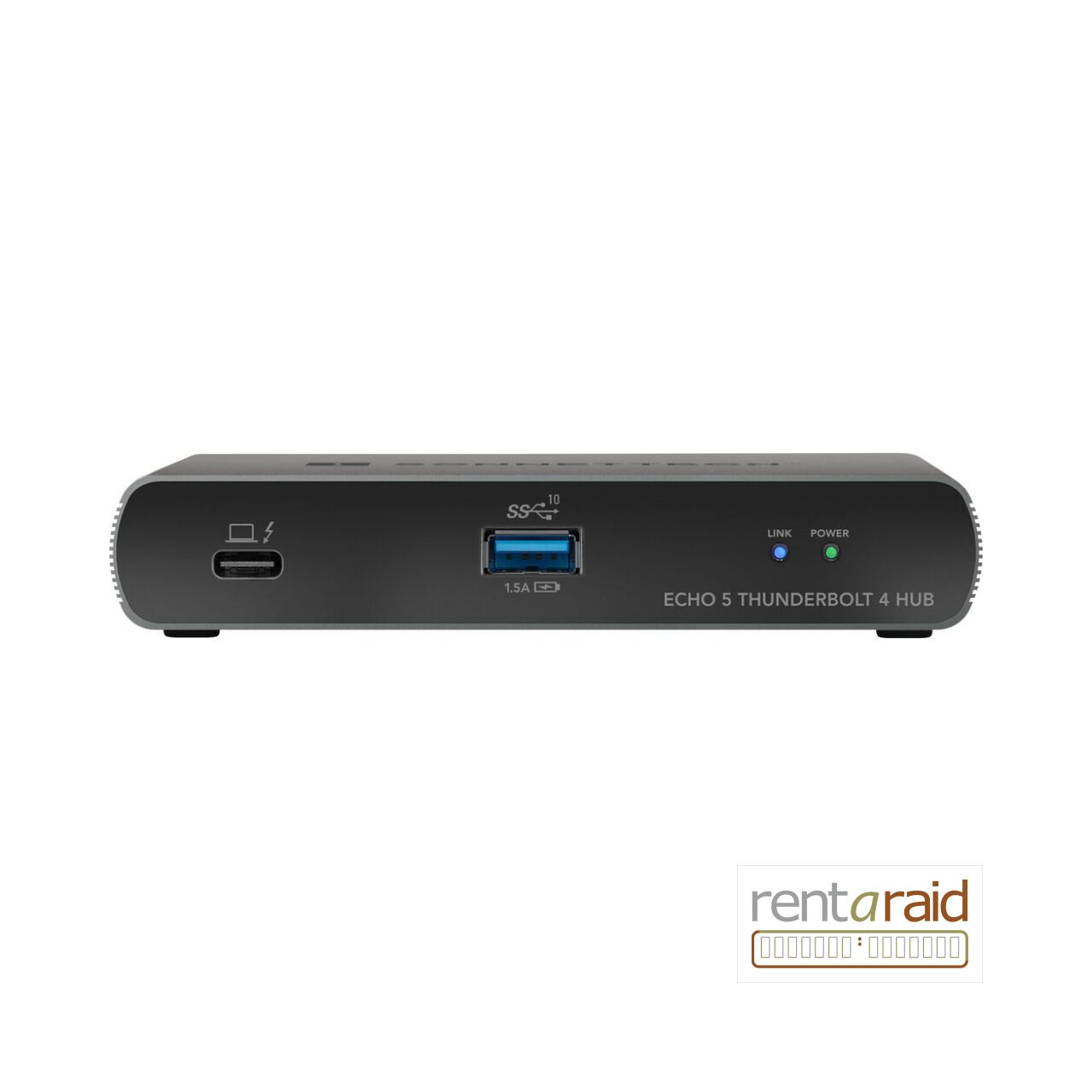

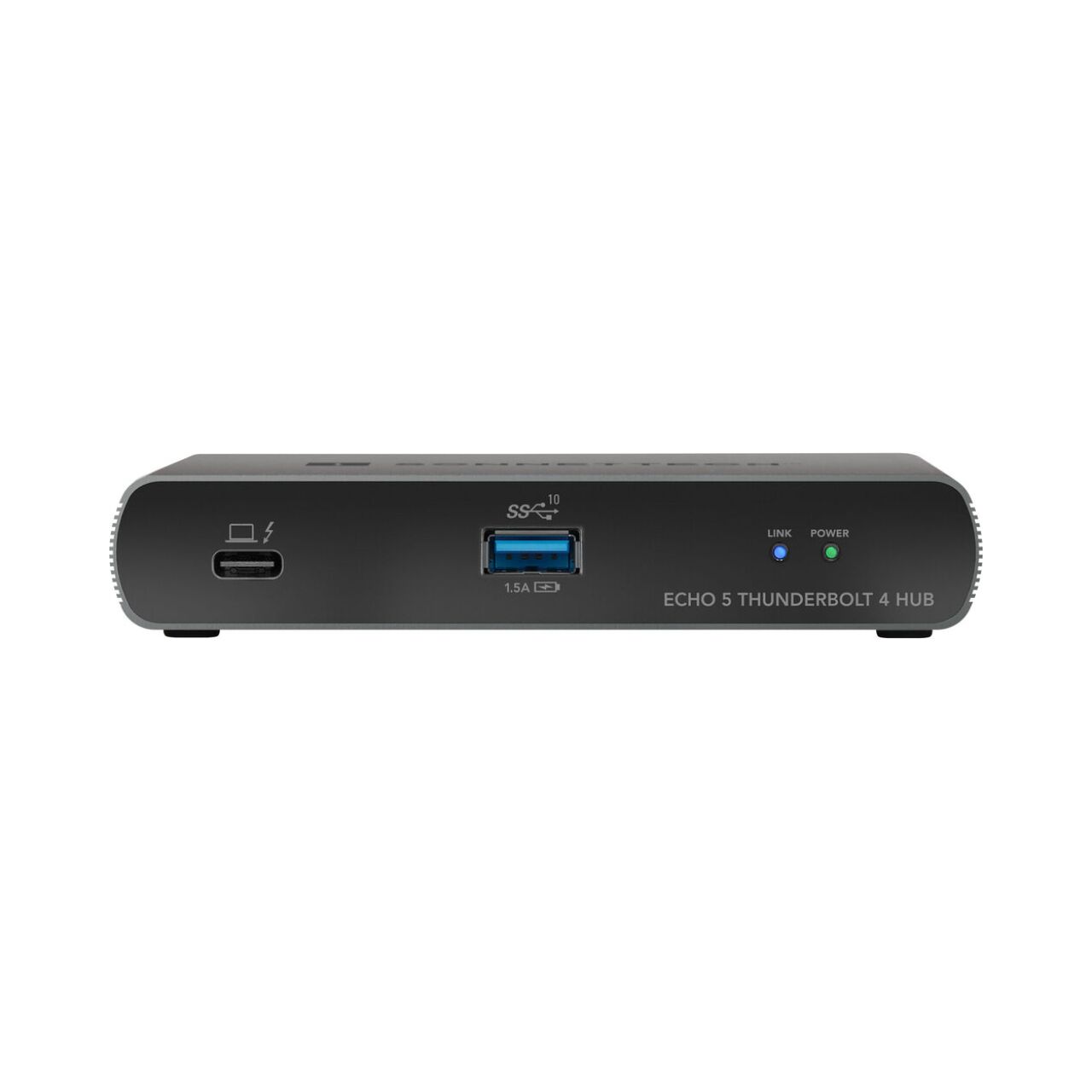

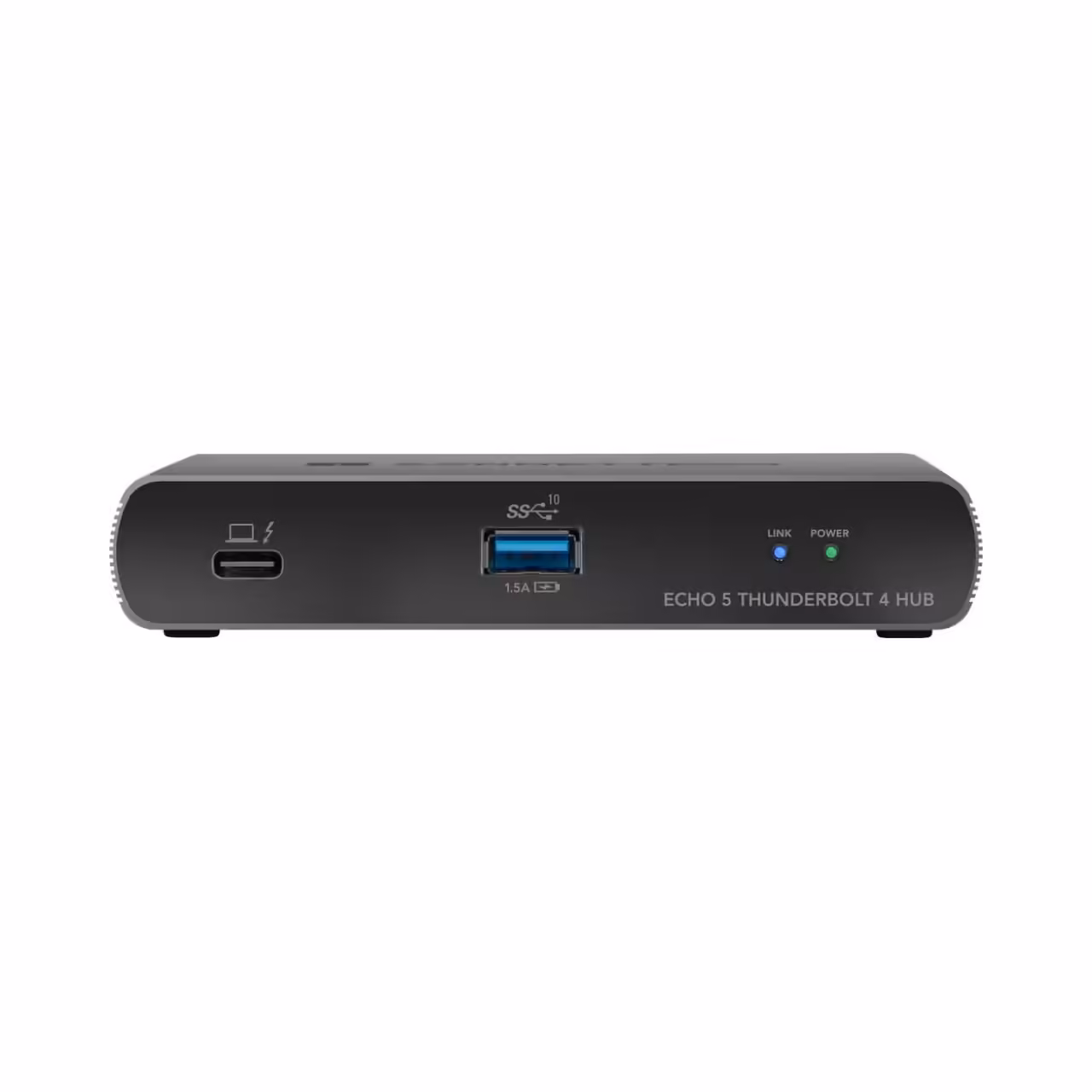

Thunderbolt 4 provides up to 40Gbps of interface bandwidth. The separate USB-A port uses USB 3.2 Gen 2 at up to 10Gbps for storage, capture, input and other USB peripherals.
Useful Power Delivery
The host port provides up to 85W for charging a compatible laptop. Each downstream Thunderbolt port can provide up to 15W, while the USB-A port supplies up to 7.5W and supports simultaneous charging and syncing.
Display And Peripheral Flexibility
The downstream ports support Thunderbolt and USB-C displays, with DisplayPort or HDMI displays supported through compatible adapters. Actual display count and resolution depend on the connected computer.
Desktop Build

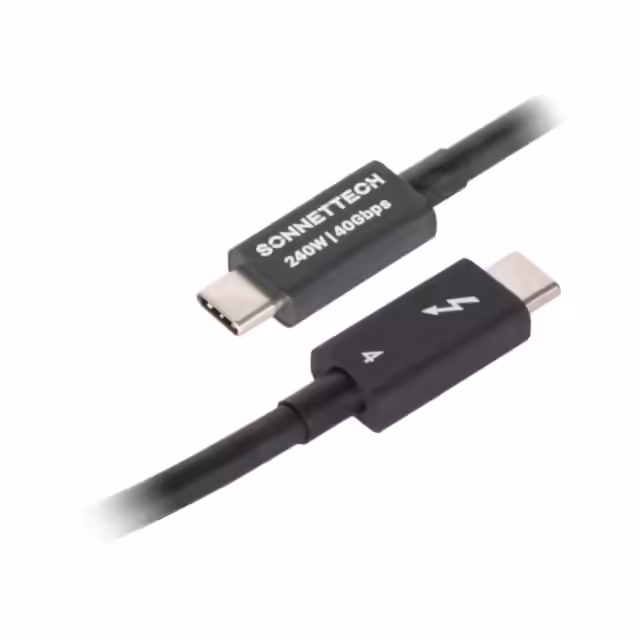

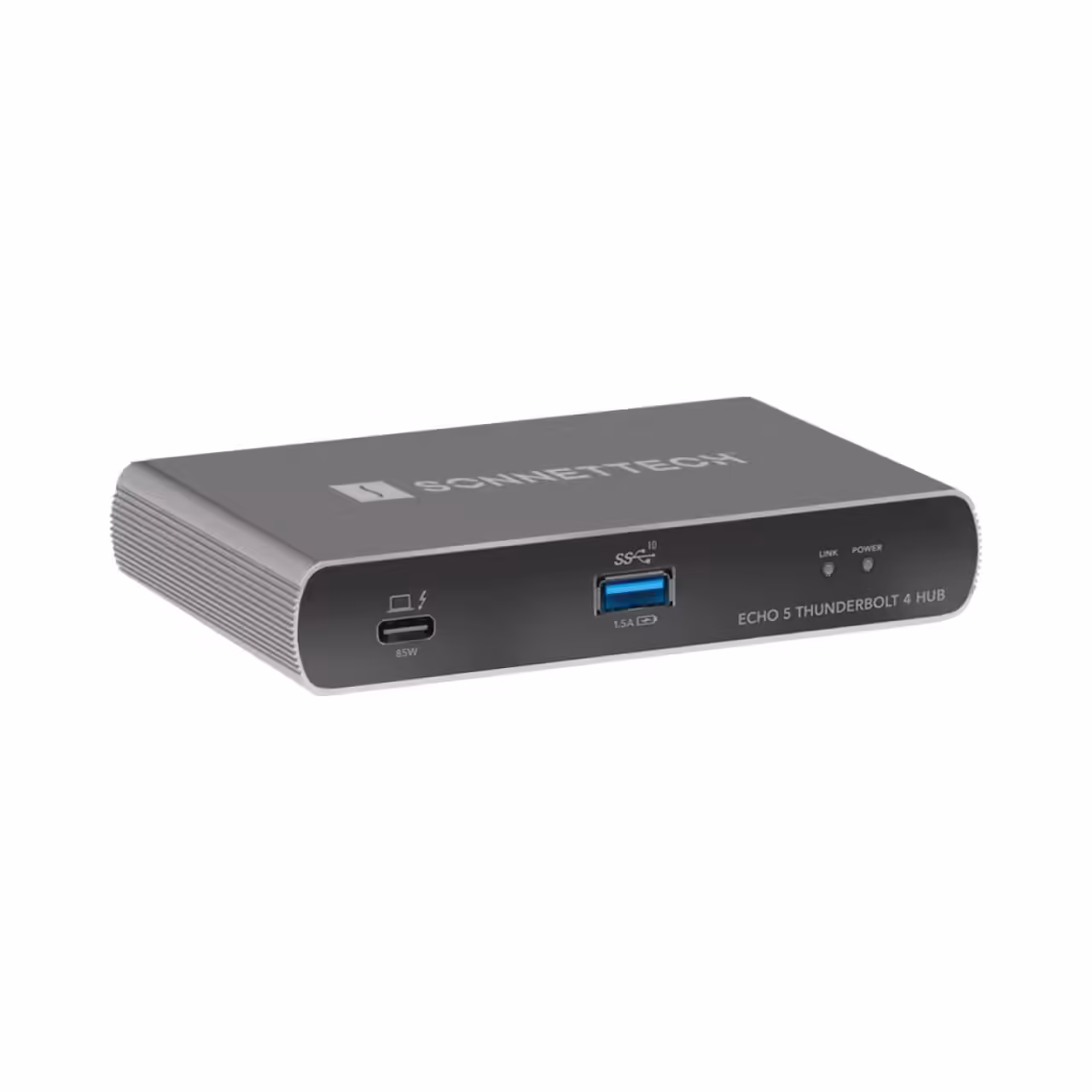

The hub uses an anodised aluminium enclosure and ships with its 100W universal power adapter, power cord and 0.8m Thunderbolt cable.
Sonnet Echo 5 Thunderbolt 4 Hub – Key Features
- Four Thunderbolt 4 ports: one computer connection and three downstream peripheral ports.
- Supports Thunderbolt 4 and 3 devices, Thunderbolt 5 devices at Thunderbolt 4 speeds, USB4 and USB peripherals.
- USB-A 10Gbps USB 3.2 Gen 2 port with up to 7.5W charging.
- Up to 85W laptop charging through the Thunderbolt computer port.
- Up to 15W available from each downstream Thunderbolt port.
- Supports Thunderbolt and USB-C displays, plus DisplayPort/HDMI displays via compatible adapters.
- Includes universal 100W power adapter and 0.8m Thunderbolt cable.
- Anodised aluminium desktop enclosure with two-year Sonnet warranty.
Sonnet Echo 5 Thunderbolt 4 Hub – Technical Specifications
| Product | Sonnet Echo 5 Thunderbolt 4 Hub |
| Sonnet Part Number | ECHO-HB5-T4 |
| Form Factor | Powered Thunderbolt hub |
| Thunderbolt Ports | 4 × Thunderbolt 4 (1 host, 3 downstream) |
| Thunderbolt Bandwidth | Up to 40Gbps |
| USB Port | 1 × USB-A, USB 3.2 Gen 2, up to 10Gbps |
| Host Power Delivery | Up to 85W |
| Downstream Thunderbolt Power | Up to 15W per port |
| USB-A Charging | Up to 7.5W |
| Compatibility | Thunderbolt 4, Thunderbolt 3, Thunderbolt 5 devices at Thunderbolt 4 speeds, USB4 and USB devices |
| Power Adapter | Universal 100W, 100-240V AC |
| Dimensions | 12.9 × 7.2 × 2.16 cm |
| Warranty | 2 years |
