OWC ThunderBay 4 – 32TB Enterprise
32TB Four-Bay Thunderbolt 3 RAID With Enterprise HDDs & 3-Year SoftRAID Premium Licence Included
£ 1,859.95 | £ 2,231.94 inc VAT

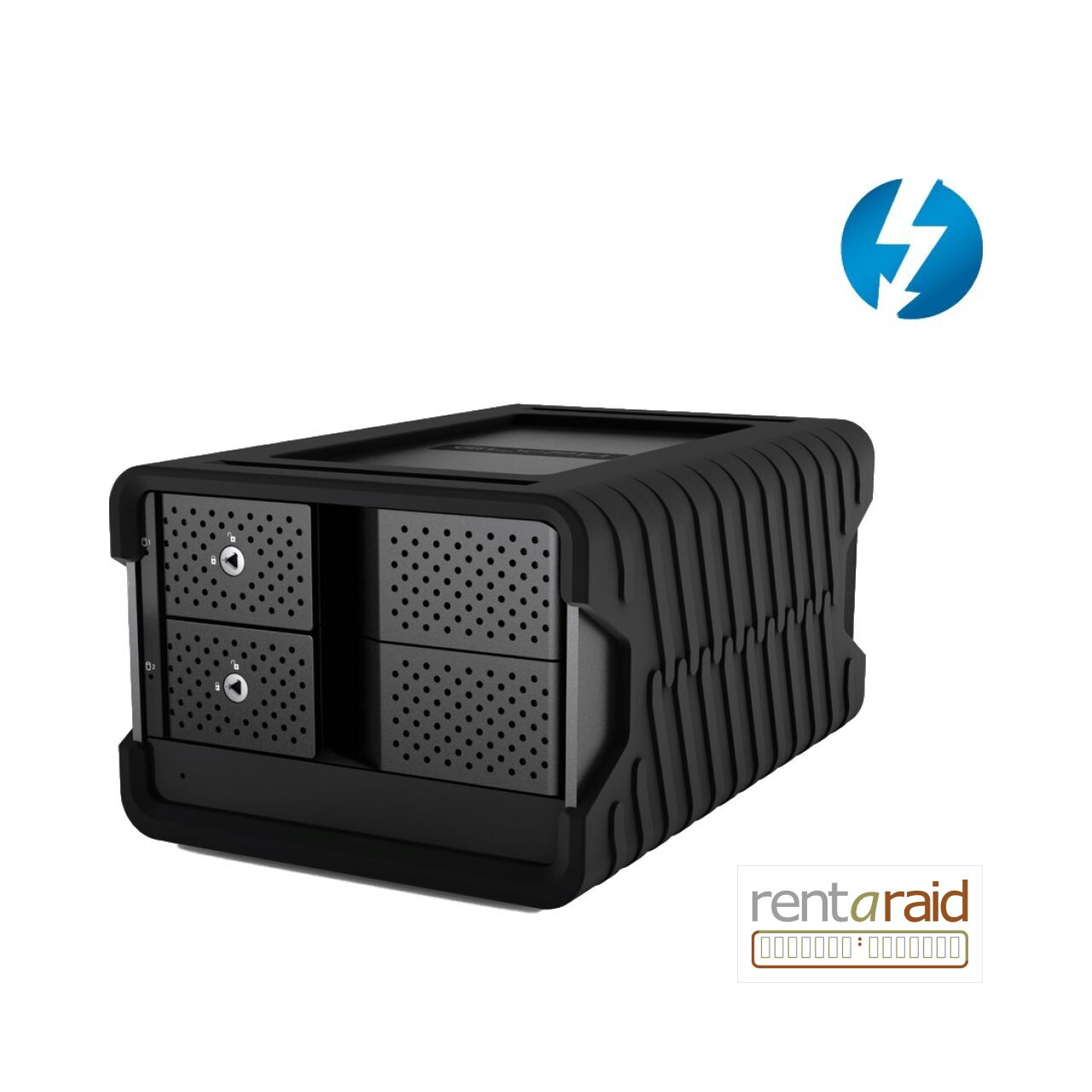

Glyph Blackbox PRO RAID Thunderbolt 3 – 32TB
Glyph Blackbox PRO RAID Thunderbolt 3 – 32TB
32TB Dual-Drive Enterprise Hardware RAID With Dual Thunderbolt 3, DisplayPort And Up To 550MB/s
The Glyph Blackbox PRO RAID Thunderbolt 3 32TB combines two enterprise-class 7,200rpm hard drives with hardware RAID and dual 40Gbps Thunderbolt 3 ports. Glyph specifies transfer speeds up to 550MB/s, while the second Thunderbolt port supports daisy-chaining up to five additional devices.
The system ships in RAID 0 and also supports RAID 1, JBOD/CLEAR and SPAN/BIG without RAID management software. A DisplayPort output supports a direct 4K display, and selected versions add CFast 2.0, SD UHS-II and USB-A 10Gbps connectivity.
- 32TB raw capacity across two enterprise-class 7,200rpm HDDs.
- Dual Thunderbolt 3 40Gbps ports plus DisplayPort.
- RAID 0, RAID 1, JBOD and SPAN hardware modes.
- Up to 550MB/s transfer performance.
- Optional integrated CFast 2.0 / SD UHS-II / USB-A hub version.
Brand: Glyph Technology
Glyph Blackbox PRO RAID Thunderbolt 3 – 32TB – Product Overview
The Glyph Blackbox PRO RAID Thunderbolt 3 32TB is a dual-drive desktop RAID for high-capacity creative storage, media production and project archiving. It combines two enterprise-class 7,200rpm hard drives with a hardware RAID controller, dual Thunderbolt 3 connectivity and DisplayPort.
Dual Thunderbolt 3 Connectivity
Two 40Gbps Thunderbolt 3 ports provide host connectivity and daisy-chain support for up to five additional devices from a single computer connection.
Up To 550MB/s Performance
Glyph specifies transfer speeds up to 550MB/s. Actual performance varies with RAID mode, workload, host system and file system.

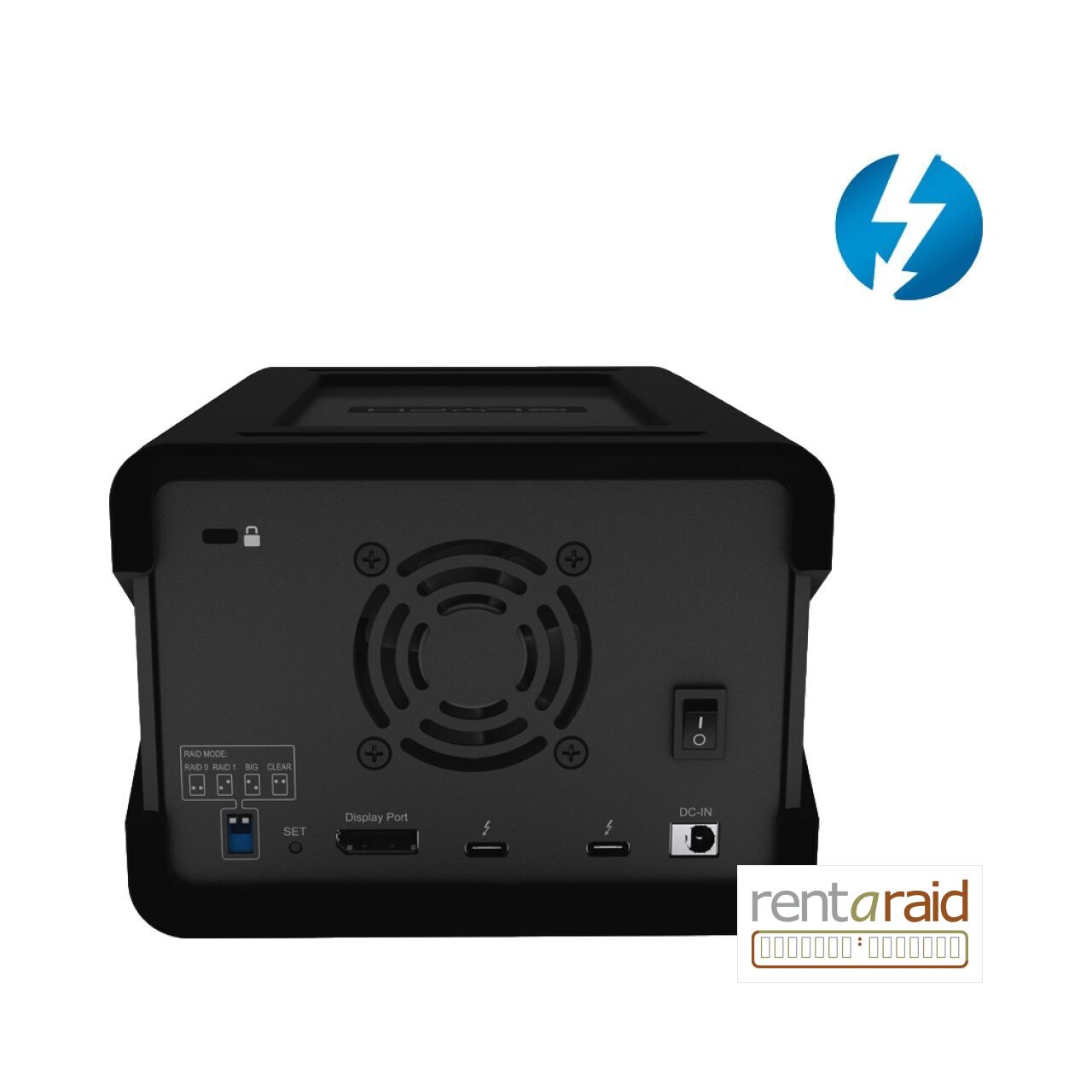

Hardware RAID 0, RAID 1, JBOD And SPAN
The enclosure ships configured as RAID 0 for maximum throughput. RAID 1 mirrors the two drives for redundancy at half the raw capacity. CLEAR/JBOD presents the drives independently, while BIG/SPAN combines their capacity sequentially. RAID mode is controlled by the enclosure hardware and requires no RAID management application.
DisplayPort For A Direct 4K Display
A dedicated DisplayPort output allows a compatible 4K monitor to be connected directly to the Blackbox PRO RAID Thunderbolt 3.

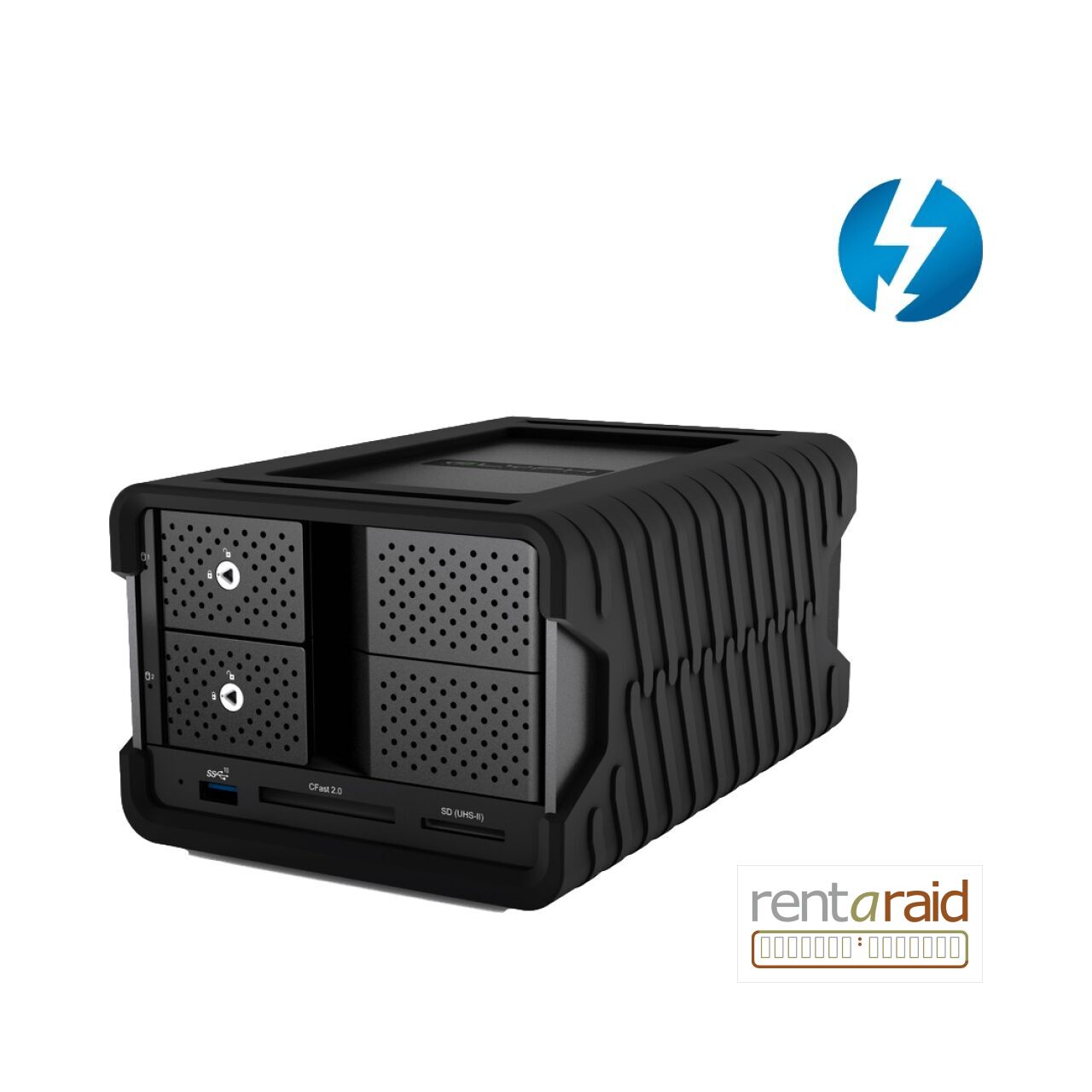

Optional Media Hub Version
Glyph offers versions with an integrated CFast 2.0 reader, SD UHS-II reader and USB Type-A 10Gbps port for media ingest and peripheral connectivity. The standard version omits this hub.
Enterprise-Class Drives And Active Cooling
Two enterprise-class 7,200rpm hard drives sit inside an aluminium desktop enclosure with an intelligent quiet fan for sustained workflows.
Mac And Windows Workflows
The system is supplied formatted for macOS and is Time Machine compatible. It can be reformatted for Windows when required.
Glyph 3-2-1 Warranty
Warranty support provides three years of hardware coverage, two years of Level-1 data recovery and one year of advance replacement.
Glyph Blackbox PRO RAID Thunderbolt 3 – 32TB – Key Features
- 32TB raw capacity across two enterprise-class 7,200rpm hard drives.
- Ships configured as RAID 0.
- Hardware RAID 0, RAID 1, JBOD/CLEAR and SPAN/BIG modes.
- RAID 1 provides mirrored redundancy with half the raw capacity.
- 2 x Thunderbolt 3 ports with 40Gbps link bandwidth.
- Daisy-chain support for up to five additional devices.
- Transfer speeds up to 550MB/s.
- Dedicated DisplayPort for direct 4K monitor connection.
- Optional hub version with CFast 2.0, SD UHS-II and USB-A 10Gbps.
- Intelligent quiet fan and aluminium enclosure.
- External power supply.
- Formatted for macOS and Time Machine compatible; Windows compatible after reformatting.
- Thunderbolt 3 cable and removable protective cover included.
- 3-year hardware warranty, 2-year Level-1 data recovery and 1-year advance replacement.
Glyph Blackbox PRO RAID Thunderbolt 3 – 32TB – Technical Specifications
| Manufacturer | Glyph Production Technologies |
| Product | Blackbox PRO RAID Thunderbolt 3 |
| Manufacturer Part Number - No Hub | BBPR32RDTB3 |
| UPC - No Hub | 691450004689 |
| Manufacturer Part Number - Hub Version | BBPR32RDTB3HUB |
| UPC - Hub Version | 691450004733 |
| Raw Capacity | 32TB |
| Internal Drives | 2 x enterprise-class 7,200rpm HDDs |
| Factory RAID Mode | RAID 0 |
| Supported Storage Modes | RAID 0, RAID 1, JBOD / CLEAR, SPAN / BIG |
| RAID Control | Hardware controlled; no RAID management software required |
| Interface | 2 x Thunderbolt 3 (40Gbps), 1 x DisplayPort |
| Daisy Chain | Up to 5 additional Thunderbolt devices |
| Transfer Speed | Up to 550MB/s |
| Optional Hub Version | CFast 2.0 reader, SD UHS-II reader, USB Type-A 10Gbps port |
| Display Output | DisplayPort; supports direct 4K monitor connection |
| Cooling | Intelligent quiet fan with aluminium enclosure heat dissipation |
| Power | External power supply |
| Default Format | macOS; Time Machine compatible |
| Windows Compatibility | Yes, after reformatting |
| Drive Dimensions | 8.25 x 5.5 x 4.25in |
| Retail Box Dimensions | 10.75 x 10.5 x 4.75in |
| In The Box | Blackbox PRO RAID desktop drive, Thunderbolt 3 cable, rugged removable cover, external power supply |
| Warranty | 3-year hardware; 2-year Level-1 data recovery; 1-year advance replacement |
