Original price was: £ 4,210.82.£ 4,128.95Current price is: £ 4,128.95. | £ 4,954.74 inc VAT

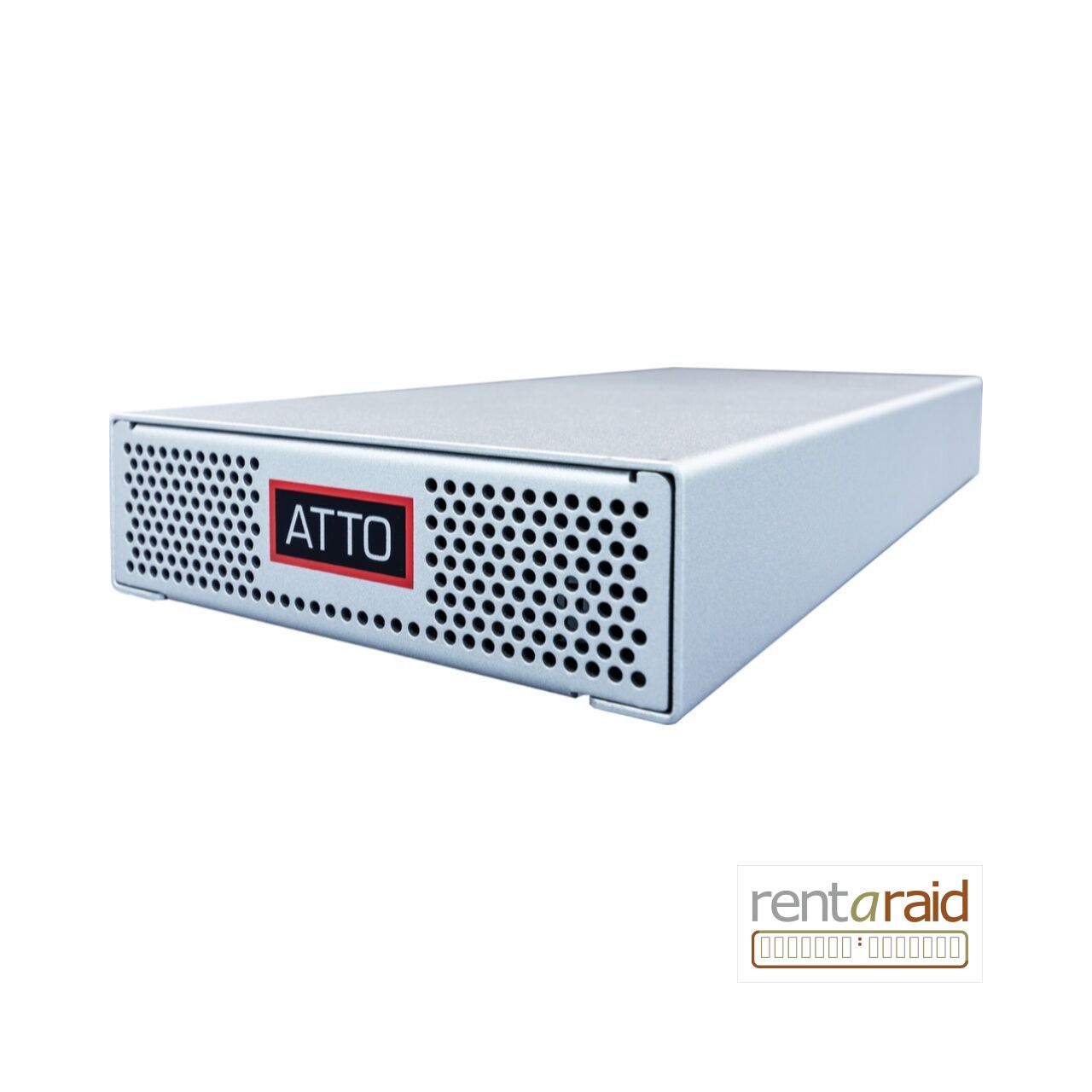

ATTO ThunderLink NS-5254
ATTO ThunderLink NS-5254
Quad-Port Thunderbolt 5 To 25GbE SFP28 Adapter — 4 x SFP28 Optical Transceivers Included
The ATTO ThunderLink NS-5254 connects a Thunderbolt 5 workstation to four 25Gb Ethernet links through SFP28 optical interfaces.
It provides two 80Gb/s Thunderbolt 5 USB-C ports with dedicated host/device roles and four 25GbE SFP28 network ports. ATTO states that optical SFP28 modules are included with the finished-goods product, although its current Store packaging text is inconsistent on the module count.
- 4 x 25GbE SFP28 Ethernet ports.
- 2 x 80Gb/s Thunderbolt 5 USB-C ports with dedicated host/device roles.
- SFP28 optical modules included; exact current package count not asserted.
- ATTO360 Networking, RoCE and hardware offload support.
Brand: ATTO Technology
£ 1,700.95 | £ 2,041.14 inc VAT
Please Call Us For Availability Of This Item
ATTO ThunderLink NS-5254 – Product Overview
Thunderbolt 5 To Quad-Port 25GbE
The ThunderLink NS-5254 provides four independent 25GbE SFP28 links for high-bandwidth media, storage, backup and compute workflows that benefit from dense Ethernet connectivity.
Dedicated Thunderbolt Host And Device Ports
Two 80Gb/s Thunderbolt 5 USB-C ports provide dedicated host and downstream-device roles under ATTO's current ThunderLink 5 installation model.

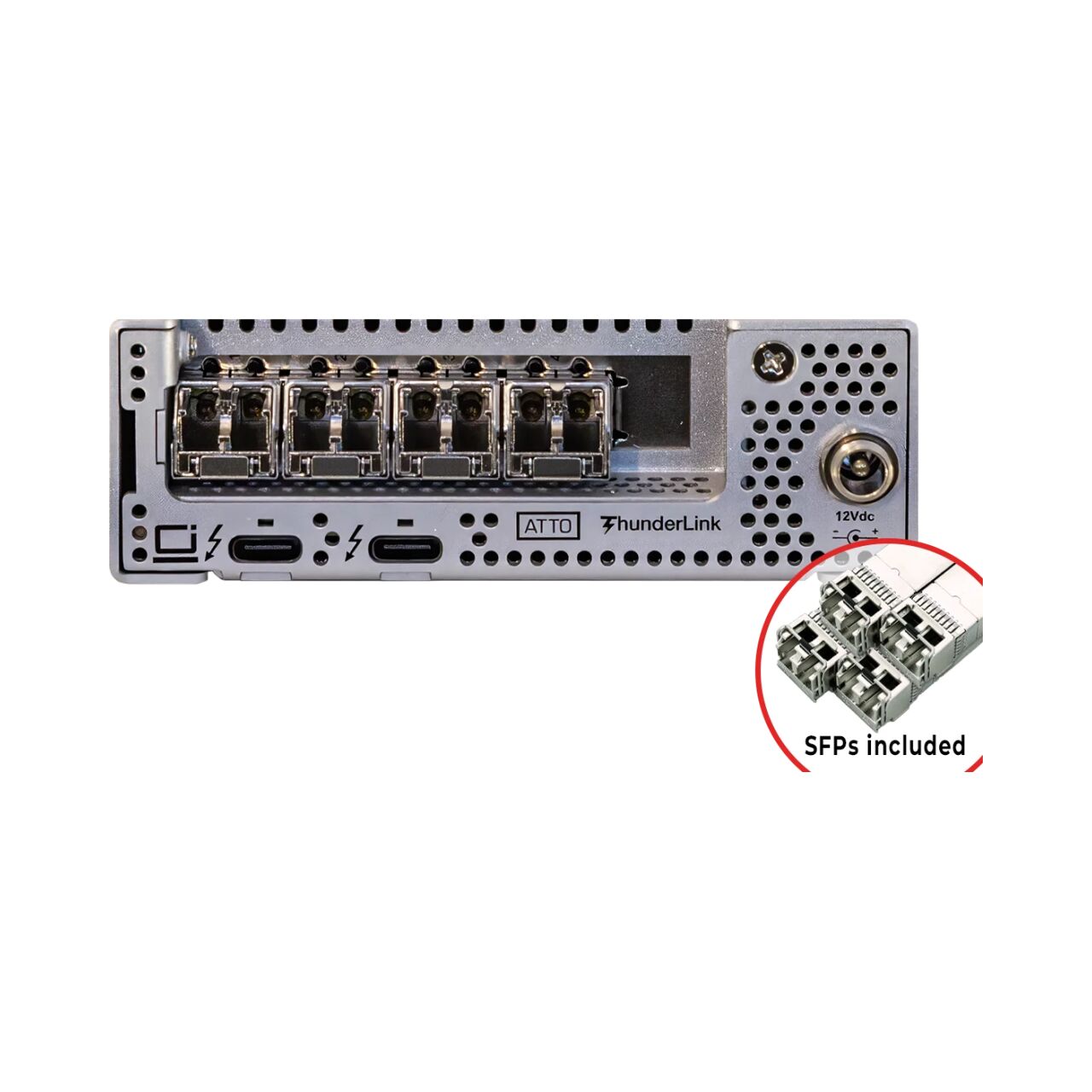

Four 25GbE SFP28 Ports
Each Ethernet port supports a 25Gb/s data rate. ATTO's current product information states that SFP28 optical modules are included, but its Store packaging copy is inconsistent on the precise module quantity, so this page does not assert a count.
Networking Acceleration And Management
ATTO360 Networking provides tuning, monitoring and diagnostics. Hardware capabilities include SR-IOV, advanced packet filtering, VLAN/QoS functions, checksum and segmentation offloads, and RoCE v1/v2 RDMA support on supported Windows and Linux platforms.
ATTO ThunderLink NS-5254 – Key Features
- Four 25GbE SFP28 Ethernet ports.
- SFP28 optical modules included; package count not stated due to conflicting current ATTO packaging information.
- Dual 80Gb/s Thunderbolt 5 USB-C ports with dedicated host/device roles.
- 25Gb/s data rate per Ethernet port.
- ATTO360 Networking support.
- SR-IOV hardware virtualisation support.
- RoCE v1/v2 RDMA support for Windows and Linux.
- Advanced packet filtering, VLAN and QoS features.
- TCP/UDP/IP and segmentation hardware offloads.
- macOS, Windows and Linux driver support.
- Three-year standard warranty.
ATTO ThunderLink NS-5254 – Technical Specifications
| Model | ATTO ThunderLink NS-5254 |
| SKU | TLNS-5254-DE0 |
| Thunderbolt Interface | 2 x 80Gb/s Thunderbolt 5 USB-C; dedicated host and device roles |
| Ethernet Ports | 4 x 25GbE |
| Ethernet Connector | SFP28 |
| Included Optics | SFP28 optical modules included; exact current package count unable to verify from conflicting ATTO Store copy |
| Networking Features | SR-IOV, RoCE v1/v2, VLAN, QoS, packet filtering, checksum and segmentation offloads |
| Management | ATTO360 Networking |
| Operating Systems | macOS, Windows, Linux |
| Dimensions | 9.45 x 4.07 x 1.38 in |
| Power Adapter Input | 100-240VAC, 50-60Hz, 0.6A max |
| Power Adapter Output | 12VDC |
| Operating Temperature | 0°C to 40°C at 10,000ft |
| Storage Temperature | -40°C to 70°C |
| Warranty | 3 years |
