£ 1,144.95 | £ 1,373.94 inc VAT
ATTO ThunderLink NS-5102
ATTO ThunderLink NS-5102
Dual-Port Thunderbolt 5 To Dual 100GbE QSFP28 Adapter — 2 x QSFP28 Transceivers Included
The ATTO ThunderLink NS-5102 connects a Thunderbolt 5 workstation to two 100Gb Ethernet links through QSFP28 optical interfaces.
Its two Thunderbolt 5 USB-C ports provide dedicated host and downstream-device roles, while the UK/EMEA TLNS-5102-DE0 package includes two QSFP28 optical modules.
- 2 x 100GbE QSFP28 network ports.
- 2 x 80Gb/s Thunderbolt 5 USB-C ports with dedicated host/device roles.
- Two QSFP28 optical modules included with the DE0 finished-goods SKU.
- ATTO360 Networking, RoCE and hardware offload support.
Brand: ATTO Technology
£ 2,060.95 | £ 2,473.14 inc VAT
In Stock
ATTO ThunderLink NS-5102 – Product Overview
Thunderbolt 5 To Dual 100GbE
The ThunderLink NS-5102 provides two 100GbE QSFP28 ports for bandwidth-intensive media, storage, backup and compute workflows.

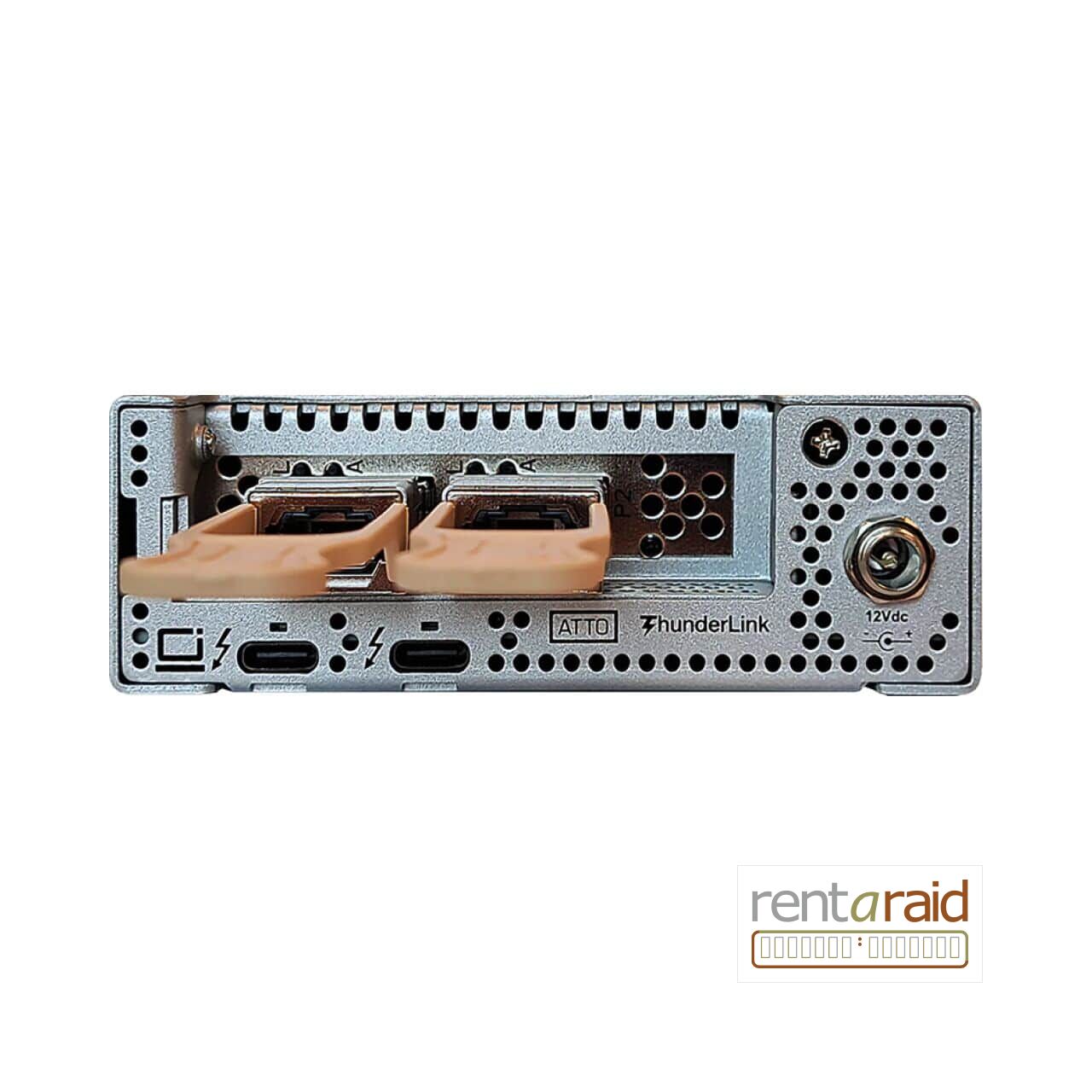

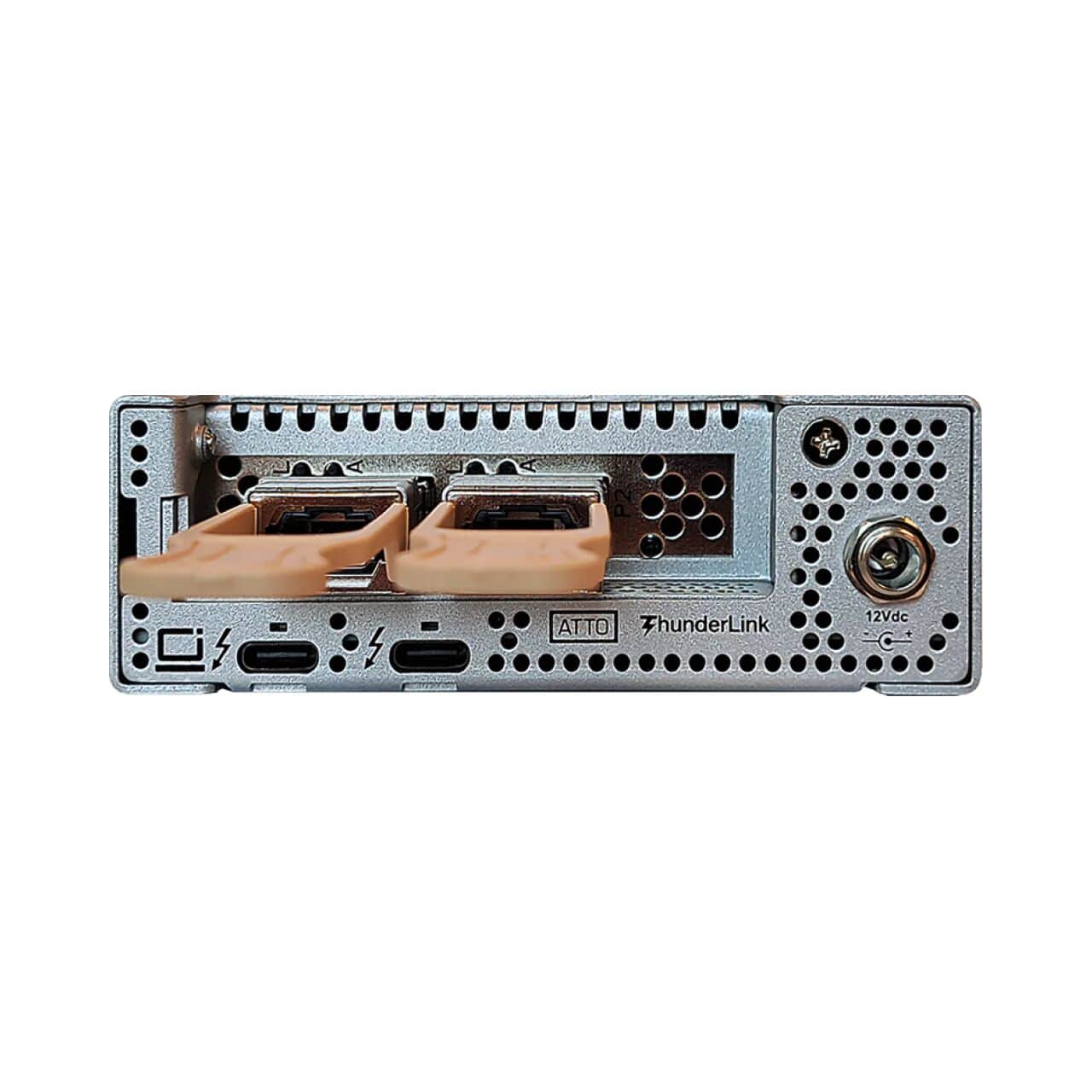

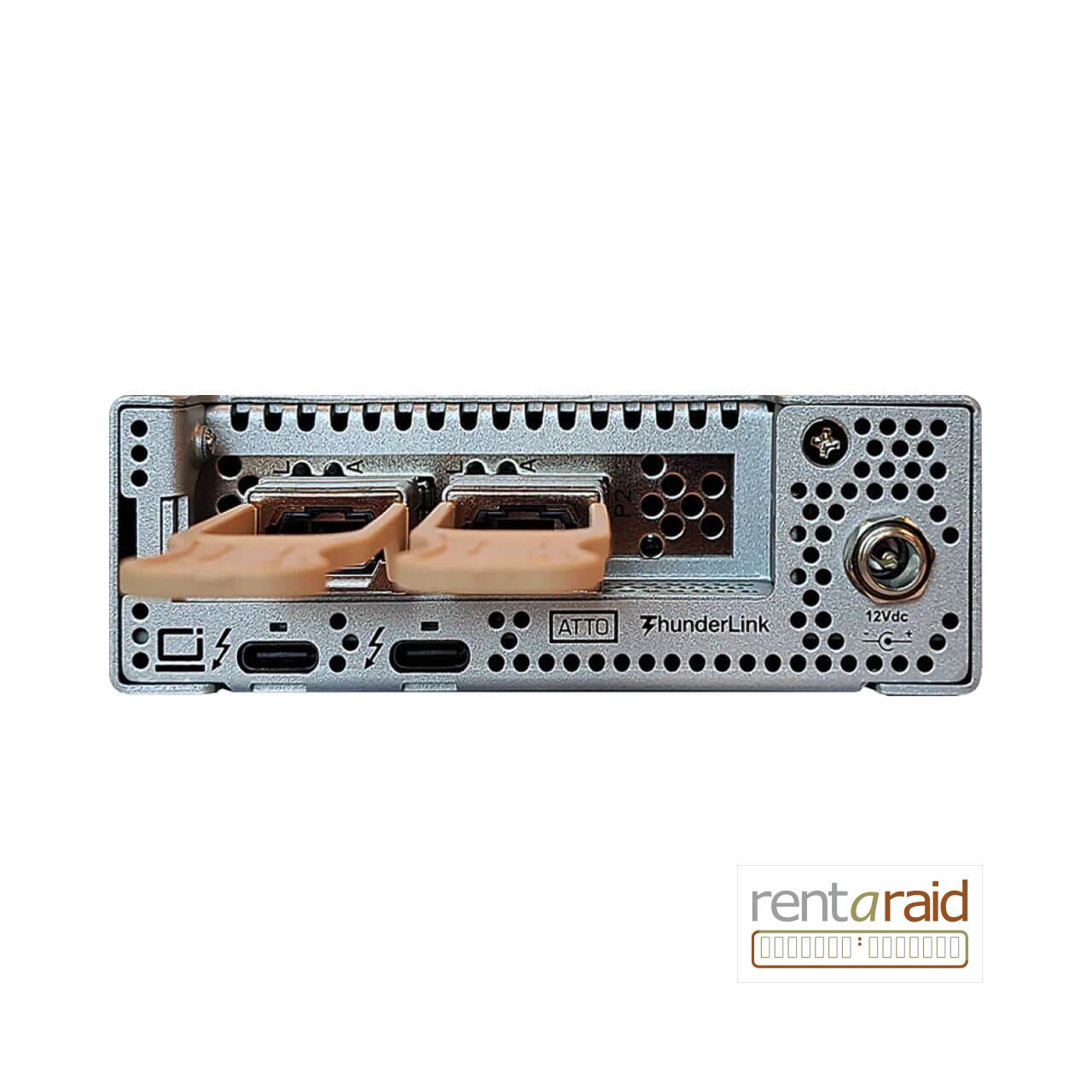

Dedicated Thunderbolt Host And Device Ports
The enclosure has two 80Gb/s Thunderbolt 5 USB-C ports. ATTO's current ThunderLink 5 manual identifies dedicated host and downstream-device roles, supporting a clean Thunderbolt daisy-chain topology.

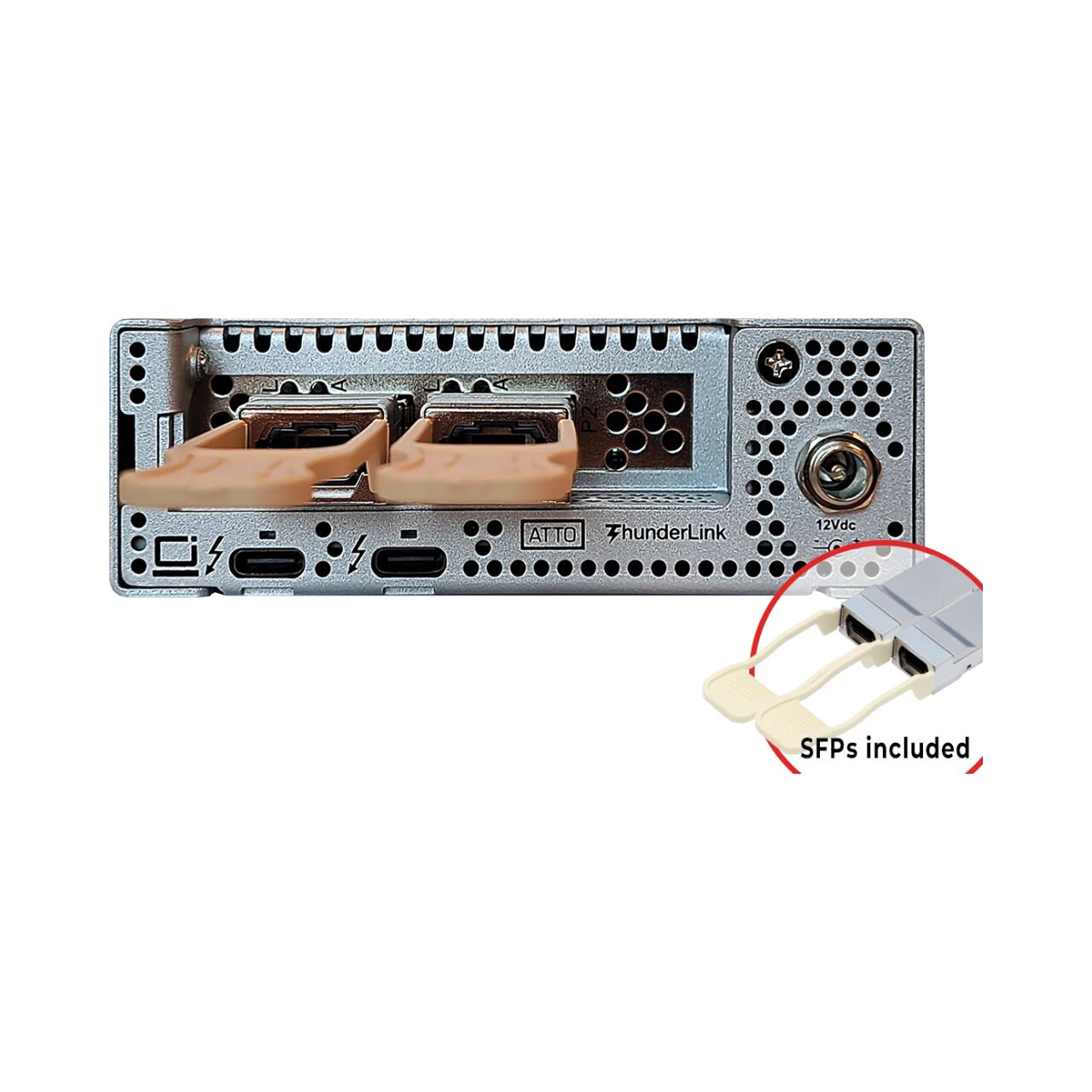

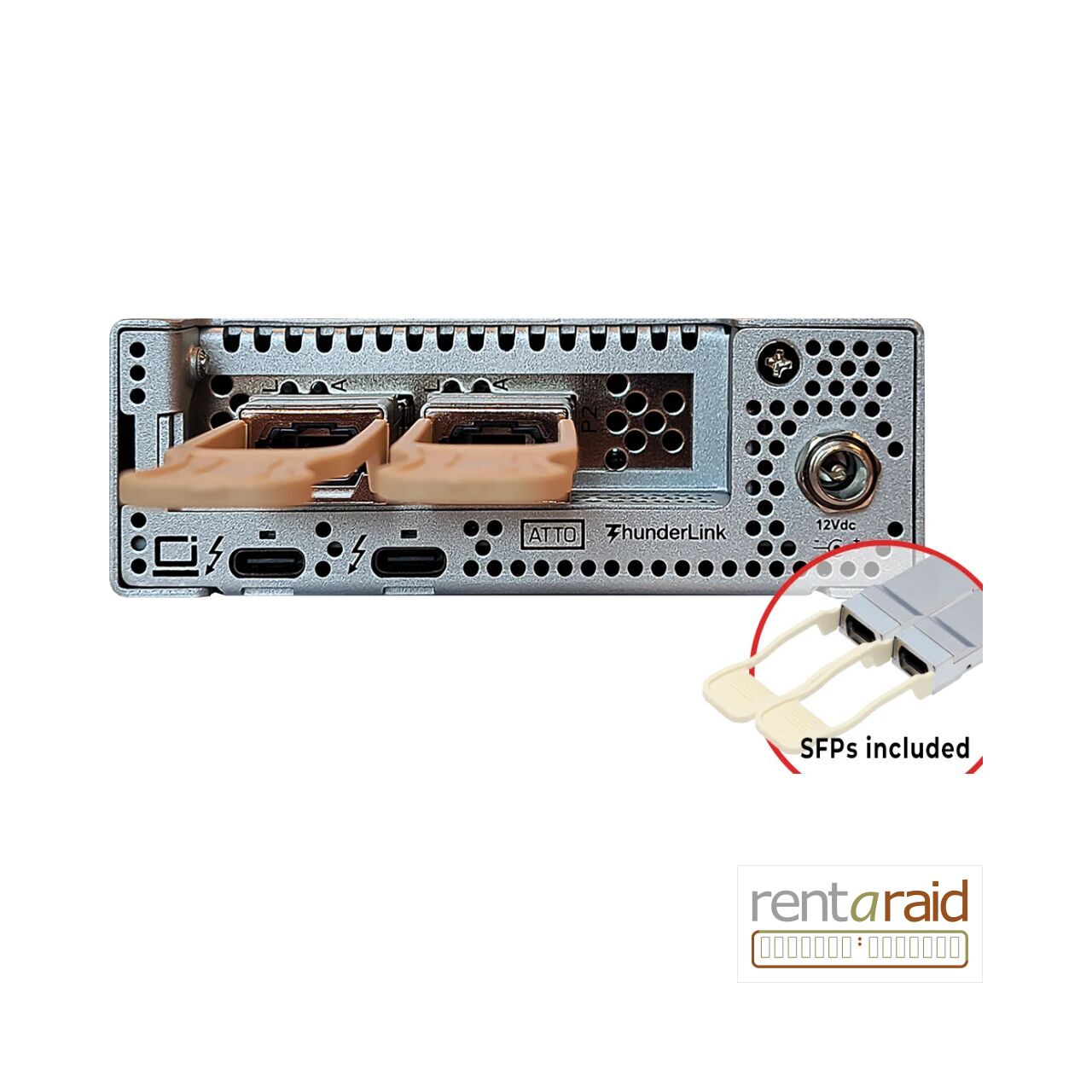

100GbE Optical Connectivity
The TLNS-5102-DE0 UK/EMEA finished-goods package includes two QSFP28 optical modules. ATTO specifies up to 100 metres over OM4 and 70 metres over OM3 when using its 100G QSFP28 optics.
Networking Acceleration And Management
ATTO360 Networking provides tuning, monitoring and diagnostics. Hardware capabilities include SR-IOV, checksum and segmentation offloads, VLAN/QoS features and RoCE v1/v2 RDMA support on supported Windows and Linux platforms.
ATTO ThunderLink NS-5102 – Key Features
- Dual 100GbE QSFP28 Ethernet ports.
- Two QSFP28 optical modules included with TLNS-5102-DE0.
- Dual 80Gb/s Thunderbolt 5 USB-C ports with dedicated host/device roles.
- Thunderbolt device daisy-chain support.
- 100Gb/s data rate per Ethernet port.
- ATTO360 Networking support.
- SR-IOV hardware virtualisation support.
- RoCE v1/v2 RDMA support for Windows and Linux.
- TCP/UDP/IP and segmentation hardware offloads.
- Advanced packet filtering, VLAN and QoS features.
- macOS, Windows and Linux driver support.
- Three-year standard warranty.
ATTO ThunderLink NS-5102 – Technical Specifications
| Model | ATTO ThunderLink NS-5102 |
| SKU | TLNS-5102-DE0 |
| Thunderbolt Interface | 2 x 80Gb/s Thunderbolt 5 USB-C; dedicated host and device roles |
| Ethernet Ports | 2 x 100GbE |
| Ethernet Connector | QSFP28 |
| Included Optics | 2 x QSFP28 optical modules with UK/EMEA DE0 finished-goods SKU |
| Optical Reach | Up to 100m OM4 / 70m OM3 with ATTO 100G QSFP28 optics |
| Networking Features | SR-IOV, RoCE v1/v2, VLAN, QoS, packet filtering, checksum and segmentation offloads |
| Management | ATTO360 Networking |
| Operating Systems | macOS, Windows, Linux |
| Dimensions | 9.45 x 4.07 x 1.38 in |
| Power Adapter Input | 100-240VAC, 50-60Hz, 0.6A max |
| Power Adapter Output | 12VDC |
| Operating Temperature | 0°C to 40°C at 10,000ft |
| Storage Temperature | -40°C to 70°C |
| Warranty | 3 years |
