£ 1,157.95 | £ 1,389.54 inc VAT

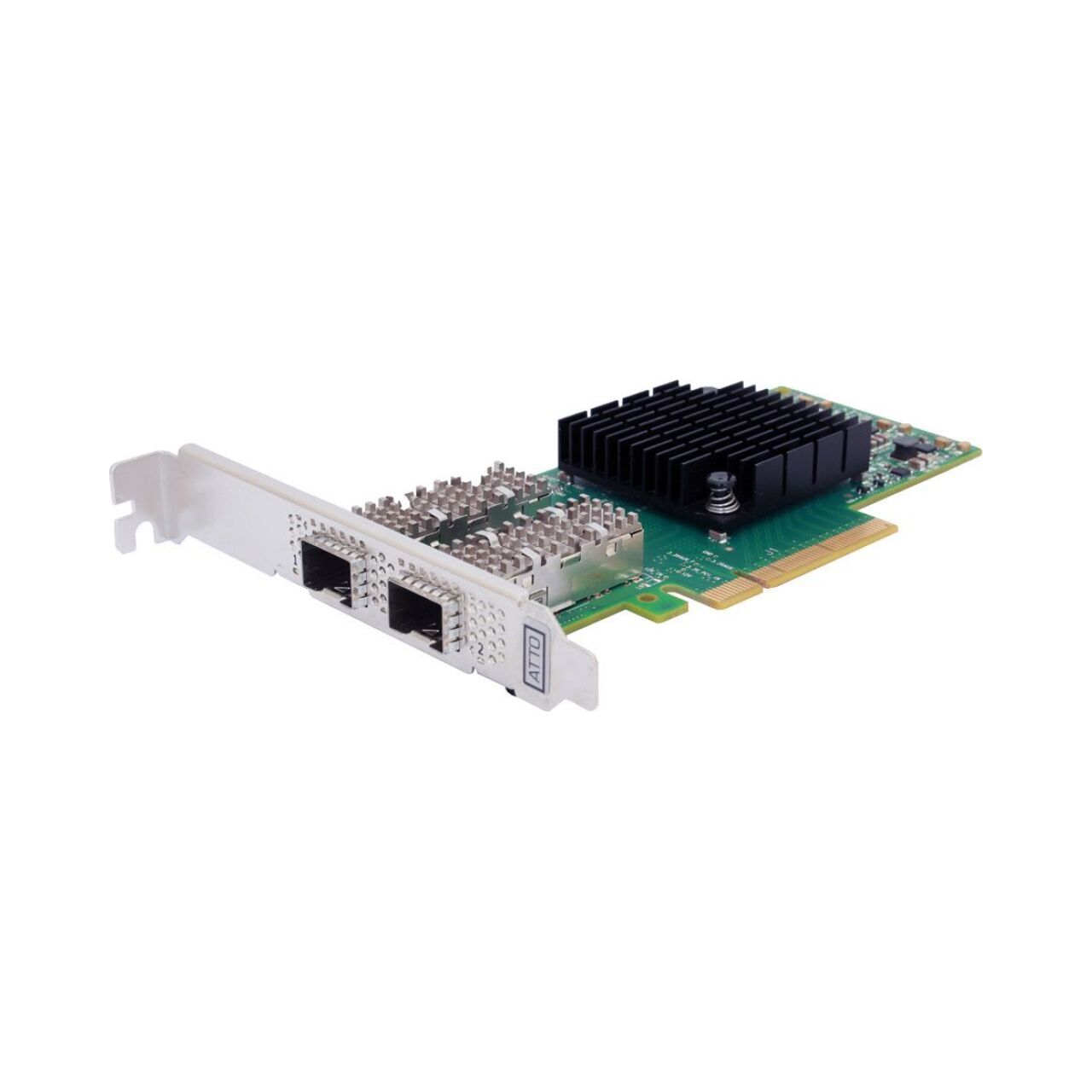

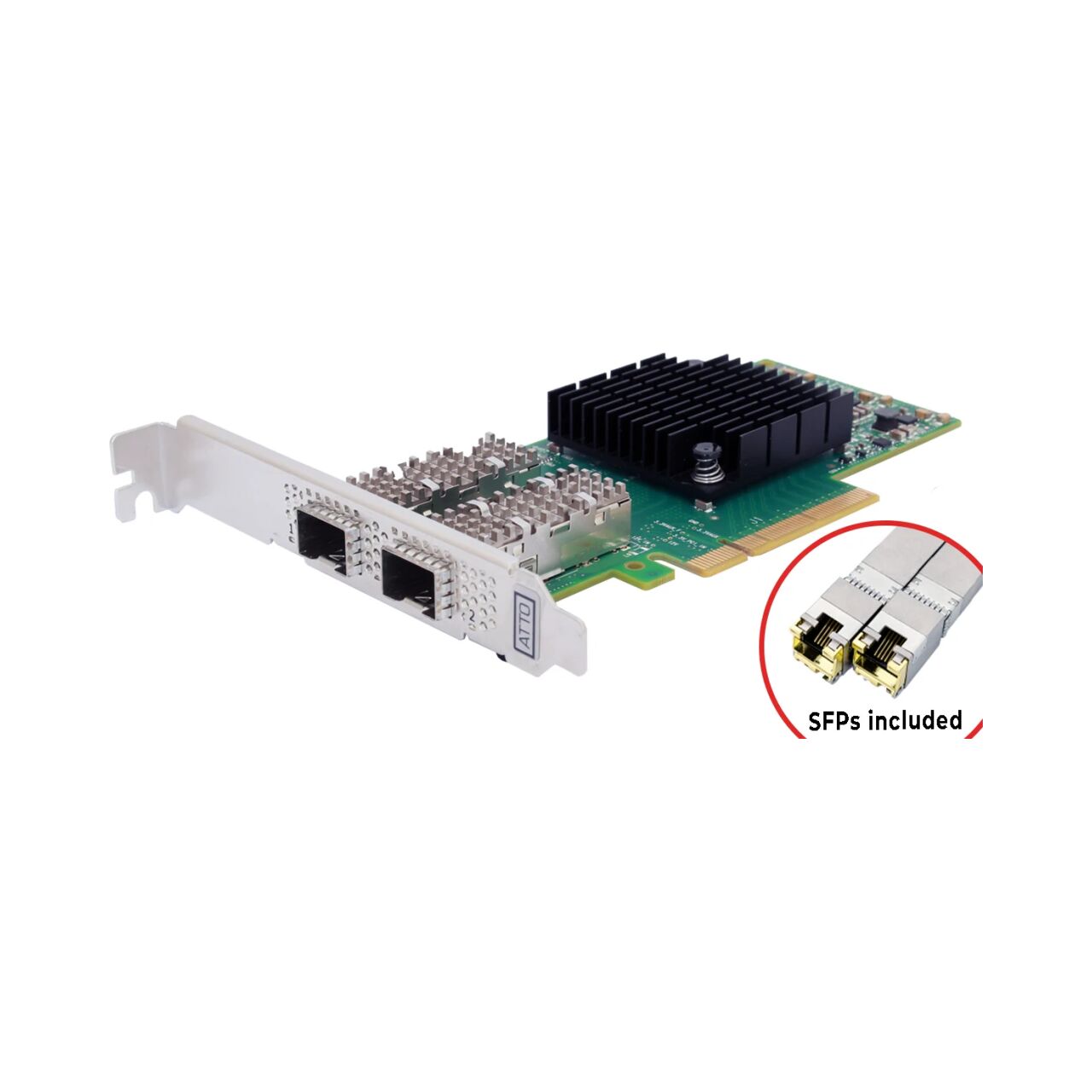

ATTO FastFrame N322-10T
ATTO FastFrame N322-10T
Dual-Port 10GBASE-T PCIe 3.0 x8 SmartNIC With RJ45
The ATTO FastFrame N322-10T is a dual-port 10GBASE-T SmartNIC for high-performance Ethernet over standard copper cabling.
Two RJ45 ports provide 10GbE connectivity through a PCIe 3.0 x8 host interface, making it suited to short-distance server, workstation and storage networks.
- 2 x RJ45 10GBASE-T ports.
- PCIe 3.0 x8 host interface.
- 10Gb/s throughput per port.
- RoCE and stateless networking offloads.
Brand: ATTO Technology
£ 632.95 | £ 759.54 inc VAT
Please Call Us For Availability Of This Item
ATTO FastFrame N322-10T – Product Overview
Dual-Port 10GBASE-T Ethernet
The FastFrame N322-10T provides two RJ45 copper Ethernet ports for integration with 10GBASE-T switches and structured cabling.
PCIe 3.0 x8 Host Interface
The low-profile adapter uses an x8 PCIe 3.0 host connection and is designed for straightforward server and workstation deployment.
Copper Network Integration
RJ45 connectivity allows the N322-10T to use compatible twisted-pair copper cabling for short- and medium-distance 10GbE links without external optical transceivers.
Hardware Offloads And RDMA
RoCE, Data Center Bridging and TCP/UDP/IP stateless offloads reduce CPU overhead in storage and compute workloads.
ATTO FastFrame N322-10T – Key Features
- Two RJ45 10GBASE-T Ethernet ports.
- PCIe 3.0 x8 host interface.
- 10Gb/s throughput per port.
- Low-profile form factor.
- RDMA over Converged Ethernet (RoCE).
- Data Center Bridging support.
- TCP/UDP/IP stateless hardware offloads.
- Jumbo frames up to 9,000 bytes.
- Windows, Linux and macOS support.
- Three-year standard warranty.
ATTO FastFrame N322-10T – Technical Specifications
| Model | ATTO FastFrame N322-10T |
| SKU | FFRM-N322-10T |
| Ethernet Ports | 2 |
| Link Speed | 10Gb/s per port |
| Connector | RJ45 |
| Interface | 10GBASE-T |
| Host Interface | PCIe 3.0 x8 |
| Form Factor | Low profile |
| Jumbo Frames | Up to 9,000 bytes |
| Networking Features | RoCE, DCB, TCP/UDP/IP stateless offloads |
| Supported Platforms | Windows, Linux, macOS |
| Operating Temperature | 0°C to 55°C |
| Warranty | 3 years |
