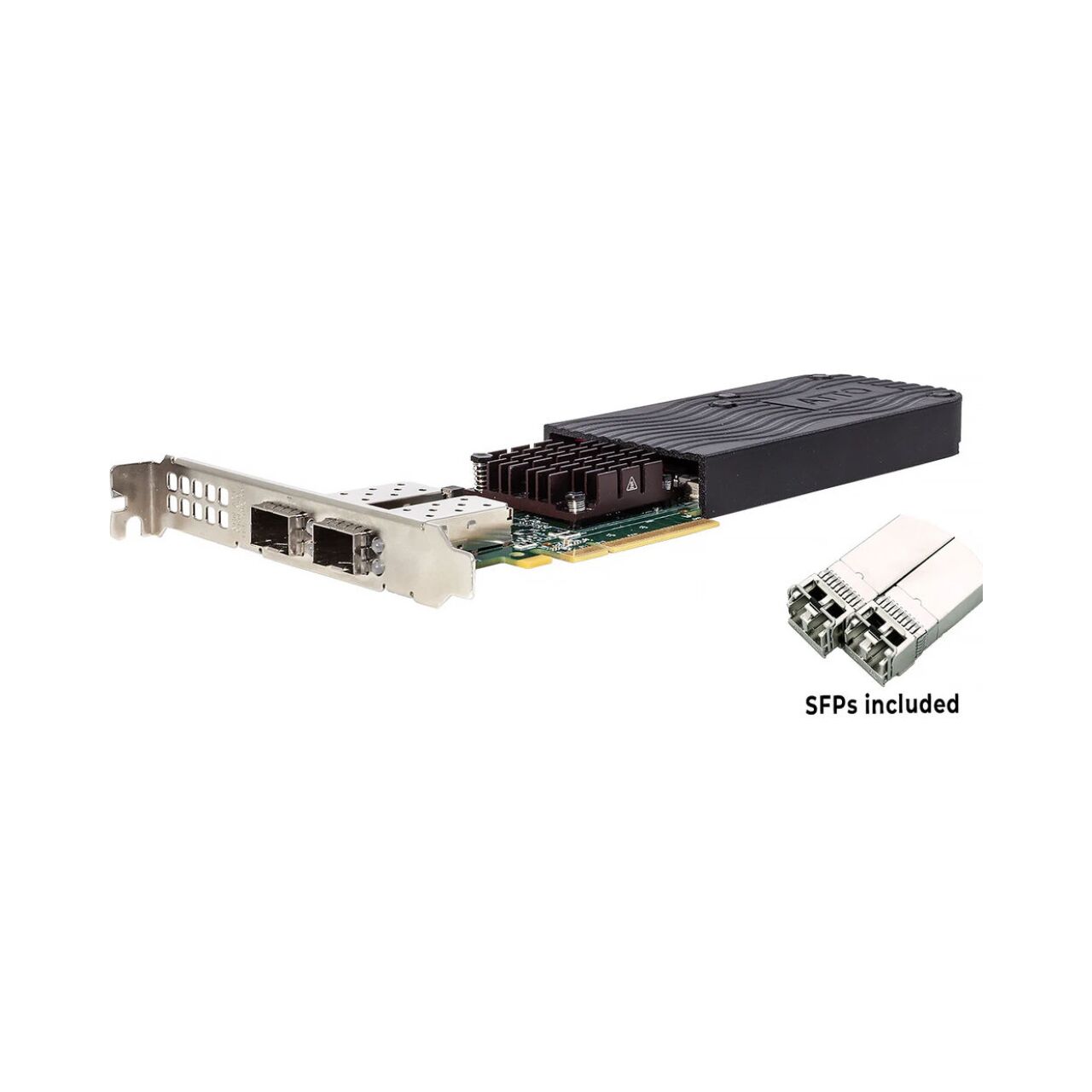

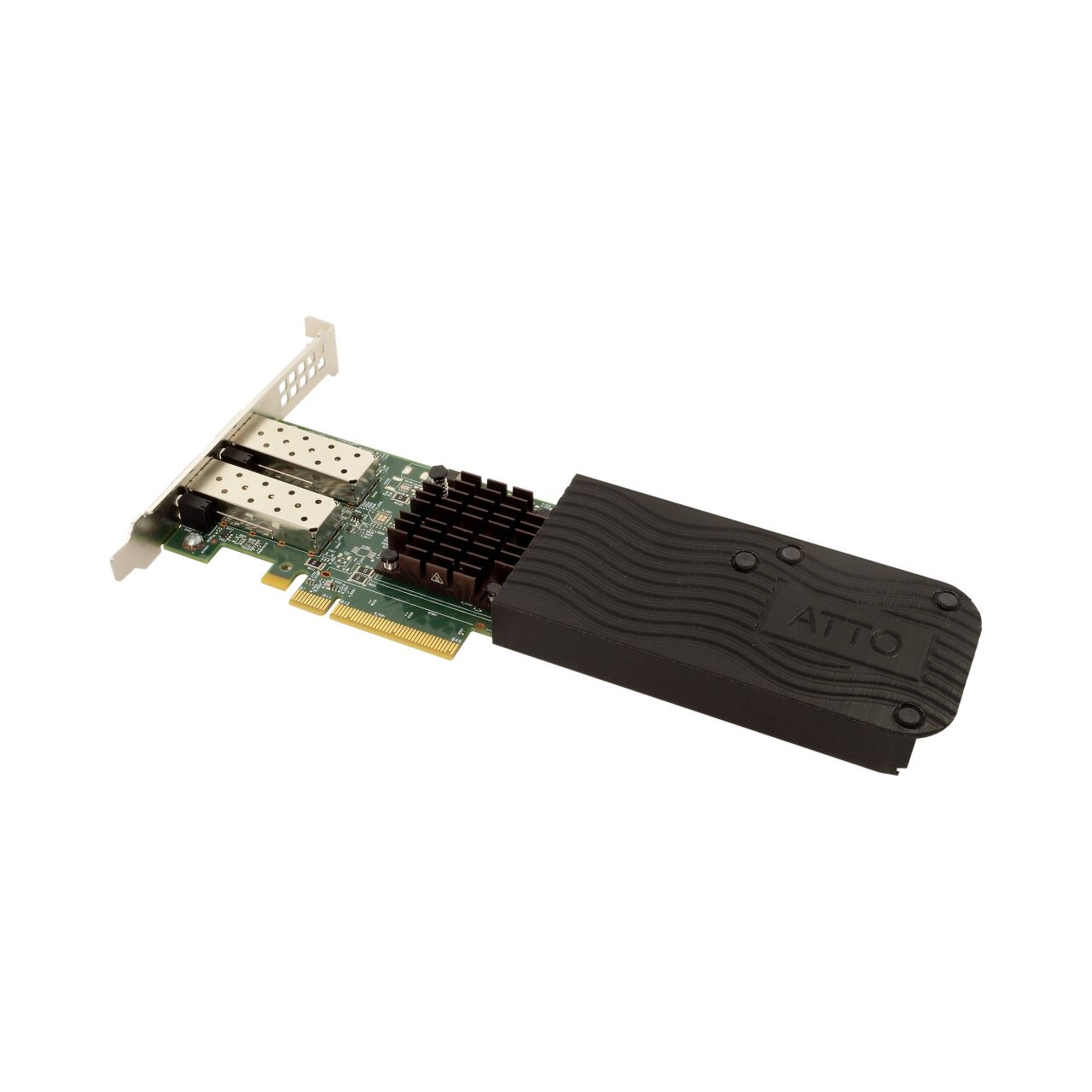

ATTO FastFrame AIR N422 – Long Range
ATTO FastFrame AIR N422 – Long Range
Dual-Port 25/10GbE PCIe 3.0 x8 SmartNIC With Advanced Heat Baffling And Long-Range SFP28 Optics
The ATTO FastFrame AIR N422 – Long Range uses the same dual-port 25/10GbE N422-AIR SmartNIC platform as the standard optics version, but is supplied with long-range SFP28 optics for extended-distance fibre connections.
The adapter connects through PCIe 3.0 x8 and combines ATTO’s Advanced Heat Baffling Technology with RoCE and TCP/UDP/IP stateless offloads for professional workstation networking.
- Dual-port 25/10GbE SFP28 connectivity.
- Long-range SFP28 optics supplied instead of the standard optics.
- PCIe 3.0 x8 host interface.
- Advanced Heat Baffling for workstation deployments.
- Jumbo frames up to 9K.
Brand: ATTO Technology
£ 1,080.95 | £ 1,297.14 inc VAT
Please Call Us For Availability Of This Item
ATTO FastFrame AIR N422 – Long Range – Product Overview
The FastFrame AIR N422 – Long Range combines the N422-AIR 25/10GbE SmartNIC platform with long-range SFP28 optics for installations requiring extended fibre reach. The underlying adapter hardware and performance specifications are the same as the standard N422-AIR configuration.
Long-Range Optical Configuration
This LRA version is supplied with long-range SFP28 optics in place of the standard transceivers, while retaining the same dual-port N422-AIR card platform.
Dual-Port 25/10GbE Connectivity
The adapter provides two SFP28 interfaces for 25GbE and 10GbE networking.
PCIe 3.0 x8 Host Interface
An x8 mechanical and electrical PCI Express 3.0 interconnect connects the SmartNIC to the host workstation.
Networking Offloads
ATTO lists RDMA over Converged Ethernet together with TCP, UDP and IP stateless offloads. Jumbo frames up to 9K are supported for high-throughput network workflows.
Current Operating-System Support
ATTO currently lists Windows 11 and 10, Windows Server 2016 and 2012, FreeBSD, and current RHEL and SLES kernels for the N422-AIR platform. ATTO's current product page explicitly states that this product does not presently support macOS.
ATTO FastFrame AIR N422 – Long Range – Key Features
- Same N422-AIR SmartNIC hardware as the standard optics version.
- Long-range SFP28 optics supplied instead of standard optics.
- Dual-port 25/10GbE connectivity.
- PCIe 3.0 x8 mechanical and electrical host interface.
- Advanced Heat Baffling Technology.
- RDMA over Converged Ethernet.
- TCP/UDP/IP stateless offloads.
- Jumbo frame support up to 9K.
- Current ATTO support for Windows, FreeBSD, RHEL and SLES.
- No current macOS support according to ATTO's product page.
- Three-year standard product warranty.
ATTO FastFrame AIR N422 – Long Range – Technical Specifications
| Model | ATTO FastFrame AIR N422 – Long Range |
| SKU | FFRM-N422-LRA |
| Card Platform | N422-AIR |
| Ethernet Ports | 2 |
| Supported Ethernet Speeds | 10GbE / 25GbE |
| Optical Interface | SFP28 |
| Included Optics | Long-range SFP28 optics |
| Host Interface | PCIe 3.0 x8, mechanical and electrical |
| Cooling | Advanced Heat Baffling Technology |
| Networking Features | RoCE; TCP/UDP/IP stateless offloads |
| Jumbo Frames | Up to 9K |
| Listed Driver Support | Windows 11/10; Windows Server 2016/2012; FreeBSD; current RHEL and SLES kernels |
| macOS Support | Not currently supported according to ATTO |
| Warranty | 3 years |
