£ 1,618.95 | £ 1,942.74 inc VAT

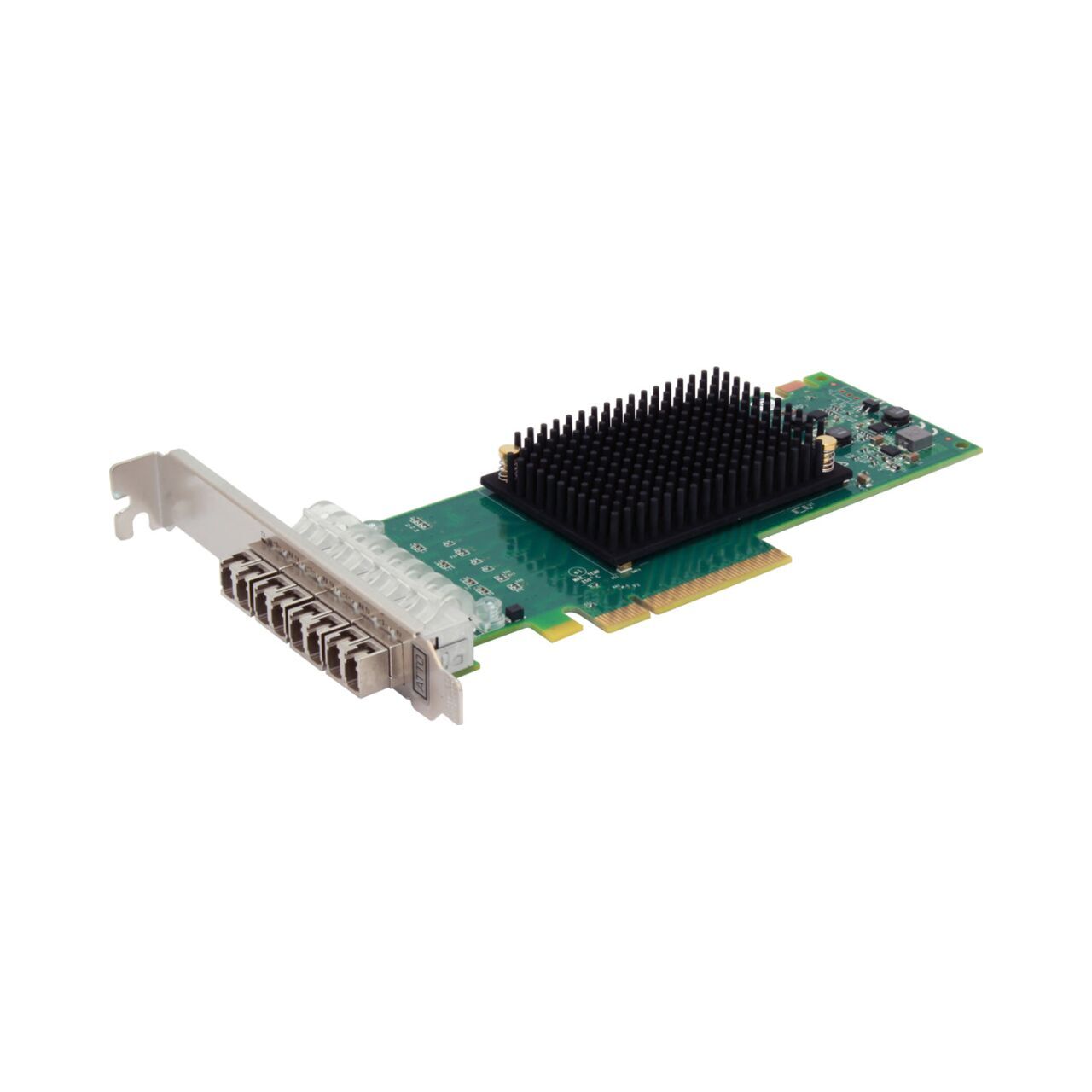

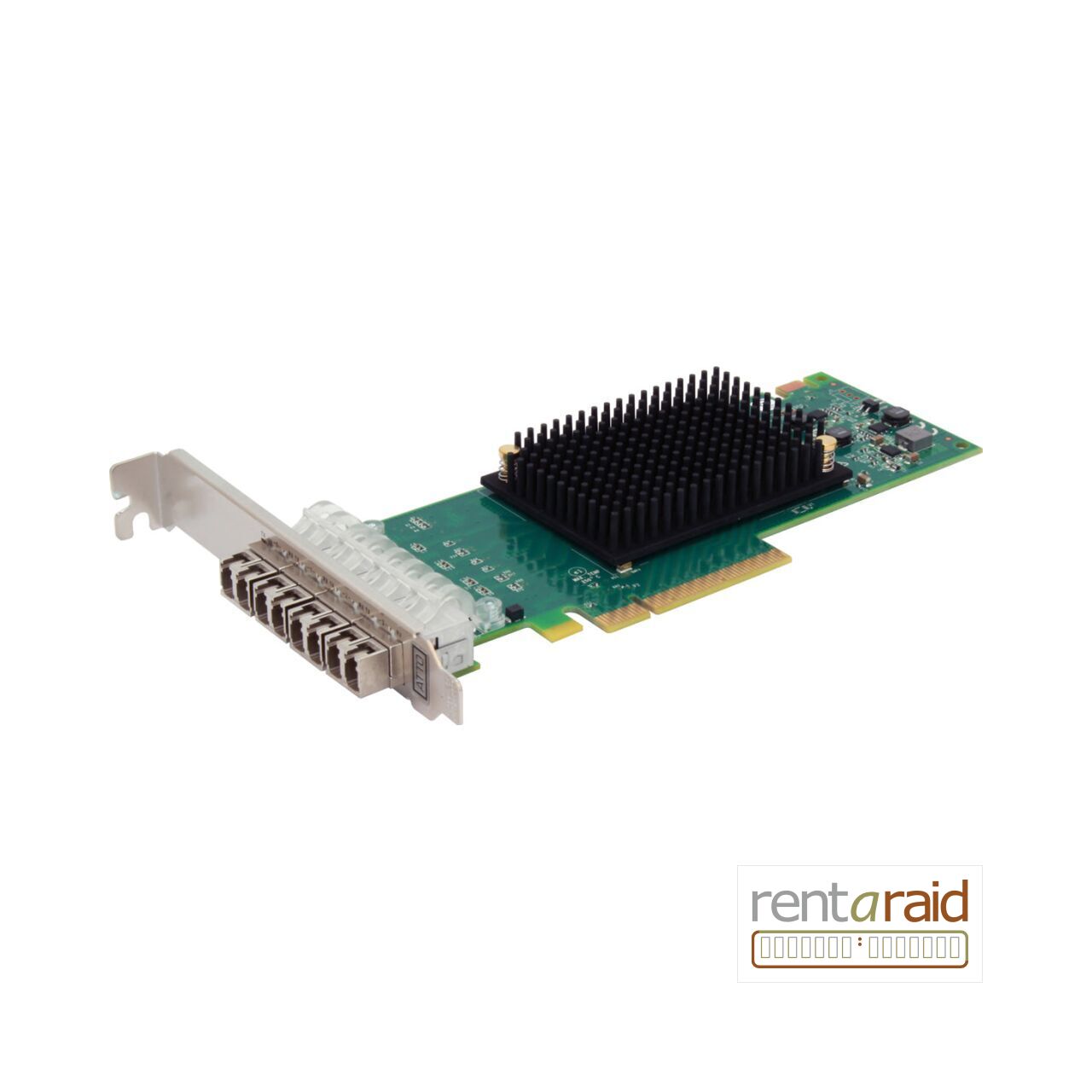

ATTO Celerity FC-164P
ATTO Celerity FC-164P
Quad-Port 16Gb Fibre Channel PCIe 3.0 HBA With SFF Optical Interface
The ATTO Celerity FC-164P is a quad-port 16Gb Fibre Channel host bus adapter for dense SAN connectivity over a PCIe 3.0 x8 host interface.
Unlike the single- and dual-port 16Gb Celerity models, the FC-164P uses an SFF optical interface across its four Fibre Channel ports.
- 4 x independent 16Gb Fibre Channel ports.
- PCIe 3.0 x8 low-profile host adapter.
- Up to 6,400MB/s maximum transfer rate per adapter.
- ATTO ADS™ technology, NPIV and Virtual Fabric support.
Brand: ATTO Technology
£ 2,541.95 | £ 3,050.34 inc VAT
Please Call Us For Availability Of This Item
ATTO Celerity FC-164P – Product Overview
Quad-Port 16Gb Fibre Channel
The Celerity FC-164P provides four independent 16Gb Fibre Channel connections from a single PCIe slot for dense SAN fabrics, multi-path storage and bandwidth-sensitive enterprise or media workflows.
PCIe 3.0 x8 Host Interface
The low-profile adapter uses an x8 PCIe 3.0 host connection. ATTO specifies an SFF optical interface for the FC-164P, distinguishing it from the LC SFP+ interfaces used on the FC-161P and FC-162P.
Flexible SAN Integration
Each port supports 16Gb Fibre Channel with backward compatibility for 8Gb and 4Gb infrastructure, point-to-point and direct fabric/switch attach, and 40 buffer credits per port.
ATTO Streaming And Management
ATTO Advanced Data Streaming (ADS™) technology is designed to manage latency and sustain consistent transfers. ATTO ConfigTool and vConfigTool provide configuration and diagnostics, with support across Windows, Linux, macOS, VMware, FreeBSD and illumos.
ATTO Celerity FC-164P – Key Features
- Four independent 16Gb Fibre Channel ports.
- SFF optical interface.
- PCIe 3.0 x8 host interface.
- Low-profile form factor.
- Backward compatible with 8Gb and 4Gb Fibre Channel.
- Up to 6,400MB/s maximum transfer rate per adapter.
- Point-to-point and direct fabric/switch attach support.
- 40 buffer credits per port.
- ATTO Advanced Data Streaming (ADS™) technology.
- NPIV and Virtual Fabric support.
- Typical operating power: 11.9W.
- Three-year standard warranty.
ATTO Celerity FC-164P – Technical Specifications
| Model | ATTO Celerity FC-164P |
| SKU | CTFC-164P-000 |
| Fibre Channel Ports | 4 |
| Fibre Channel Speed | 16Gb/s per port; backward compatible with 8Gb/s and 4Gb/s |
| Optical Interface | SFF |
| Maximum Transfer Rate | 6,400MB/s per adapter |
| Host Interface | PCIe 3.0 x8 |
| Form Factor | Low profile |
| Topologies | Point-to-point and direct fabric/switch attach |
| Fibre Channel Class | Class 3 |
| Buffer Credits | 40 per port |
| Features | ADS™, NPIV, Virtual Fabric, FDMI, WMI, flash ROM |
| Management | ATTO ConfigTool; ATTO vConfigTool with Latency Scout |
| Supported Operating Systems | Windows, Windows Server, Linux, illumos, VMware, FreeBSD, macOS |
| Dimensions | 6.600 x 2.708 in |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% non-condensing |
| Typical Power | 11.9W |
| Compliance | RoHS; TAA compliant |
| Warranty | 3 years |
