Dual-Port 40Gb Ethernet-to-16-Port 12Gb SAS Bridge for Tape Storage Connectivity
The ATTO XstreamCORE 8200T is a high-performance intelligent bridge designed exclusively for connecting SAS tape and optical devices to Ethernet networks.
It enables seamless remote access and sharing of up to 16 SAS tape drives per bridge, with minimal added latency and robust data throughput.
Engineered for demanding enterprise environments, it delivers hardware-accelerated protocol conversion and advanced management features for modern tape storage workflows.
Supports up to 16 SAS tape drives per bridge.
Dual 40Gb Ethernet ports with auto-negotiation.
Less than 2 microseconds of added latency.
Advanced management via XstreamVIEW, Redfish, and SNIA Swordfish.
The ATTO XstreamCORE 8200T is a purpose-built, hardware-accelerated protocol bridge that connects SAS tape and optical storage devices to high-speed Ethernet networks using iSCSI or iSER protocols.
Designed specifically for tape storage environments, it enables organizations to remotely access, share, and manage tape libraries and drives with the performance and reliability required for enterprise data protection and archival workflows.
With support for up to 16 SAS tape drives per bridge and dual 40Gb Ethernet ports, the 8200T delivers exceptional throughput and ultra-low latency, making it ideal for large-scale backup, disaster recovery, and long-term retention solutions.
Optimized for Tape and Optical Storage
The 8200T model is engineered exclusively for tape and optical devices, ensuring compatibility and performance tailored to the unique requirements of sequential storage media.
This specialization allows for streamlined integration into tape-centric environments, supporting leading tape libraries and drives.
High-Performance Protocol Conversion
Leveraging ATTO’s xCORE Acceleration Technology, the 8200T provides deterministic, hardware-accelerated protocol conversion between SAS and Ethernet, eliminating bottlenecks and maximizing data transfer rates.
With up to 6GB/s sustained throughput and 1.1 million 4K IOPS per bridge, it meets the demands of modern enterprise tape workflows.
Ultra-Low Latency and Efficient Data Movement
The bridge adds less than two microseconds of latency, preserving the performance characteristics of direct-attached storage while enabling remote connectivity.
ATTO’s Data Mover technology offloads up to 5.2GB/s of data movement from host resources, freeing up CPU, memory, and network bandwidth for other critical tasks.
Advanced Management and Monitoring
Comprehensive management is provided through XstreamVIEW Storage Manager, as well as support for industry-standard DMTF Redfish and SNIA Swordfish APIs.
SNMP and MIB support further enhance monitoring and integration into enterprise management frameworks.
Flexible Deployment and Integration
The 8200T’s 1U rackmount form factor, dual hot-swappable power supplies, and robust connectivity options make it suitable for data centers, remote sites, and disaster recovery locations.
It enables storage disaggregation, shared access, and remote tape workflows across up to a 30-mile radius, supporting both centralized and distributed architectures.
Reliability and Serviceability
With redundant, hot-swappable power supplies and no batteries required, the 8200T is built for continuous operation and minimal maintenance.
Standard and extended warranty options provide peace of mind for mission-critical deployments.

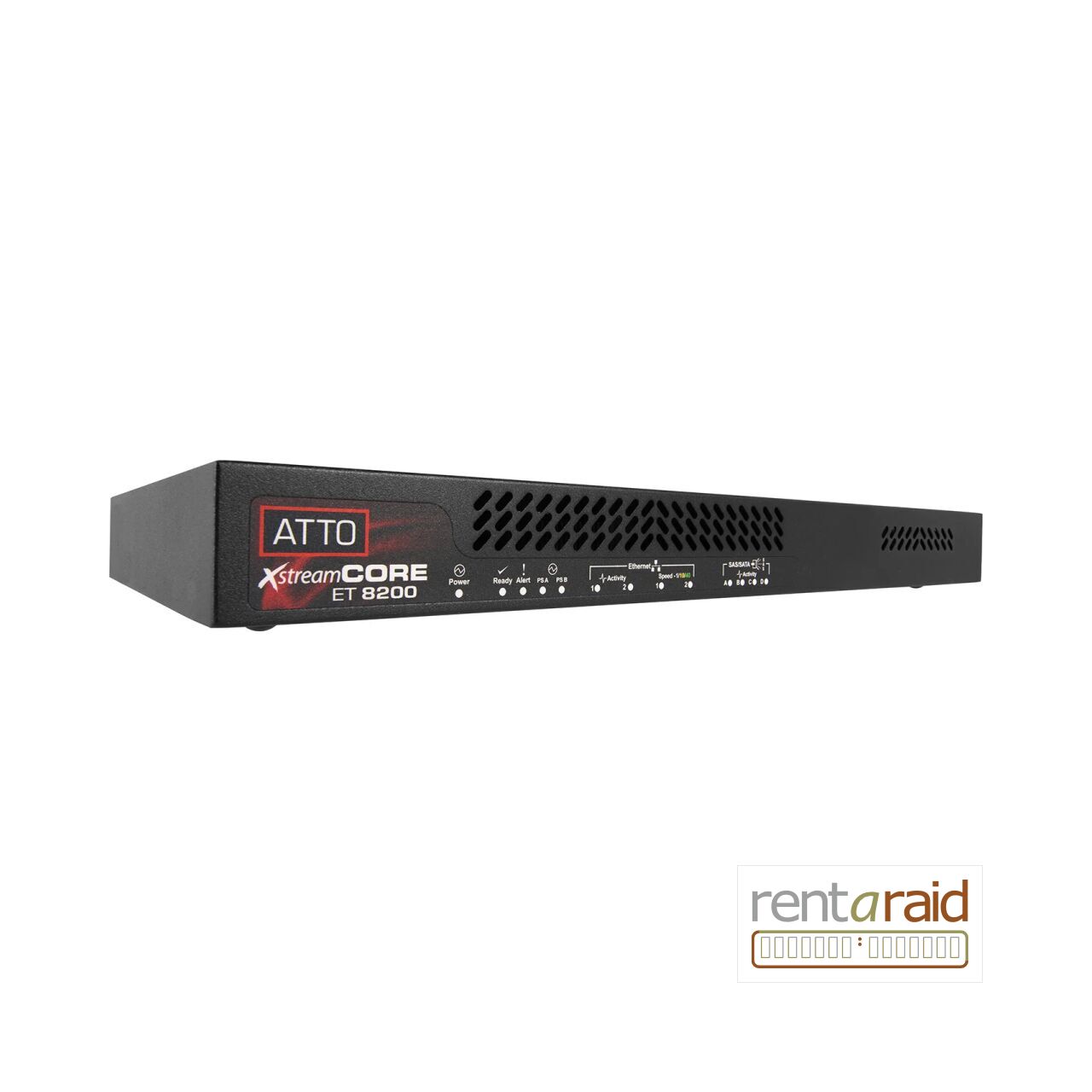

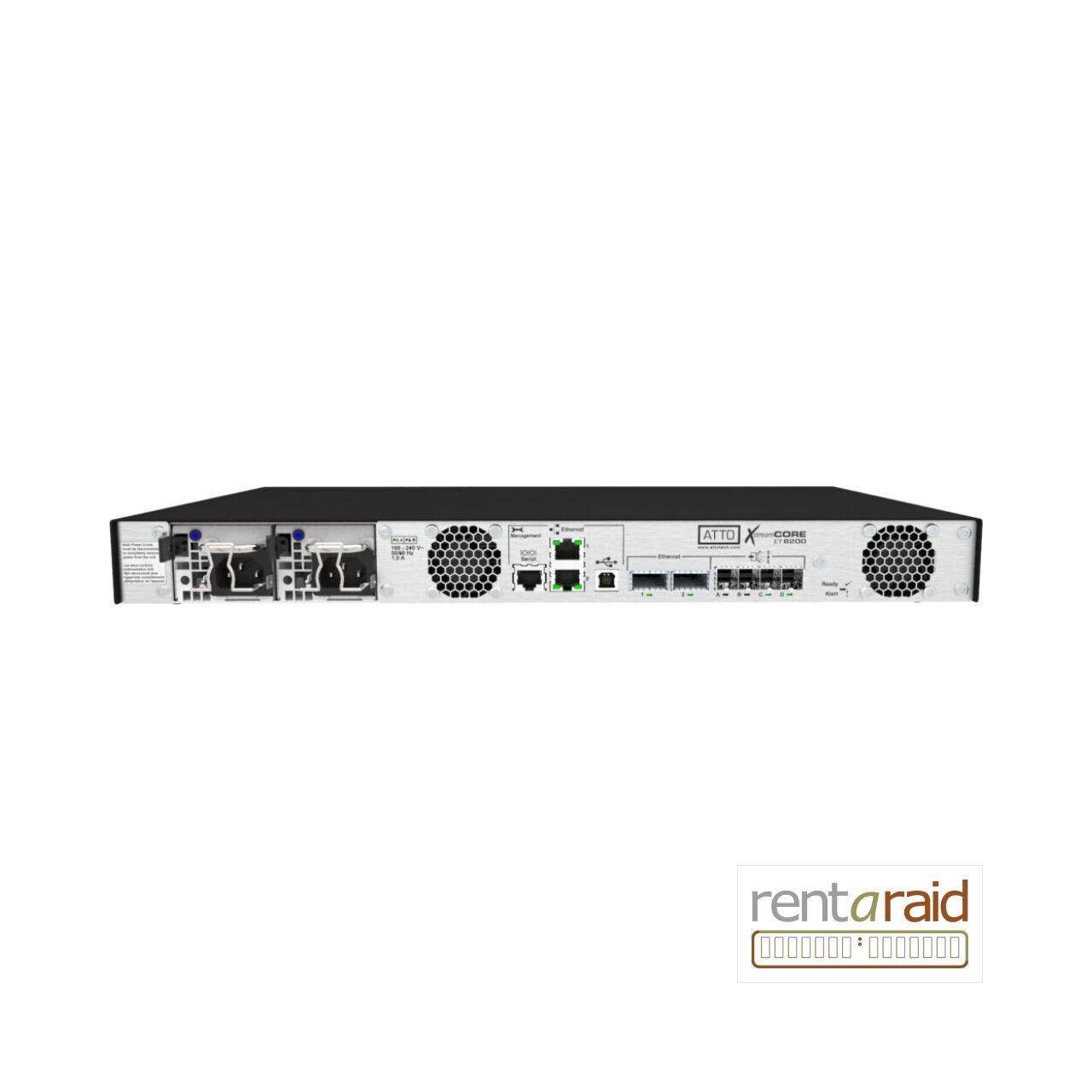

ATTO XstreamCORE 8200T (Tape Only) – Key Features
Dual 40Gb Ethernet ports with auto-negotiation to 40Gb, 10Gb, or 1Gb speeds.
Four x4 12Gb HD mini-SAS (SFF-8644) connectors supporting up to 16 SAS tape drives per bridge.
Hardware-accelerated iSCSI and iSER protocol conversion for deterministic, low-latency performance.
Less than 2 microseconds of added latency for near-direct-attached speeds.
Up to 6GB/s sustained throughput and 1.1 million 4K IOPS per bridge.
ATTO SpeedWrite™ technology improves SAS tape write performance by up to 20%.
ATTO Data Mover technology offloads up to 5.2GB/s of data movement from host resources.
Drive Map Director™ simplifies mapping and reduces maintenance costs.
Comprehensive management via XstreamVIEW, Redfish, SNIA Swordfish, and SNMP.
Dual hot-swappable power supplies for high availability.
1U rackmount form factor with included rack mounting kit.
RoHS compliant and backed by a standard 2-year warranty (optional 5-year warranty available).
