ATTO ThunderLink SH-3128

 Home All Products To Buy All Adapters, Card Readers & Docks Thunderbolt Adapters ATTO ThunderLink SH-3128

ATTO ThunderLink SH-3128

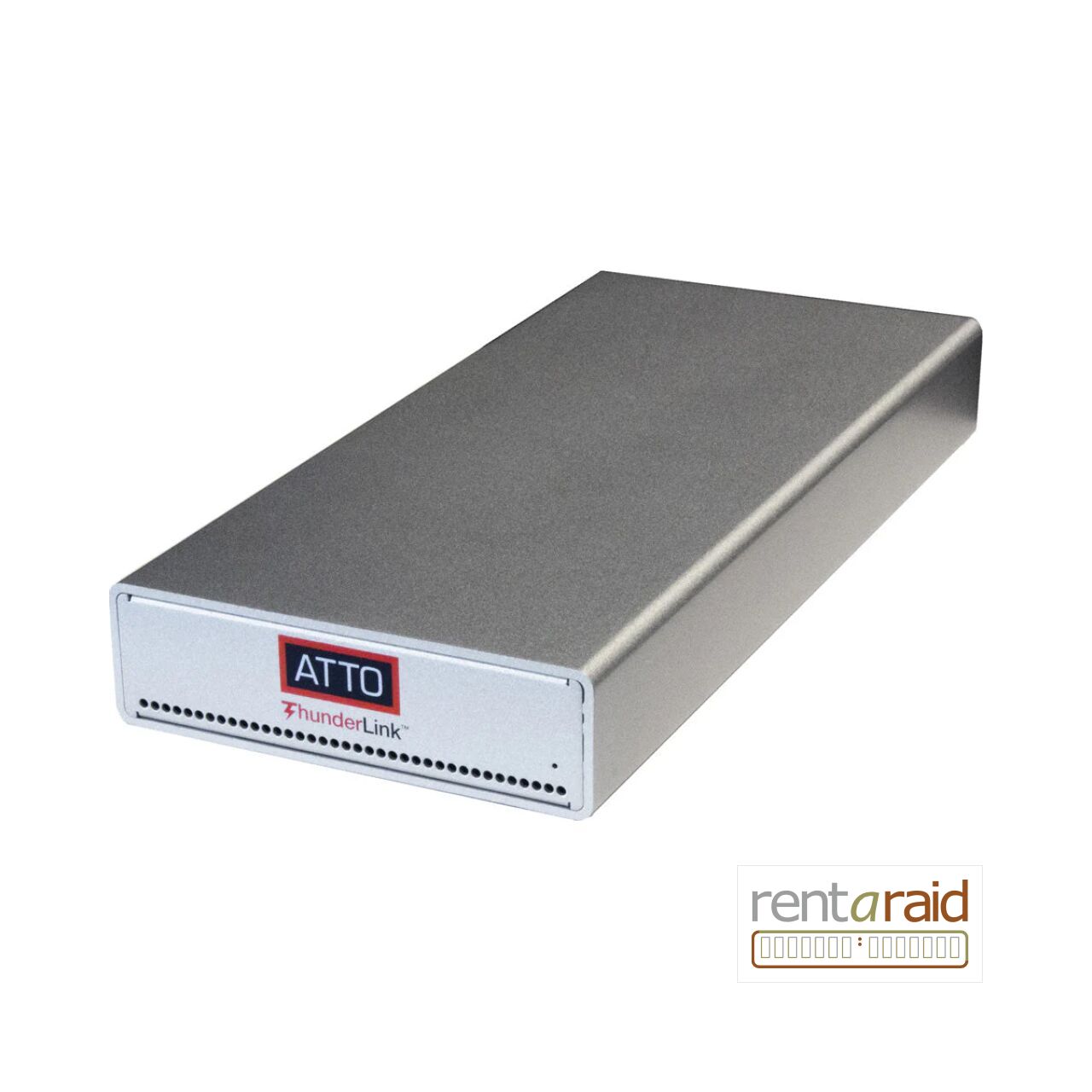

ATTO ThunderLink SH-3128 - Image 2
ATTO ThunderLink SH-3128 - Image 3

ATTO ThunderLink SH-3128

Dual Thunderbolt 3 To 12Gb/s SAS/SATA External Adapter With Dual miniSAS SFF-8644 Ports

The ATTO ThunderLink SH 3128 is an external Thunderbolt to SAS/SATA adapter that connects Thunderbolt-enabled workstations to 12Gb/s SAS/SATA storage devices including LTO tape drives.

With up to 2750MB/s of throughput, this adapter is engineered to provide flexible connectivity and manage latency for real-time environments.

ATTO’s exclusive Advanced Data Streaming (ADS) Technology maximizes CPU processes to deliver smooth and reliable data transfers with consistent high performance.

  • Supports up to 3500 disk or tape devices through expanders.
  • Dual 40Gbps Thunderbolt ports enable daisy-chaining up to six devices.
  • Compatible with both Mac and PC operating systems.
  • Includes RAID 0, 1, 10, 1E support.

Original price was: £ 829.57.Current price is: £ 808.95. | £ 970.74 inc VAT

In stock

Category: Thunderbolt Adapters
SKU: TLSH-3128-DE0
Brand: ATTO Technology

ATTO ThunderLink SH-3128 – Product Overview

The ATTO ThunderLink SH 3128 (TLSH-3128-DE0) serves as a high-performance bridge between Thunderbolt-equipped workstations and SAS/SATA storage infrastructure, enabling seamless connectivity to enterprise-class storage solutions.

This external adapter connects the latest Thunderbolt desktop and mobile workstations to 12Gb/s SAS/SATA storage devices, including LTO 8 tape drives and libraries, providing a robust solution for data-intensive computing environments.

With impressive throughput capabilities of up to 2750MB/s, the ThunderLink SH 3128 delivers the performance necessary for demanding workflows in media production, scientific computing, and enterprise environments.

Advanced Connectivity Options

The ThunderLink SH 3128 features dual 40Gbps Thunderbolt ports that support Display Port, USB 3.1, and PCIe connectivity.

These dual ports enable daisy-chaining of up to six Thunderbolt devices, allowing for flexible workstation configurations without sacrificing performance.

The adapter connects to storage via two mini-SAS HD (SFF-8644) connectors, providing eight 12Gb/s SAS/SATA ports for extensive storage connectivity options.

Exceptional Performance Technology

ATTO's exclusive Advanced Data Streaming (ADS) Technology is at the heart of the ThunderLink SH 3128, maximizing CPU processes to deliver smooth and reliable data transfers.

This proprietary technology ensures the highest consistent performance even in demanding real-time environments.

ATTO's meticulous attention to board design and signal integrity minimizes transmission errors and data corruption, making it the premier choice for high-performance direct-attached SAS/SATA storage connectivity.

Extensive Storage Support

The ThunderLink SH 3128 supports up to 3500 disk or tape devices through expanders, providing exceptional scalability for growing storage needs.

It offers full support for SAS tape devices and transport layer retries (TLR) for enhanced error handling, making it ideal for backup and archiving solutions.

The adapter is compatible with a wide range of storage devices, from high-performance SSDs to large-capacity HDDs and LTO tape drives.

Versatile Operating System Compatibility

Thunderbolt certified for both Mac and PC platforms, the ThunderLink SH 3128 integrates seamlessly into mixed computing environments.

This cross-platform compatibility makes it an ideal solution for creative studios, research facilities, and enterprise environments that utilize diverse operating systems.

ATTO provides dedicated drivers and the intuitive ConfigTool software for easy management, monitoring, and configuration across supported platforms.

Robust Design and Reliability

The ThunderLink SH 3128 is built to ATTO's exacting standards, with a focus on reliability and durability for mission-critical applications.

It features a compact desktop form factor measuring 8.66"(D) x 4.07"(W) x 1.20"(H), making it easy to integrate into existing workspaces.

The adapter is backed by ATTO's three-year warranty and over 30 years of experience in storage connectivity solutions.

ATTO ThunderLink SH-3128 – Key Features

  • 40Gb Thunderbolt 5/4/3 to 12Gb SAS/SATA with support for up to 3500 disk or tape devices through expanders.
  • 12Gb/s SAS/SATA support for maximum storage performance.
  • Dual 40Gbps Thunderbolt ports with Display Port, USB 3.1, and PCIe support.
  • Up to 2750MB/s total throughput for demanding applications.
  • Thunderbolt certified for both Mac and PC operating systems.
  • Dual ports enable daisy-chaining up to six devices for expanded connectivity.
  • Mini SAS HD high density connectors (SFF-8644) for reliable connections.
  • ATTO's exclusive Advanced Data Streaming (ADS) Technology maximizes CPU processes for smooth data transfers.
  • Support for SAS tape devices and transport layer retries (TLR) for enhanced error handling.
  • RAID 0, 1, 10, 1E support for flexible storage configurations.
  • S.M.A.R.T. support for storage device monitoring and management.
  • Kensington security slot for physical security in public or shared environments.
  • Compliant with FCC Part 15 B, EN 55032 Class B, EN55024 Class B, EN 60950-1, cTUVus, RoHS 2011/65/EU standards.
  • TAA Compliant with Country Of Origin: USA.
  • Three-year standard product warranty for long-term reliability.

ATTO ThunderLink SH-3128 – Technical Specifications

Model NumberTLSH-3128-DE0 (EMEA)
Form FactorDesktop
Dimensions8.66"(D) x 4.07"(W) x 1.20"(H) / 10.3 cm (W) x 3 cm (H)
Input Connectors(2) 40Gb/s Thunderbolt
Output Connectors(2) x4 12Gb SAS/SATA (8 ports total)
Connector Type(2) SFF-8644 (Mini SAS HD)
Host BusThunderbolt 3
Maximum ThroughputUp to 2750MB/s
Storage SupportUp to 3500 disk or tape devices through expanders
RAID SupportRAID 0, 1, 10, 1E
Operating System SupportApple MacOS, Microsoft Windows
Operating Temperature0°C to 40°C
Operating Humidity10% - 90% (non-condensing)
Power RequirementsAC 120/230 V (50 - 60 Hz)
Power TypeExternal power adapter
Special FeaturesAdvanced Data Streaming (ADS), Kensington security slot, S.M.A.R.T. support, daisy chaining support
Compliance StandardsFCC Part 15 B, EN 55032 Class B, EN55024 Class B, EN 60950-1, cTUVus, EU RoHS (2011/65/EU), (EU) 2015/863, TAA Compliant
Country of OriginUSA
WarrantyThree years

ATTO ThunderLink SH-3128 – Product Downloads

ATTO ThunderLink SH-3128 Data Sheet >>
