Areca ARC-Caddy – 18.0 TB Enterprise (Black)
Spare Hot-Swappable Drive Caddy (Matched 18.0 TB Enterprise Drive Included)
£ please call for the price
Areca ARC-8050T3U-6 – 108TB
We Are The UK’s No.1 Areca Reseller!
Have Any Questions? We’re Here To Help.
Areca ARC-8050T3U-6 – 108TB
Fast, Expandable 6-Bay Thunderbolt 3 and USB 3.2 Gen 2 Hardware RAID Array with Display Port (6 x 18.0 TB Enterprise Drives Fitted - 7200rpm, 5yr Warranty)
The Areca ARC-8050T3U-6 – 108TB is a 6-bay desktop RAID enclosure supporting 12Gb/s SAS or 6Gb/s SATA drives via dual Thunderbolt 3 ports and USB 3.2 Gen 2 compatibility.
It features a dual-core 1.2 GHz SAS ROC processor with 2GB DDR3-1866 SDRAM cache for hardware RAID levels including 0, 1, 10, 3, 5, 6, 30, 50, 60, JBOD, and single disk.
Pre-configured with 6 x 18TB enterprise drives, it delivers high-performance storage for 4K/8K video workflows on Mac and Windows systems.
- Supports daisy-chaining up to six Thunderbolt devices and DisplayPort 1.4 output for 8K monitoring.
- Includes SFF-8644 expansion port for additional storage connectivity.
- Equipped with 150W power supply and 2700rpm cooling fan for reliable operation.
- Compatible with Apple M1 silicon and offers controller-level hardware encryption.
Original price was: £ 4,910.00.£ 3,749.95Current price is: £ 3,749.95. | £ 4,499.94 inc VAT
In stock
Category: Desktop Hard Drives & RAIDs
Brand: Areca Technology
We’re the UK’s #1 Areca Reseller!
We pride ourselves on knowing, selling and supporting Areca RAIDs & Controllers better than anyone else in the UK!
All our Areca RAIDs ship pre-configured & tested (RAID5 or RAID6, for Mac or PC). Please allow us 1-2 days to do this for you for free.
Seen a better price elsewhere? Let us know & we’ll do our best so you also benefit from our Areca knowledge, expertise & totally free after-sales support.
– The UK Areca RAID Experts!
Areca ARC-8050T3U-6 – 108TB Product Overview
The Areca ARC-8050T3U-6 – 108TB provides high-capacity, hardware RAID storage in a compact 6-bay desktop tower designed for professional video editing, audio production, and data-intensive workflows.
It connects via dual Thunderbolt 3 ports at 40Gbps speeds, supports USB 3.2 Gen 2 fallback, and includes a DisplayPort for direct array monitoring, enabling seamless integration with Mac and Windows systems.
Hardware RAID Capabilities
The enclosure uses a dual-core 1.2 GHz SAS RAID-on-Chip (ROC) processor with 2GB DDR3-1866 SDRAM cache featuring ECC protection for reliable data handling.
It supports RAID levels 0, 1, 10, 3, 5, 6, 30, 50, 60, JBOD, and single disk configurations, offloading RAID processing from the host CPU.
Drive and Expansion Support
Compatible with up to six 2.5-inch or 3.5-inch 12Gb/s SAS or 6Gb/s SATA HDDs/SSDs, this model ships with 6 x 18TB enterprise 7200rpm drives for 108TB total capacity.
An SFF-8644 (2-lane) expansion port allows connection to additional JBOD enclosures for scalable storage.
Connectivity and Compatibility
Dual Thunderbolt 3 ports enable daisy-chaining up to six devices while supplying power for notebook charging; USB-C fallback ensures broad host compatibility.
Fully supports macOS 10.12+, Windows 8/10+, Apple M1 silicon, and OS-independent USB operation.
Monitoring and Management

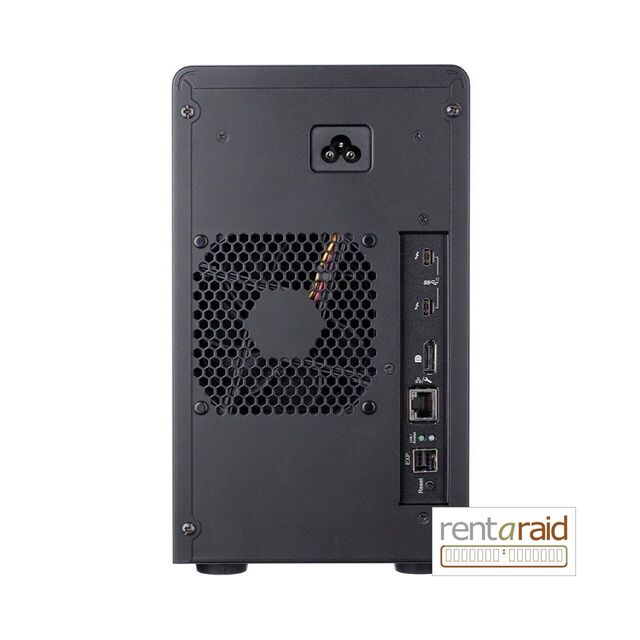

A rear DisplayPort 1.4 supports 8K 30Hz output for array status monitoring without host connection.

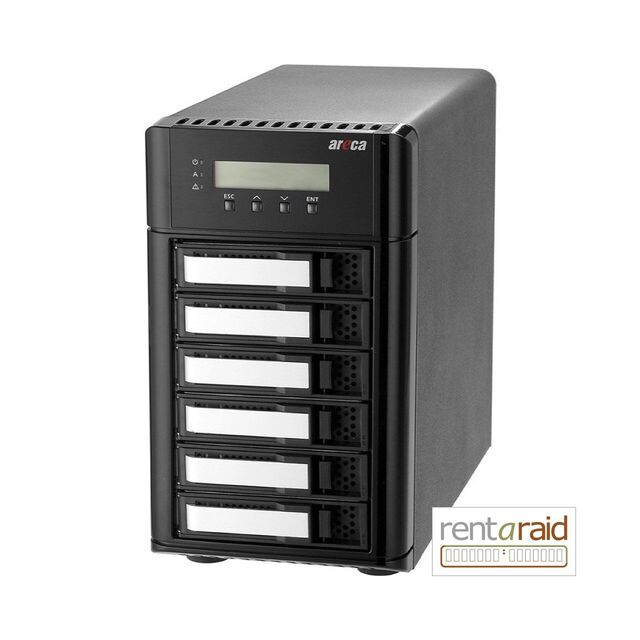

Configuration options include Thunderbolt/LAN ports and LCD panel for video-optimized settings and firmware updates.
Thermal and Power Management
A single 2700rpm cooling fan maintains optimal temperatures, paired with a 150W power supply and intelligent power on/off for data integrity.
Dimensions measure 4.84 x 6.51 x 9.11 inches (123 x 165.6 x 232 mm) with 8.0 lbs (3.6 kg) weight.
Security Features
Controller-level hardware encryption and SED (self-encrypting drive) support provide enterprise-grade data protection.
Areca ARC-8050T3U-6 – 108TB Key Features
- Dual Thunderbolt 3 ports (40Gbps) with daisy-chain support for up to six devices and USB 3.2 Gen 2 compatibility.
- DisplayPort 1.4 output for 8K 30Hz monitoring of RAID array status.
- Dual-core 1.2 GHz SAS ROC with 2GB DDR3-1866 SDRAM ECC cache for true hardware RAID processing.
- Supports 6 x 2.5"/3.5" 12Gb/s SAS or 6Gb/s SATA drives; pre-populated with 6 x 18TB enterprise HDDs (108TB).
- RAID levels: 0, 1, 10, 3, 5, 6, 30, 50, 60, JBOD, single disk.
- SFF-8644 (2-lane) expansion port for JBOD connectivity.
- 2700rpm cooling fan, 150W PSU, and intelligent power management for reliability.
- Apple M1 support, controller encryption, SED compatibility, and batch drive firmware updates.
- Compact dimensions: 4.84 x 6.51 x 9.11 in (123 x 165.6 x 232 mm), 8.0 lbs (3.6 kg).
- Optimized for 4K/8K workflows with Broadcom 12Gb/s SAS engine.
Areca ARC-8050T3U-6 – 108TB Technical Specifications
| Form Factor | Desktop 6-Bay Tower |
| Host Interface | 2 x Thunderbolt 3 (40Gbps), 1 x DisplayPort 1.4 |
| USB Compatibility | USB 3.2 Gen 2 (USB-C fallback) |
| I/O Processor | Dual Core 1.2 GHz SAS ROC |
| On-Board Cache | 2GB DDR3-1866 SDRAM (ECC) |
| Drive Bays | 6 x 2.5"/3.5" (12Gb/s SAS or 6Gb/s SATA HDD/SSD) |
| Pre-Installed Drives | 6 x 18TB Enterprise 7200rpm SAS/SATA (108TB total) |
| RAID Levels | 0, 1, 10, 3, 5, 6, 30, 50, 60, Single Disk, JBOD |
| Expansion Support | SFF-8644 (2-lanes) |
| Cooling | 1 x 2700rpm Fan |
| Power Supply | 150W |
| Dimensions (W x H x D) | 4.84 x 6.51 x 9.11 in (123 x 165.6 x 232 mm) |
| Weight | 8.0 lbs / 3.6 kg |
| OS Support | macOS 10.12+, Windows 8/10+, Apple M1; USB OS Independent |
| Additional Ports | 4-pin XLR, Thunderbolt/LAN/LCD Configuration |
| Security | Controller-Level Hardware Encryption, SED Support |
| Other | Bootable Drive Support, Batch HDD Firmware Update, Daisy-Chain up to 6 Devices |
Areca ARC-8050T3U-6 – 108TB Product Downloads
Areca Technology Delivery Information
In general, next working day delivery services (UK Mainland) are available on Areca equipment orders placed before 2pm (subject to stock availability).
We kindly advise you let us preconfigure each Areca RAID (as RAID5, RAID6 etc), so they arrive properly setup, ready to “plug’n’play”.
This is a free service, and takes 1-2 days prior to shipping.
Non-timed deliveries should be delivered between the hours of 9am and 6pm.
Orders placed after 2pm on Fridays and on weekends will be processed as normal the following Monday.
Orders placed on Bank Holidays will be processed the next working day.
If urgent, please call one of our helpful account managers so they may double check everything for you, enabling you to place your order with confidence.
Please note: these product details are for guide purposes only, and may contain errors.
We always recommend double-checking the product specs and features on the the manufacturer website, or contact us if unsure before ordering.
