Areca ARC-Caddy – 14.0 TB Enterprise (Black)
Spare Hot-Swappable Drive Caddy (Matched 14.0 TB Enterprise Drive Included)
£ please call for the price
Areca ARC-8050T3U-4A – 56TB
We Are The UK’s No.1 Areca Reseller!
Have Any Questions? We’re Here To Help.
Areca ARC-8050T3U-4A – 56TB
Compact 4-Bay Thunderbolt 3 and USB 3.2 Gen 2 Hardware RAID Array (4 x 14.0 TB Enterprise Drives Fitted - 7200rpm, 5yr Warranty). External PSU Version.
The Areca ARC-8050T3U-4A is a 4-bay desktop RAID enclosure pre-populated with four 14TB 3.5-inch SATA III HDDs for 56TB total capacity.
It connects via dual Thunderbolt 3 ports supporting 40 Gbps speeds and is compatible with USB 3.2 Gen 2 hosts.
Hardware RAID functionality is powered by a single-core 800 MHz SAS ROC processor with 1GB DDR3 cache.
- Supports RAID levels 0, 1, 10, 3, 5, 6, Single Disk, JBOD.
- Includes DisplayPort output and Gigabit Ethernet port.
- Designed for macOS 10.12+ and Windows 8/10+ via Thunderbolt 3; OS-independent USB mode.
- Features SED support and intelligent power management.
Original price was: £ 2,990.00.£ 2,374.95Current price is: £ 2,374.95. | £ 2,849.94 inc VAT
In stock
Category: Desktop Hard Drives & RAIDs
Brand: Areca Technology
We’re the UK’s #1 Areca Reseller!
We pride ourselves on knowing, selling and supporting Areca RAIDs & Controllers better than anyone else in the UK!
All our Areca RAIDs ship pre-configured & tested (RAID5 or RAID6, for Mac or PC). Please allow us 1-2 days to do this for you for free.
Seen a better price elsewhere? Let us know & we’ll do our best so you also benefit from our Areca knowledge, expertise & totally free after-sales support.
– The UK Areca RAID Experts!
Areca ARC-8050T3U-4A – 56TB Product Overview
The Areca ARC-8050T3U-4A provides high-capacity, hardware RAID storage optimized for Thunderbolt 3 workflows in professional video editing, data backup, and content creation environments.
Equipped with four 14TB enterprise-grade 3.5-inch SATA III HDDs, it delivers 56TB of reliable storage with RAID protection for data integrity and performance.

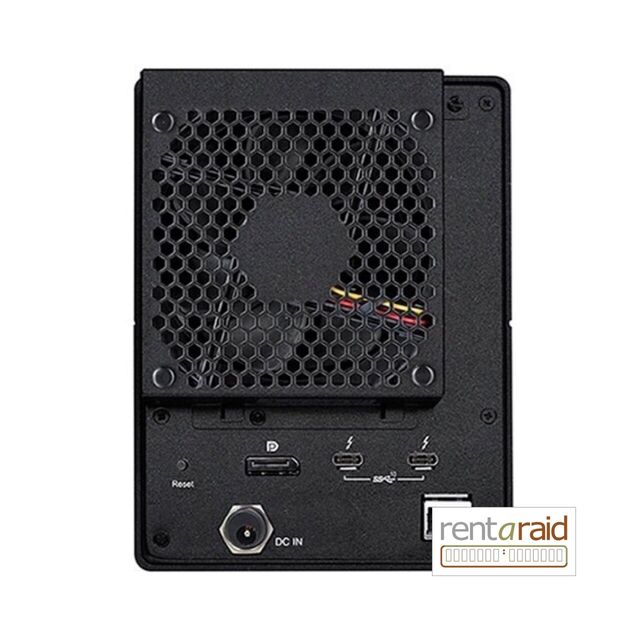

Host Connectivity
Dual Thunderbolt 3 USB-C ports enable 40 Gbps data transfers and daisy-chaining up to five additional devices.
A full-size DisplayPort 1.4 supports 8K 30Hz video output, while an RJ45 Gigabit Ethernet port allows network access.
Backward compatibility with USB 3.2 Gen 2 hosts activates via USB-C without Thunderbolt requirements.
RAID and Processing Capabilities
A single-core 800 MHz SAS ROC processor manages RAID operations independently of the host CPU.
1GB DDR3-800 SDRAM cache enhances read/write performance, particularly for 4K video workflows.
Supports RAID 0, 1, 10, 3, 5, 6, JBOD, and Single Disk configurations for flexible data protection.
Drive and Expansion Support
Four universal bays accommodate 2.5-inch or 3.5-inch 6Gb/s SAS/SATA HDDs or SSDs.
Pre-installed drives are 7200 RPM enterprise models with SED support for hardware encryption.
No expansion ports are available on this 4-bay model.
Build and Environmental Design
A single 2700 RPM fan provides cooling in a compact desktop form factor measuring 232 x 165.6 x 123 mm.
External 150W AC adapter powers the unit, with operating temperatures from 0 to 35°C.
LED indicators monitor status, and firmware updates can be applied to all drives simultaneously.
Use Cases
Suitable for direct-attached storage in Mac and Windows editing suites supporting simultaneous 4K input/output.
Ideal for field production with portable design and bus-powered daisy-chaining for notebooks.
Enterprise data protection features ensure reliability in backup and archival applications.
Areca ARC-8050T3U-4A – 56TB Key Features
- Dual Thunderbolt 3 ports (40 Gbps) with daisy-chain support and USB 3.2 Gen 2 fallback compatibility.
- Four bays for 3.5-inch/2.5-inch 6Gb/s SAS/SATA drives, pre-populated with 4 x 14TB HDDs for 56TB capacity.
- Hardware RAID levels 0, 1, 10, 3, 5, 6, Single Disk, JBOD via 800 MHz single-core SAS ROC processor.
- 1GB DDR3-800 SDRAM cache for optimized multitasking in 4K video workflows.
- DisplayPort 1.4 output for 8K 30Hz display and RJ45 Gigabit Ethernet connectivity.
- SED support, intelligent power on/off, and simultaneous drive firmware updates for data security.
- Compact desktop design with 2700 RPM fan cooling and 150W external PSU.
- Full Apple M1 silicon compatibility and configuration via Thunderbolt, LAN, or LCD panel.
- OS support includes macOS 10.12+, Windows 8/10+, and USB-independent operation.
- Includes 1m active Thunderbolt 3 cable for immediate deployment.
Areca ARC-8050T3U-4A – 56TB Technical Specifications
| Form Factor | Desktop 4-Bay |
| Storage Capacity | 56 TB (4 x 14 TB) |
| Included Drives | 4 x 14 TB 3.5-inch SATA III HDD, 7200 RPM Enterprise |
| Drive Bays | 4 x 2.5"/3.5" Universal |
| Drive Interface | 6Gb/s SAS / SATA III |
| Host Interface | 2 x Thunderbolt 3 USB-C (40 Gbps), 1 x DisplayPort 1.4, 1 x RJ45 Gigabit Ethernet |
| I/O Processor | Single-Core 800 MHz SAS ROC |
| On-Board Cache | 1 GB DDR3-800 SDRAM |
| RAID Levels | 0, 1, 10, 3, 5, 6, Single Disk, JBOD |
| Encryption | SED (Self-Encrypting Drives) Support |
| Expansion Ports | None |
| Cooling | 1 x 2700 RPM Fan |
| Power Supply | External 150 W AC Adapter |
| Dimensions (W x H x D) | 9.1 x 6.5 x 4.8 in / 232 x 165.6 x 123 mm |
| Weight | 7.9 lb / 3.6 kg (without drives) |
| Operating Temperature | 32 to 95°F / 0 to 35°C |
| Operating Humidity | 5 to 95% (Non-Condensing) |
| OS Support (Thunderbolt) | macOS 10.12 or later, Windows 8/10 or later |
| OS Support (USB) | OS Independent |
| Configuration Options | Thunderbolt/LAN Port, LCD Panel |
| Included Accessories | 1m 40 Gbps Active Thunderbolt 3 Cable |
| Status Monitoring | LED Indicators |
Areca ARC-8050T3U-4A – 56TB Product Downloads
Areca Technology Delivery Information
In general, next working day delivery services (UK Mainland) are available on Areca equipment orders placed before 2pm (subject to stock availability).
We kindly advise you let us preconfigure each Areca RAID (as RAID5, RAID6 etc), so they arrive properly setup, ready to “plug’n’play”.
This is a free service, and takes 1-2 days prior to shipping.
Non-timed deliveries should be delivered between the hours of 9am and 6pm.
Orders placed after 2pm on Fridays and on weekends will be processed as normal the following Monday.
Orders placed on Bank Holidays will be processed the next working day.
If urgent, please call one of our helpful account managers so they may double check everything for you, enabling you to place your order with confidence.
Please note: these product details are for guide purposes only, and may contain errors.
We always recommend double-checking the product specs and features on the the manufacturer website, or contact us if unsure before ordering.
