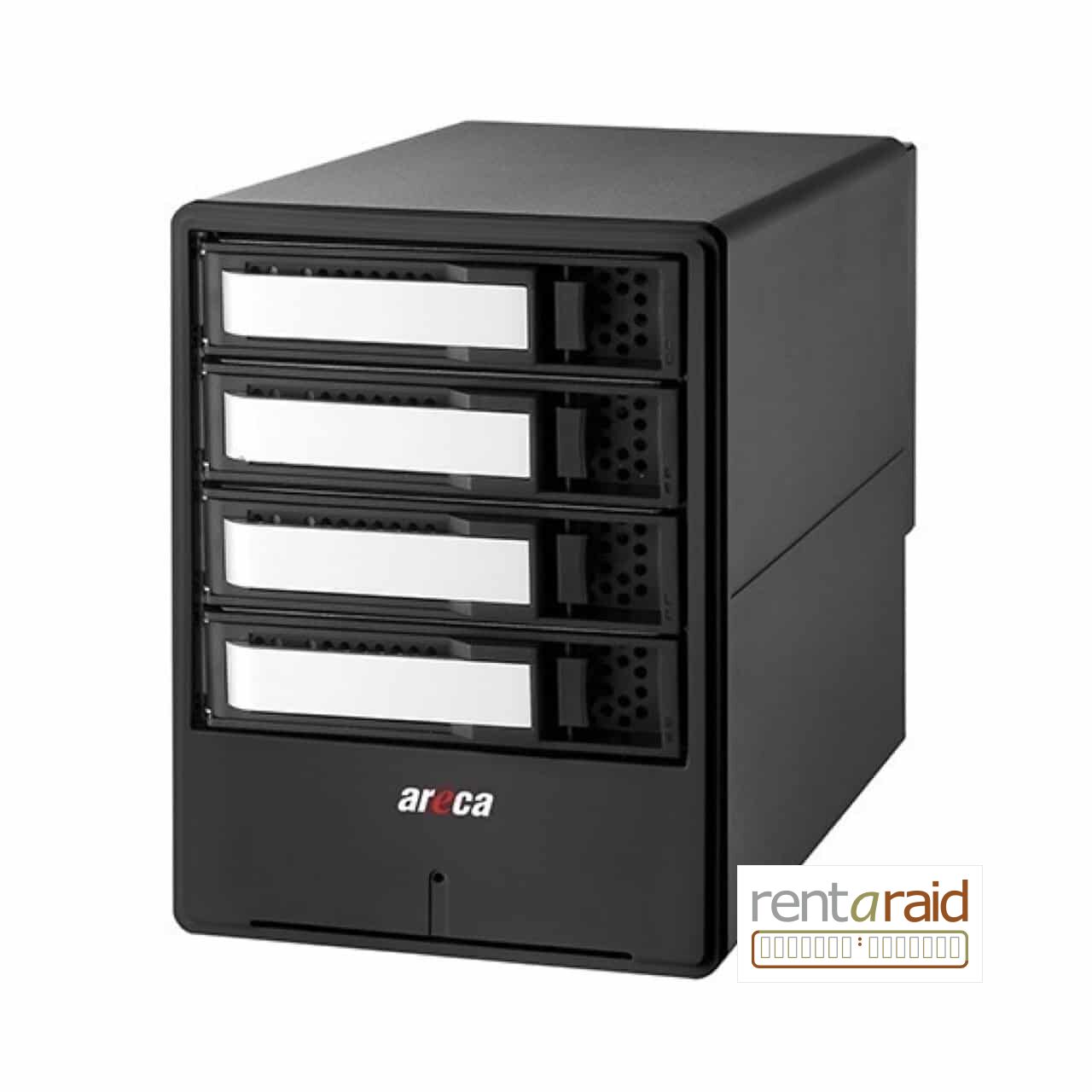

Areca ARC-8050T3U-4A – Unpopulated

The ARC-8050T3U-4A is a four-bay RAID storage enclosure that combines high-speed Thunderbolt 3 connectivity with dedicated hardware RAID processing to deliver professional-grade data storage and protection. The enclosure is designed for creative professionals, content creators, and organizations requiring fast, reliable access to large volumes of data without relying on host computer resources for RAID operations.

By utilizing a dedicated RAID-on-Chip processor, the ARC-8050T3U-4A offloads all RAID calculations from the host system, ensuring consistent performance and data integrity while minimizing impact on system CPU utilization. This architecture is particularly beneficial for bandwidth-intensive workflows such as 4K video editing, large-scale data transfers, and continuous backup operations.

Thunderbolt 3 Connectivity and Compatibility

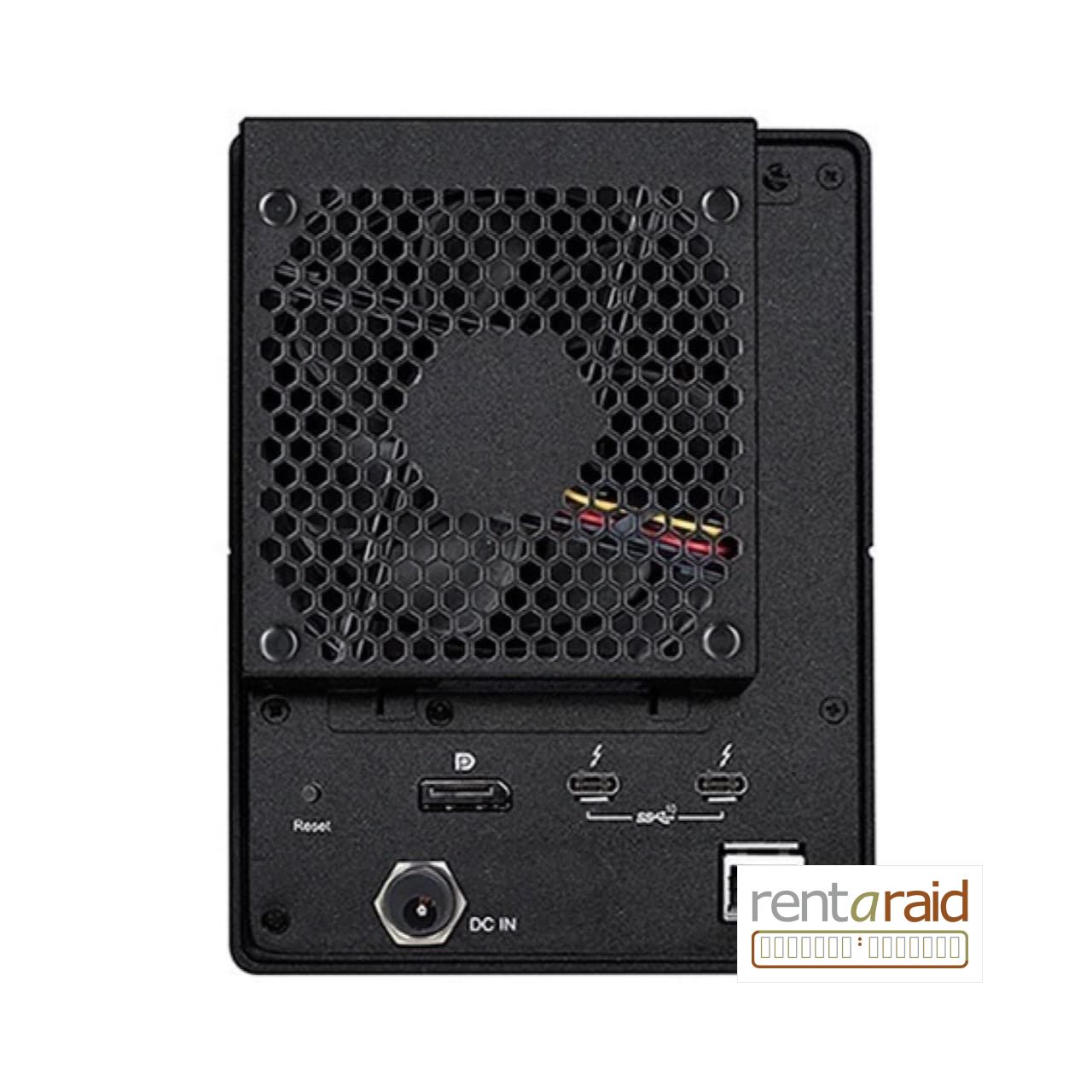

The enclosure features two Thunderbolt 3 ports operating at 40 Gbps, enabling rapid data transfer and supporting daisy-chaining of up to five additional Thunderbolt peripherals through the secondary port. The Thunderbolt 3 interface also functions as USB 3.2 Gen 2 when connected to USB-C equipped computers, providing broad compatibility across Mac and Windows systems running macOS 10.12 or later and Windows 8/10 or later.

Hardware RAID Processing

The single-core 800 MHz SAS RAID-on-Chip processor handles all RAID operations independently, eliminating the performance overhead associated with software RAID solutions. The processor manages RAID levels 0, 1, 10, 3, 5, and 6, as well as Single Disk and JBOD modes, providing flexibility for different data protection and performance requirements.

Drive Support and Capacity

The four drive bays accommodate both 3.5-inch and 2.5-inch form factor drives, supporting 6 Gbps SAS and SATA interfaces. The unpopulated configuration allows users to install drives matching their specific capacity, speed, and budget requirements, whether selecting traditional hard disk drives or solid-state drives for enhanced performance.

On-Board Cache and Performance Optimization

The enclosure includes 1GB of DDR3-800 SDRAM cache with error-correcting code (ECC) protection, enabling smooth multitasking and optimized read/write performance during sustained operations. Cache allocation can be configured to prioritize either read or write operations based on specific workflow demands.

Thermal Management and Power

A single 2700 RPM cooling fan maintains optimal operating temperatures during extended use, while the 150W external power supply provides sufficient power for the controller and up to four installed drives. The low-noise fan design minimizes acoustic impact in professional studio and office environments.

Professional Applications

The ARC-8050T3U-4A is well-suited for video production workflows requiring fast scratch disk access, photography professionals managing large image libraries, content creators performing real-time editing, and organizations implementing automated backup and archival strategies. The hardware RAID architecture ensures data integrity and consistent performance across these demanding use cases.
