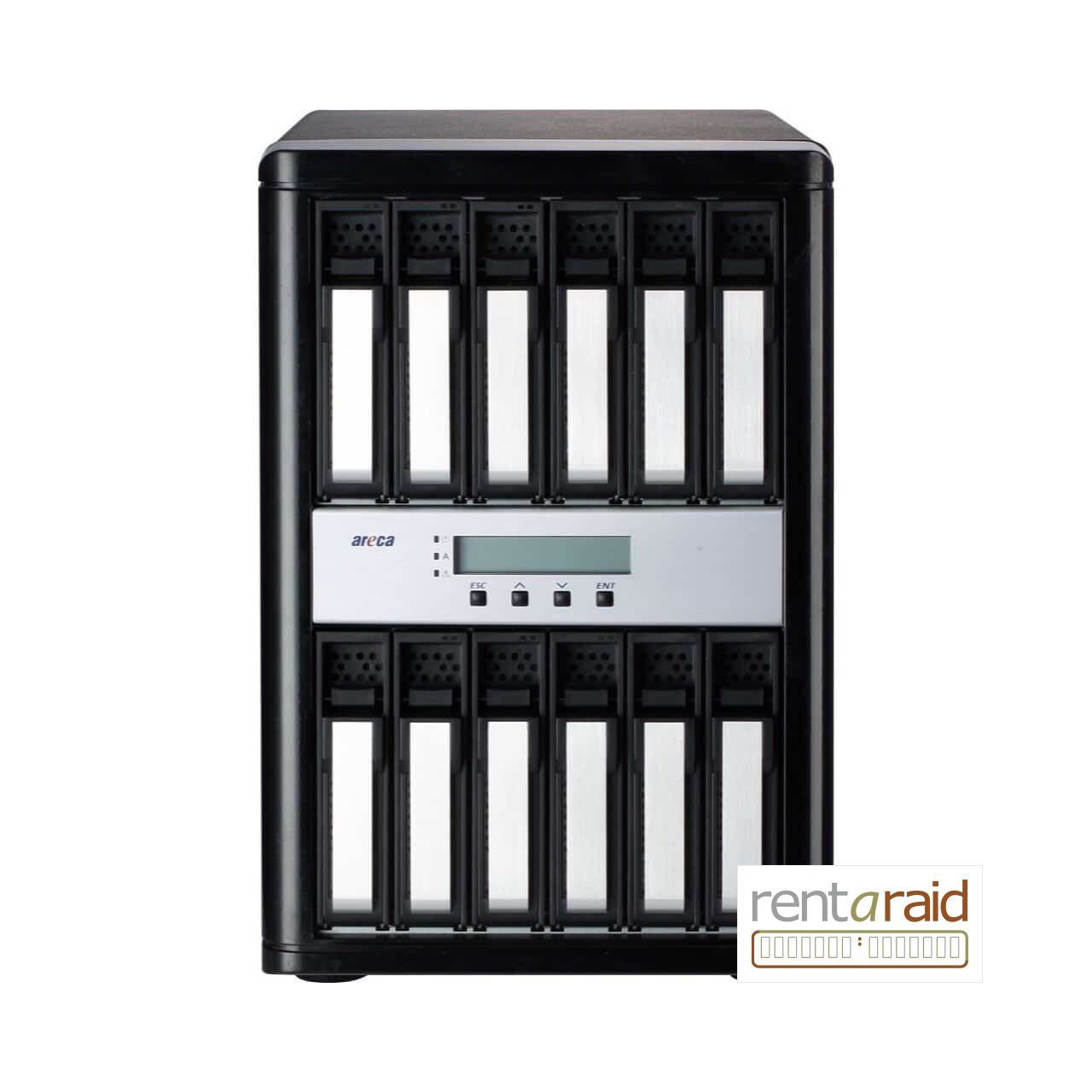

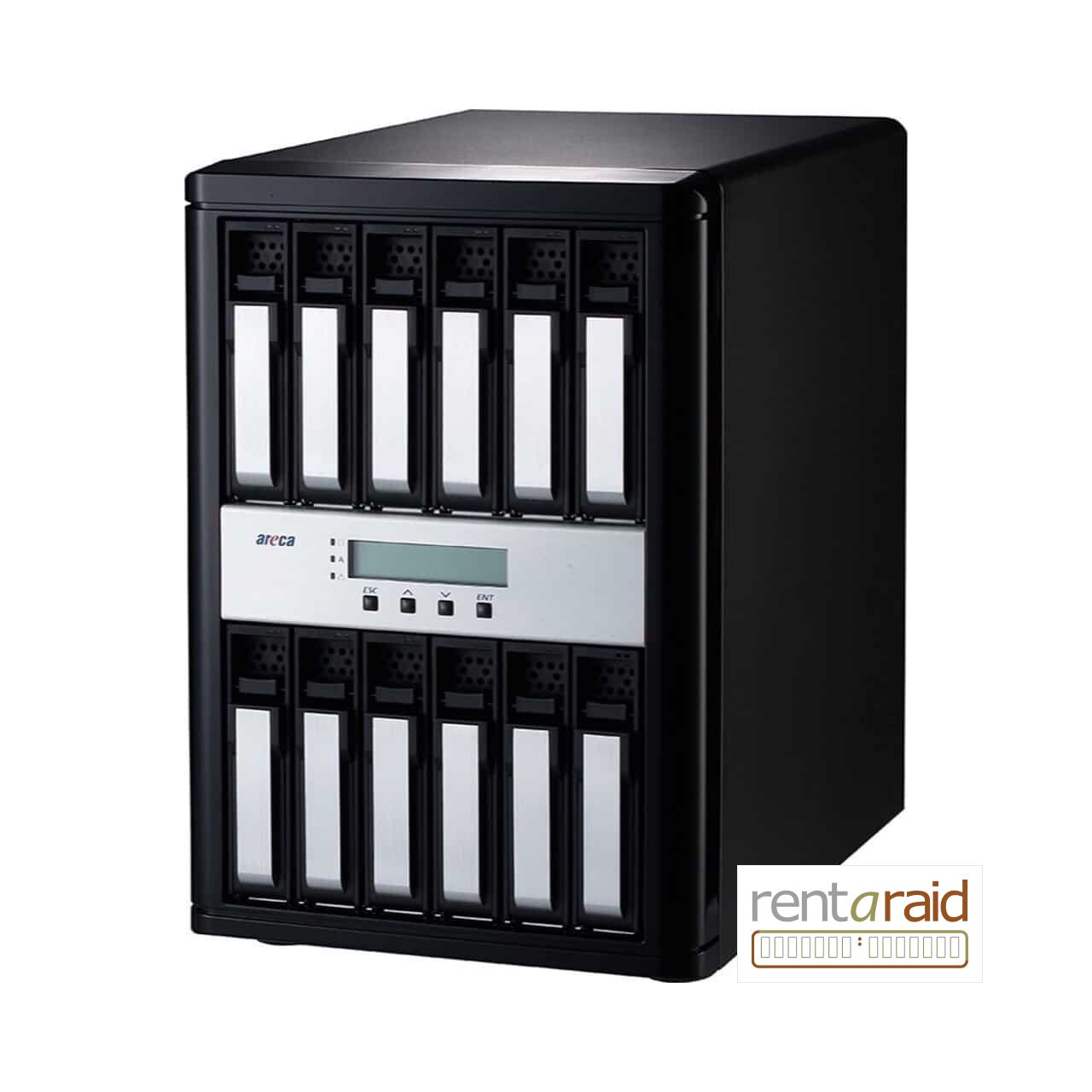

Areca ARC-8050T3U-12E – 360TB

The Areca ARC-8050T3U-12E is a high-capacity desktop RAID storage solution engineered for creative professionals, media production facilities, and data-intensive workflows that demand both speed and reliability.

This 12-bay enclosure combines enterprise-grade hardware RAID control with modern connectivity standards, allowing seamless integration into professional environments where Thunderbolt 3 and USB 3.2 devices coexist. The system delivers unprecedented performance through carefully selected components including a tri-mode dual-core ARM A15 processor, PCIe Gen3 x8 architecture, and 8GB of high-speed DDR4 cache with ECC protection.

Connectivity and Compatibility

The ARC-8050T3U-12E features dual Thunderbolt 3 ports capable of 40 Gbps data transfer speeds, with an additional Thunderbolt 3 port for daisy-chaining peripherals. The system supports both Thunderbolt 3 and USB 3.2 Gen 2 protocols through the same USB-C connector, enabling compatibility with Thunderbolt 3-enabled computers and USB-only systems without requiring separate controllers. A full-sized DisplayPort 1.4 output on the rear panel allows connection of external displays for monitoring and 8K 30Hz video output.

Hardware RAID Control and Data Protection

At the core of the ARC-8050T3U-12E is a true hardware RAID controller based on the Broadcom 12 Gb/s dual-core SAS architecture, delivering independent RAID processing without consuming host system CPU resources. The system supports multiple RAID levels including RAID 0, 1, 10, 3, 5, 6, 30, 50, and 60, as well as Single Disk and JBOD configurations, providing flexibility for various redundancy and performance requirements. Controller-level hardware encryption and support for self-encrypting drives (SED) deliver enterprise-class security for sensitive data.

Performance and Caching Architecture

The tri-mode dual-core ARM A15 processor running at 1.6 GHz, combined with 8GB of DDR4-2666 SDRAM cache, enables smooth multitasking during high-load operations in 4K environments. The on-board cache architecture allows administrators to configure the read/write cache ratio dynamically, optimizing performance for workloads with significantly more reads than writes or vice versa. The peak transfer rate of the DDR4-2666 memory reaches 21.3 GB/s, providing substantial bandwidth for sustained data operations.

Drive Capacity and Configuration

The ARC-8050T3U-12E accommodates up to 12 drives in 3.5-inch or 2.5-inch form factors, supporting both 12 Gb/s SAS and 6 Gb/s SATA hard disk drives and solid-state drives. The 360TB configuration includes 12 pre-installed 30TB drives, providing substantial capacity for large-scale media libraries, archival storage, and collaborative production environments. The system supports simultaneous firmware updates across all installed drives, streamlining maintenance operations.

Thermal Management and Power

Dual 2700 RPM cooling fans exhaust heat from the rear of the enclosure, maintaining optimal operating temperatures during sustained high-performance operations. The system is powered by a 400W power supply, with intelligent power on/off functionality that ensures data integrity during unexpected power events.

Operating System Support and Expansion

The ARC-8050T3U-12E supports macOS 10.12 or later and Windows 8/10 or later via Thunderbolt 3 connectivity, with full compatibility for Apple M1 silicon on Mac computers. Configuration and monitoring can be performed through the Thunderbolt port, LAN port, or integrated LCD interface. The system includes an external MiniSAS HD (SFF-8644) expansion port supporting 4-lane connectivity for additional storage expansion.
