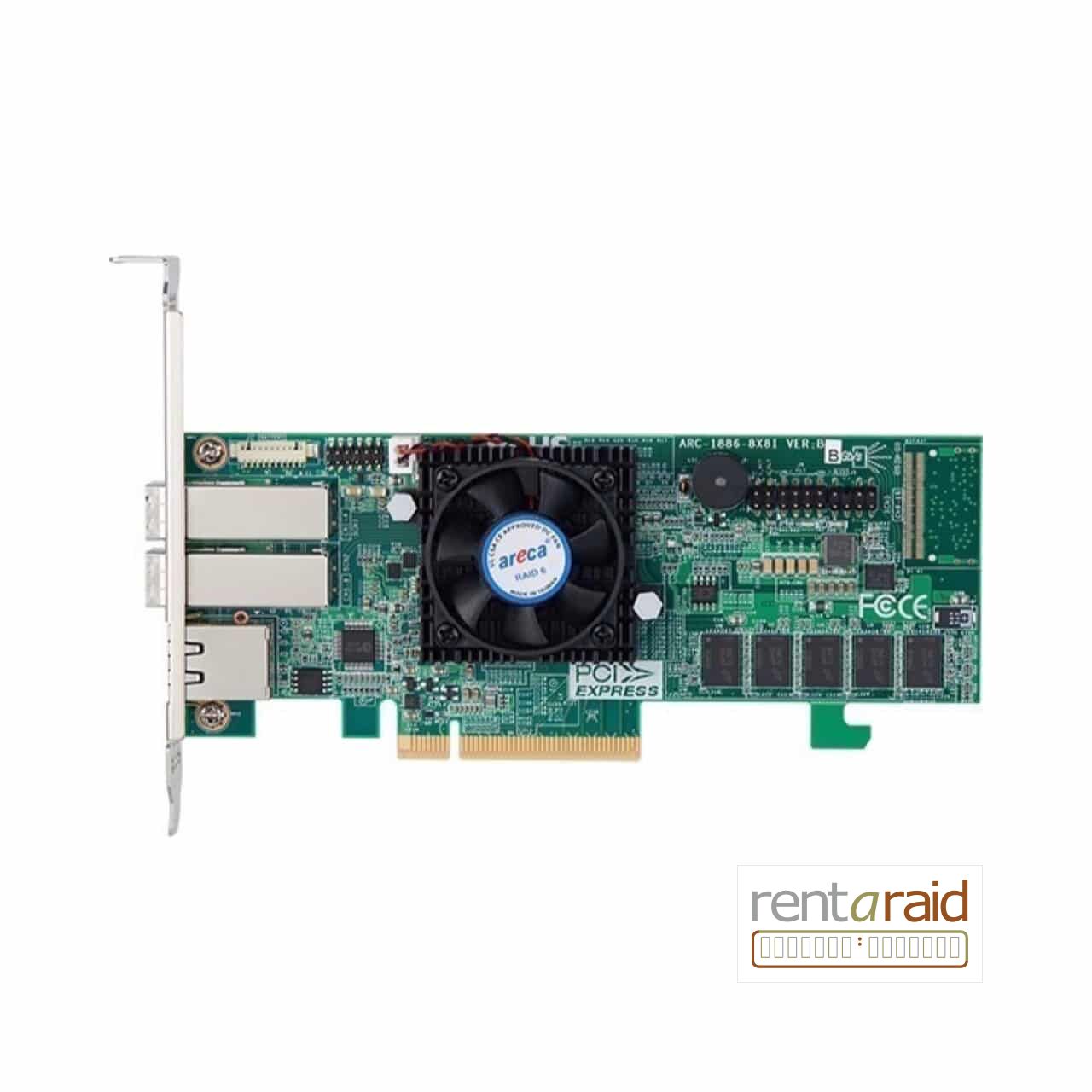

ARC-1886 Series - PCIe Gen 4.0 Tri-Mode RAID Adapters
The new fourth generation ARC-1886 family offers advanced technology for increased performance and improved enterprise data protection.
They were designed with 1.6 GHz dual core ROC processor, DDR4-2666 memory and PCIe 4.0 interface for the most performance-hungry database and IT applications.
Based on the ARM A15 PCIe 4.0 x8 to SAS/SATA/PCIe RAID on Chip (ROC) controller, the ARC-1886 series RAID adapters can offer both PCIe Gen 4.0 host and 12Gb/s SAS/SATA/PCIe (NVMe) tri-mode storage interfaces.
RAID Features
• RAID Levels - 0, 1, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD.
• Multiple RAID 0 and RAID 10(1E) support (RAID 00 and RAID100).
• Support RAID 1 - Multi Mirroring and Mirrored Pass-Through Disk.
• Multiple RAID selection.
• Configurable stripe size up to 1MB.
• Write-through or write-back cache support.
• Support read/write cache allocation by policy.
• Support HDD firmware update.
• Online array roaming.
• Online RAID level/stripe size migration.
• Online capacity expansion and RAID level migration simultaneously.
• Instant availability and background initialization.
• Support global and dedicated hot spare.
• Automatic drive insertion/removal detection and rebuilding.
• Support for native 4K and 512 byte sector SAS and SATA devices.
• Support UNMAP command.
• S.M.A.R.T. support.
• Multiple pairs SSD/HDD disk clone function.
• SSD automatic monitor clone (AMC).
• Controller based hardware encryption function.
• SED (self-encryption drives) function support.
• Support backplanes based on the SFF-TA-1005 specification (UBM).
• Redundant flash image for adapter availability.
• Support intelligent power management to save energy and extend service life.
• Support NTP protocol synchronize RAID adapter clock over the onboard Ethernet port.
Operating Systems
• Microsoft Windows.
• Red Hat Linux, Centos Linux, SUSE Linux, Fedora, Debian Linux, Ubuntu Linux.
• FreeBSD.
• XenServer.
• unRAID.
• macOS.
• VMware ESXi.
