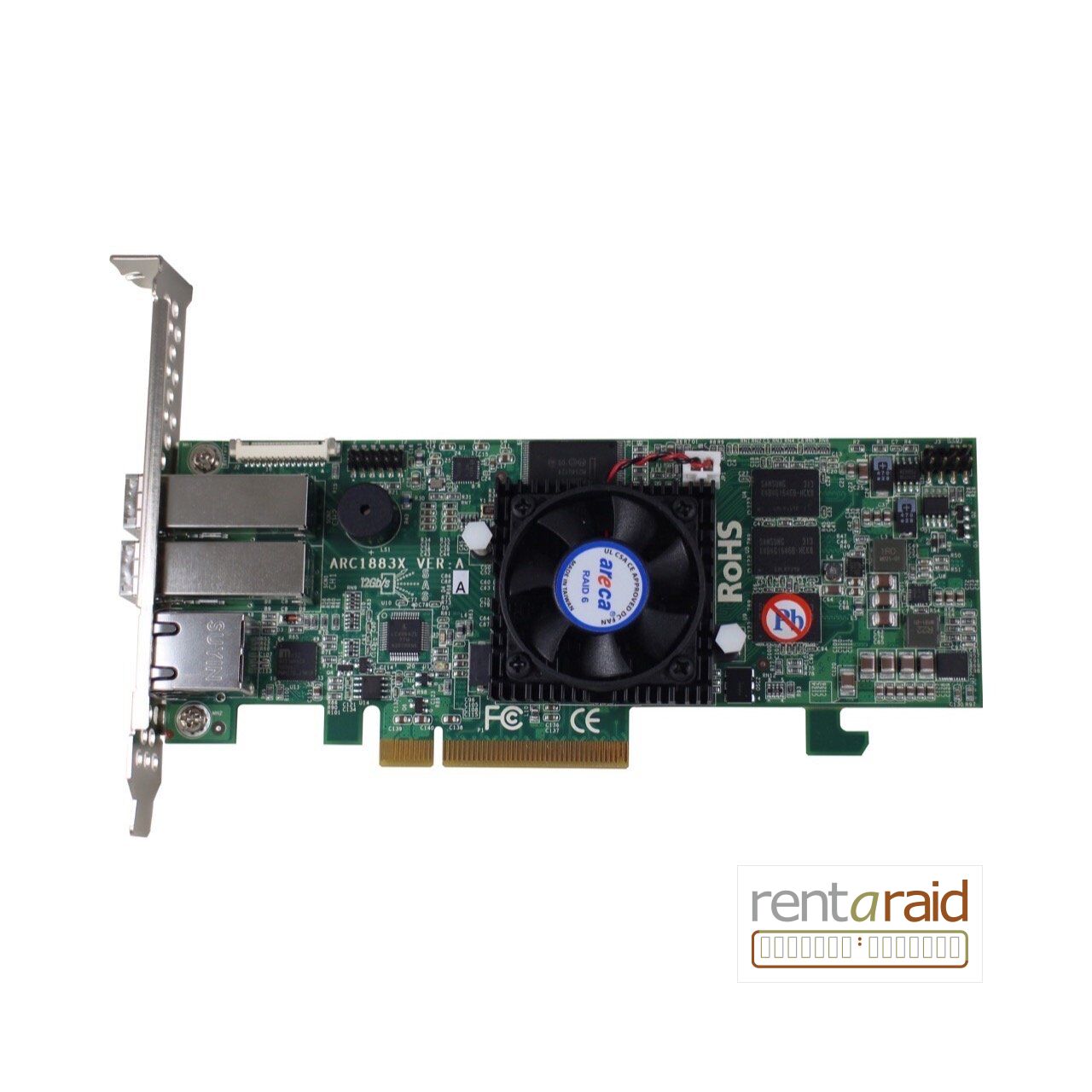

Areca ARC-1883x

8-External Port, Dual Core SAS/SATA PCIe3.0 x8 RAID Adapter Card

• 2 x SFF-8644 miniSAS Connectors.
• Dual Core RAID-on-Chip 1.2 GHz.
• PCIe 3.0 x8 lane host interface.
• 2GB on-board DDR3-1866 SDRAM with ECC.
• RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD.

£ 769.95 | £ 923.94 inc VAT

Please Call Us For An Exact ETA For This Item

Additional Discounts Available For 2 Or More Units.

Please Call Us Free on 0800 6520080 To Discuss.

SKU: areca_arc-1883x
Category: SAS/SATA RAID PCIe Cards
Brand: Areca Technology
We’re the UK’s #1 Areca reseller!

We know, sell and support Areca RAIDs & Controllers better than anyone else in the UK!

All our Areca RAIDs ship pre-configured, tested and benefit from our unrivalled expertise, setup and FREE TECH SUPPORT INCLUDED FOR LIFE!

rentaraid – The UK Areca Experts!

Areca ARC-1883x

The new third generation ARC-1883 family offers advanced technology for increased performance and improved enterprise data protection. .

They were designed with 1.2 GHz dual core ROC processor, DDR3-1866 memory architecture and PCIe 3.0 interface for the most performance-hungry database and IT applications

Technical Specifications
Adapter Architecture • Dual Core RAID-on-Chip (ROC) 1.2GHz processor.
• PCIe 3.0 x8 lane host interface.
• 2GB on-board DDR3-1866 SDRAM with ECC (ARC-1883LP/1883i/1883x).
• One 240-pin DIMM socket for 2GB(default) up to 8GB DDR3-1866, 1Rx8, ECC module or 8GB DDR3-1600, 2Rx8, ECC module (ARC-1883ix series).
• Write-through or write-back cache support.
• Support up to 4/8/12/16/24 internal or 4/8 external 12Gb/s SAS ports.
• Multi-adapter support for large storage requirements.
• BIOS boot array support for greater fault tolerance.
• Supports up to 256 SATA or SAS devices using SAS expanders.
• Boot support for the uEFI host BIOS.
• NVRAM for RAID event & transaction log.
• Redundant flash image for controller availability.
• Flash-based or battery backup module (FBM/BBM) ready (Optional) Model: ARC-1883-BAT/ARC-1883-CAP/ARC-6120BA-T121-12G • RoHS compliant).
RAID Features RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD.
• Multiple RAID 0 and RAID 10(1E) support (RAID 00 and RAID100).
• Multiple RAID selection.
• Configurable stripe size up to 1MB.
• Support HDD firmware update.
• Online array roaming.
• Online RAID level/stripe size migration.
• Online capacity expansion and RAID level migration simultaneously.
• Online volume set growth.
• Instant availability and background initialization.
• Support global and dedicated hot spare.
• Automatic drive insertion/removal detection and rebuilding.
• Support for native 4K and 512 byte sector SAS and SATA devices.
• Support intelligent power management to save energy and extend service life.
• Support NTP protocol synchronize RAID controller clock over the on board Ethernet port.
• Multiple pairs SSD/HDD disk clone function.
• SSD automatic monitor clone (AMC) support.
• Controller level hardware encryption function support.
Monitors/Notification • System status indication through global HDD activity/fault connector, individual activity/fault connector, LCD/I2Cconnector and alarm buzzer.
• SMTP support for email notification.
• SNMP support for remote manager.
• Enclosure management (SES-2, SMP and SGPIO) ready.
RAID Management Field-upgradeable firmware in flash ROM.
In-Band Manager • Hot key "boot-up" McBIOS RAID manager via M/B BIOS.
• Web browser-based McRAID storage manager via ArcHttp proxy server for all operating systems.
• Support Command Line Interface (CLI).
• API library for customer to write monitor utility.
• Single Admin Portal (SAP) monitor utility.
Out-of-Band Manager • Firmware-embedded web browser-based McRAID storage manager, SMTP manager, SNMP agent and Telnet function via Ethernet port.
• API library for customer to write monitor utility.
• Support push button and LCD display panel (optional).
Operating System • Windows 10/8/Server2012/7/2008/Vista/Server 2003/XP.
• Linux.
• FreeBSD.
• VMware ( Driver 6.x support CLI in-band management utility).
• Solaris 10/11 x86/x86_64.
• Mac OS X 10.5.x or Higher (EFI BIOS support).
Environmental Temperature: +5°c to +60°c
Humidity: 10% to 85%, non-condensing
Storage Temperature: -40°c to 70°c
Humidity: 5-90%, non-condensing
